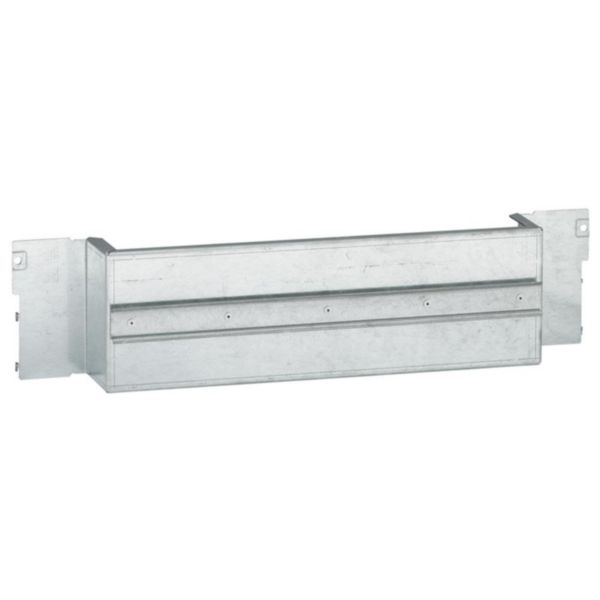

Plate with rail XL³ 800/4000 - for DPX³ in vertical position - 24 modules

LEGRAND

Plate with rail XL³ 800/4000 - for DPX³ in vertical position - 24 modules

REF. 020611 EAN. 3245060206116
XL³ mounting plate for installing switching and protection devices in enclosures, offers direct mounting of DPX³160/250 in vertical position on functional uprights. Its 24-module capacity and 600mm width steel construction ensure robust
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

XL³ mounting plate for installing switching and protection devices in enclosures, offers direct mounting of DPX³160/250 in vertical position on functional uprights. Its 24-module capacity and 600mm width steel construction ensure robust

Product characteristics
  • Equipment for XL³ 4000 - for mounting on fixed plate : DPX³ 160 and DPX³ 250
  • Plates for fixed version DPX³ 160/250 with Front terminals - Direct Fixing on functional up Rights devices in vertical position - 24 modules - Equipped with a rail symmetrical for Fixing DPX³ - The DPX³ must be equipped with a Fixing plate Cat.Nos 4 210 68/69/71/72 or plate for manual supply inverter Cat.No 4 210 58 - Designed for simultaneous mounting of DPX³ 160/250 and modular equipment (with spacer Cat.No 0 262 99)

Technical characteristics

Material Steel
Surface protection Lacquered
Height 300 mm
Width 600 mm
Perforated Yes
Halogen free Yes

Product environmental data

Product carbon footprint
Estimation of the Global Warming Potential (kgCO₂eq) emitted during the Manufacturing phase of the product life cycle according to sector methodology
7.349
Carbon footprint Manufacturing phase (A1-A3) (kg CO2 eq.)

Documentation

1 document
Workshop Book
1 document
Catalogue Commercial Page
ex223001_0385.pdf pdf (0.12 Mo)
6 documents
Agreement
LOVAG-IT 12.073 (0.58 Mo)
Agreement
LOVAG-IT 12.075 (0.58 Mo)
Agreement
LOVAG-IT 12.017 (0.13 Mo)
Agreement
LOVAG-IT 12.067 (0.55 Mo)
Agreement
LOVAG-IT 12.019 (0.59 Mo)
Agreement
LOVAG-IT 12.074 (0.59 Mo)
