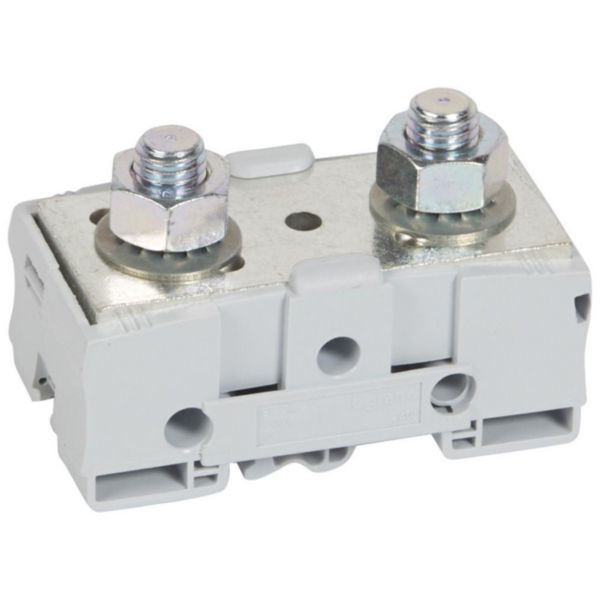

Plate power terminal blocks Viking 3 - for bars/lugs - asym rails -M12 -pitch 46

Name: Plate power terminal blocks Viking 3 - for bars/lugs - asym rails -M12 -pitch 46
SKU: 039034

LEGRAND

REF. 039034 EAN. 3245060390341

Compare You can only compare 4 products, you must remove 1 to add this one

Viking 3 power terminal blocks - Bridging the gap between the enclosure and external cables
Bare power terminal blocks - For copper bars or cable lugs - Insulation dividers and protective covers to be ordered separately - For use with terminal marker sheetsCable lug - cable lug for asymmetrical rails - Fixed using metal clip on rails EN 60715 - Connecting max. : 240 mm² - Pitch : 46 mm

Connectable conductor cross section fine-strand without cable end sleeve	240-240 mm²
Rated voltage	1000 V
Type of electrical connection 1	Bolt connection
Type of electrical connection 2	Bolt connection
Number of levels	1
Number of clamp positions per level	1
Internally connected stages	No
Mounting method	G-rail

Material insulation body	Thermoplastic
Inflammability class of insulation material according to UL94	V2
Operating temperature	-5-40 °C
Width	46 mm
Height	64 mm
Depth	86 mm
Closing plate required	No
Colour	Grey
