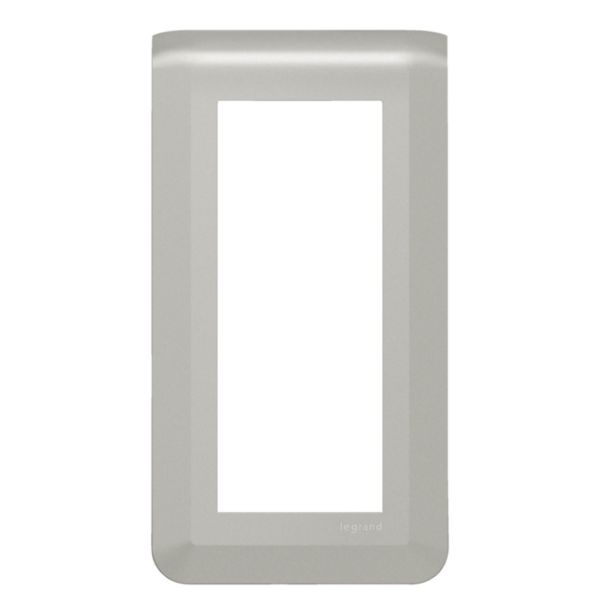

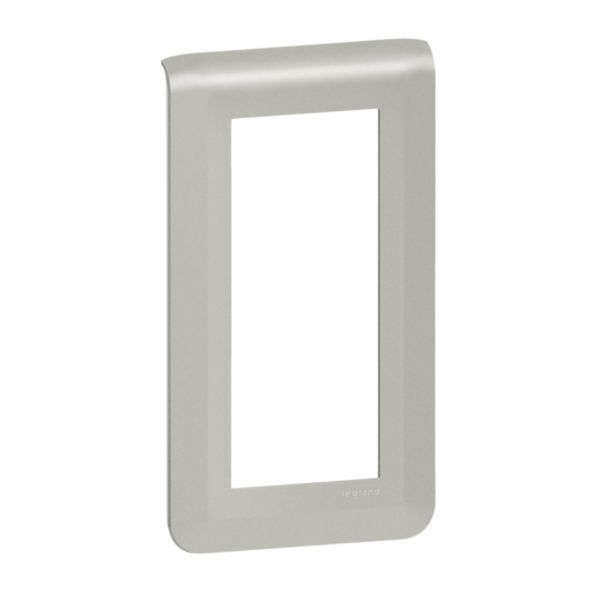

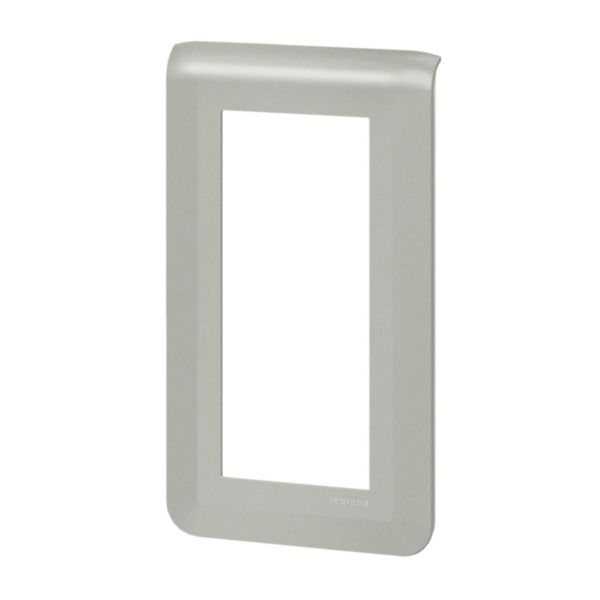

Plate 5 modules vertical mounting alu


Plate 5 modules vertical mounting alu

REF. 079325L EAN. 3414971580268
You can only compare 4 products, you must remove 1 to add this one

Technical characteristics

Number of units 1
Mounting direction Vertical
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 1
Number of modules vertical (module system) 5
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Suitable for built-in installation Yes
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Aluminium
RAL-number (similar) 7040
Transparent No
With hinged lid No
Degree of protection (IP) Other
Degree of impact strength (IK) IK04
Type of fastening Engage (snap)
Width 153 mm
Height 82 mm
Depth 9 mm
Built-in height 0 mm
Operating / setting temperature -5-35 °C
Storage temperature -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable


2 documents
Technical Sheet
F02902EN-01.pdf pdf (0.69 Mo)
Technical Sheet
F02902FR-01.pdf pdf (0.69 Mo)
1 document
Catalogue Commercial Page
ex223001_1202.pdf pdf (0.12 Mo)
6 documents
NF-NF012_2275/A1 (1.04 Mo)
OC / CB-HU-003962 (0.48 Mo)
AENOR-030/002541 (0.36 Mo)
NF-NF012_2201/A2 (1.3 Mo)
