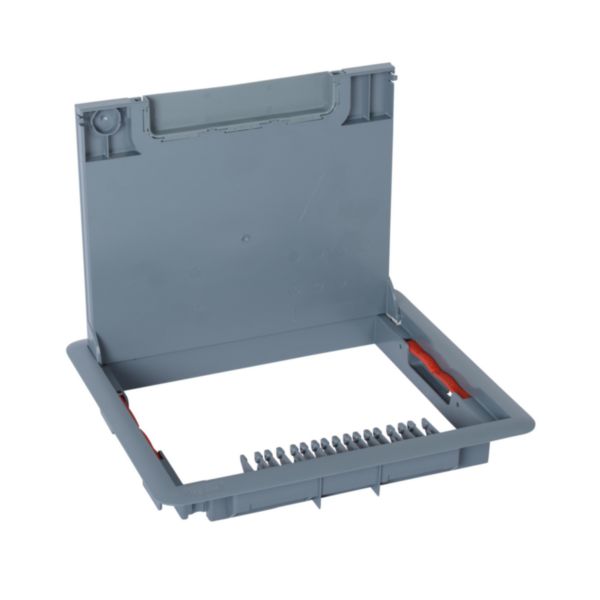

Plastic Lid + Trim of standard floor box for wiring devices supports 12 modules vertical or 18 modules horizontal
-
LEGRAND
Plastic Lid + Trim of standard floor box for wiring devices supports 12 modules vertical or 18 modules horizontal
REF. 088001
EAN.
3414970754943
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Cover model | Rectangular |
|---|---|
| Number of device cups | 1 |
| Housing material | Other |
| Surface protection housing | Other |
| With opening carpeting | Yes |
| Depth of flooring recess | 8 mm |
| Protective frame carpeting | Yes |
| Colour | Grey |
| RAL-number | 7031 |
| Suitable for subfloor duct | No |
|---|---|
| Suitable for hollow floor | Yes |
| Suitable for double floor built-in | Yes |
| Suitable for wet cleaning | Yes |
| Outer width | 241 mm |
| Outer length | 286 mm |
| Length built-in dimension | 264 mm |
| Width built-in dimension | 219 mm |
| Min. built-in depth | 41 mm |
Documentation
5 documents
Technical Sheet
Technical Sheet
Instruction Use
Technical Sheet
Technical Sheet
1 document
3D Autocad
1 document
PEP
