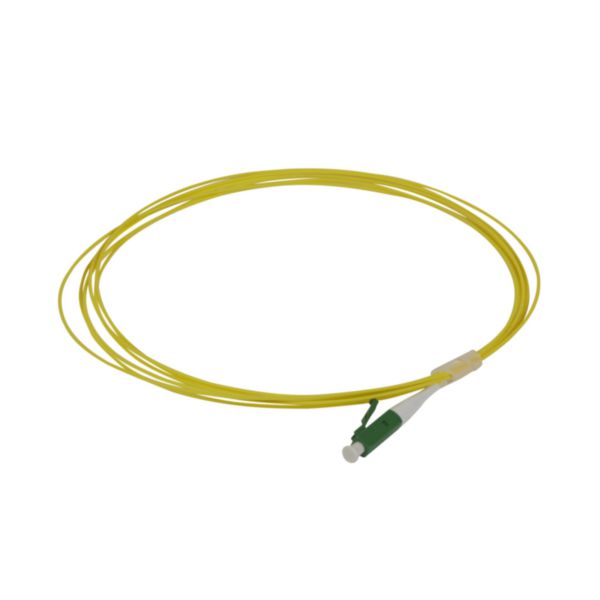

Pigtail 9/125µm LC APC OS2 2m LSZH

LCS³ LEGRAND

Pigtail 9/125µm LC APC OS2 2m LSZH

REF. 032248 EAN. 3414970963536

Singlemode pigtails are used in telecommunication, data transmission, mainland high-speed and access networks. OS2 singlemode pigtails are terminated with standard connectors to obtain optimum optical performance.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Singlemode pigtails are used in telecommunication, data transmission, mainland high-speed and access networks. OS2 singlemode pigtails are terminated with standard connectors to obtain optimum optical performance.

Product characteristics
  • OS2 Singlemode
  • LC - APC connector
  • 2 meters length
  • Yellow outer sheath
  • Low smoke zero halogen (LSZH) sleeve and connectors
Recommendation / Restriction
  • OS2 fibre conforms to ITU-G652.D standards

The product's benefits

Installation
  • Easy strip for installation on site
Usage
  • Reliable and efficient. Typical / master = 0,18 dB

Technical characteristics

Fibre type Single mode
Category OS2
Type Cable pigtail
Core type Tight
Length 2 m
Type of connector LC
APC-version Yes
Colour Green
Anti-kink sleeve Put-on

Documentation

2 documents
Technical Sheet
S000082752EN-04.pdf pdf (0.93 Mo)
Technical Sheet
S000082752FR-04.pdf pdf (0.96 Mo)
1 document
Catalogue Commercial Page
ex223001_1003.pdf pdf (0.12 Mo)
2 documents
PEP
LGRP-00921-V02.01-FR.pdf pdf (1.16 Mo)
PEP
LGRP-00921-V02.01-EN.pdf pdf (1.19 Mo)
