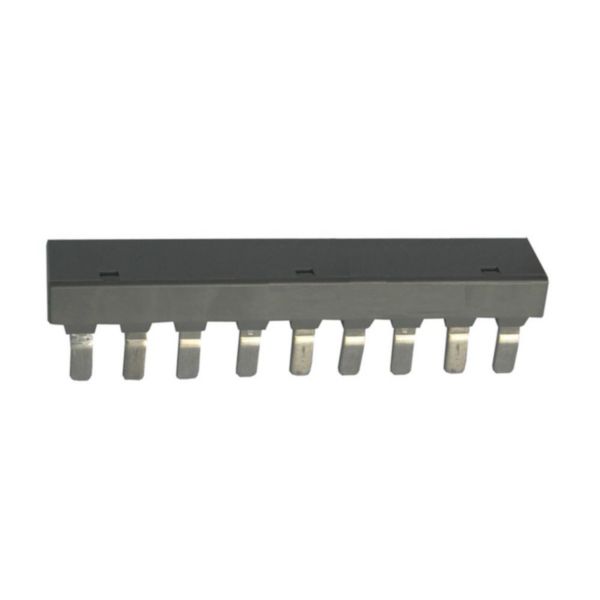

Phase busbar MPX3 63H breakers

Name: Phase busbar MPX3 63H breakers
SKU: 417474

MPX³ LEGRAND

REF. 417474 EAN. 3414970397355

Compare You can only compare 4 products, you must remove 1 to add this one

Product specially designed for tertiary and industrial installations. Read the instructions before installing this product.

Number of phases	9
Number of poles	9
Suitable for number of devices	3
Module width	18.3 mm
Length	165 mm
Width in number of modular spacings	8
Rated permanent current Iu	108 A

Type of electric connection	Pin
Insulated	Yes
Max. rated operation voltage Ue	690 V
Suitable for devices with N-conductor	No
Suitable for devices with auxiliary switch	No
Colour	Grey
