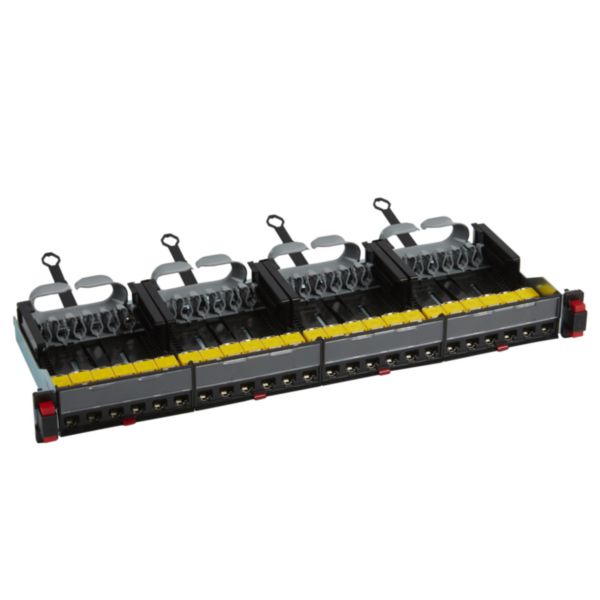

Patch panel 19 inch - equipped with 24 RJ45 Category 6A UTP


Patch panel 19 inch - equipped with 24 RJ45 Category 6A UTP

REF. 033770 EAN. 3414970870681
You can only compare 4 products, you must remove 1 to add this one

Technical characteristics

Number of buses/couplings 24
Suitable for number of connectors 24
Type of connector RJ45 8(8)
Screened No
Category 6A (IEC)
Connection type Insulation displacement connector
Number of height units 1
Colour Black
RAL-number 9017
Mounting method 482.6 mm (19 inch) mounting
Height 43.85 mm
Width 482.5 mm
Depth 321.7 mm
Degree of impact strength (IK) IK03
Operating / setting temperature -25-70 °C
Storage temperature -40-70 °C
Terminal marking indication Yes
Prewired No
Cable nature for connection Flexible or rigid
Label space/information surface Yes
Cable support With zigzag
