Patch panel 10 inch - to be equipped with 12 RJ45

LCS³ LEGRAND

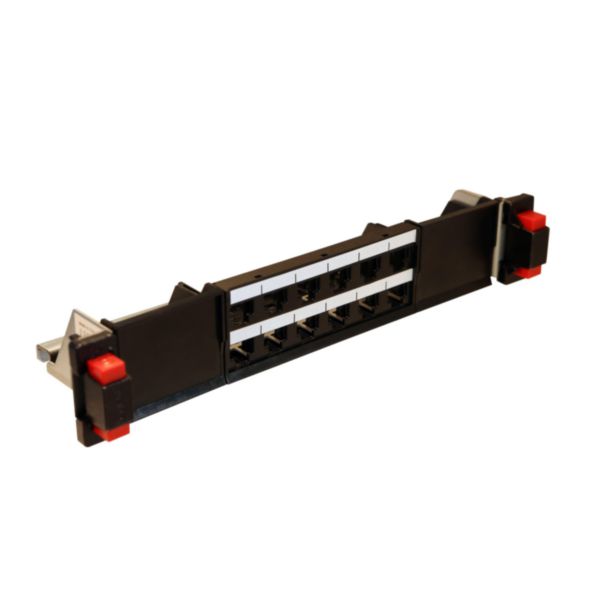

Patch panel 10 inch - to be equipped with 12 RJ45

REF. 033799 EAN. 3414971464445

This 10 inch patch panel is ideal for small-scale commercial applications where there is a limited number of IT points and a 10’’ cabinet is sufficient. It accepts up to 12 RJ45 connectors, from Cat. 5e to Cat. 6A.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

This 10 inch patch panel is ideal for small-scale commercial applications where there is a limited number of IT points and a 10’’ cabinet is sufficient. It accepts up to 12 RJ45 connectors, from Cat. 5e to Cat. 6A.

Product characteristics
  • 10" panel - 1 U.
  • Automatic earth connection
  • Supplied with coloured labels (white yellow, blue and red).

The product's benefits

Installation
  • Ease and reliability for installation and maintenance thanks to fast-snap accessibility of each individual connector. Universal and secured mounting on any 10'' cabinet through new generation quick-fix anchorage.
Usage
  • Daily user maintenance is rendered easy through the move-add-change management of each individual connector.
Avantages
  • Save time at both installation and in daily maintenance by taking advantage of the screwless mounting.

Technical characteristics

Number of buses/couplings 0
Suitable for number of connectors 12
Type of connector RJ45 8(8)
Screened Yes
Category Other
Connection type Insulation displacement connector
Number of height units 1
Colour Black
RAL-number 9017
Mounting method 254 mm (10 inch) mounting
Height 43.8 mm
Width 254 mm
Depth 88 mm
degree of impact strength (IK) IK03
Degree of protection (IP) Not applicable
Operating / setting temperature -10-65 °C
Storage temperature -25-70 °C
Terminal marking indication No
Prewired No
Cable nature for connection Flexible or rigid
Label space/information surface Yes
Cable support With zigzag
