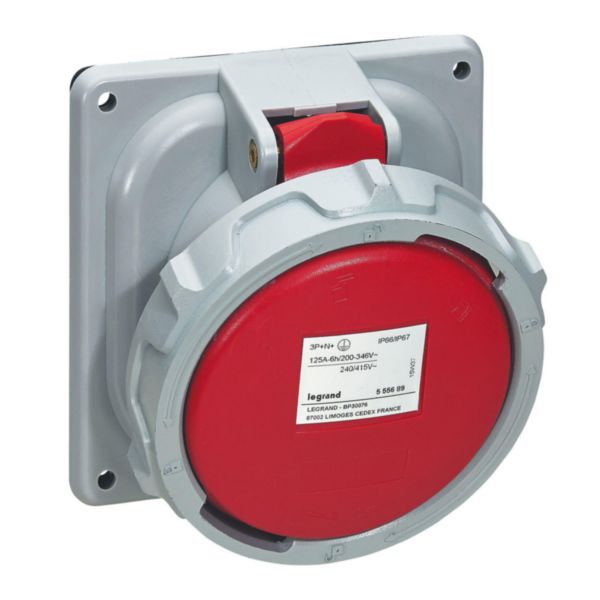

Panel mounting socket P17 Pro - IP66/67 - 380/415 V~ - 125 A - 3P+N+E

P 17 Tempra LEGRAND

Panel mounting socket P17 Pro - IP66/67 - 380/415 V~ - 125 A - 3P+N+E

REF. 555689 EAN. 3414970735157
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • P 17 Tempra Pro IP 66/67 LV 63 and 125 A Panel mounting sockets - Can be fixed on the faceplates Cat.Nos 0 577 17/19380/415 V~ - 125 A - 3P+N+E
Recommendation / Restriction
  • Not suitable for charging electric vehicles

Technical characteristics

IEC-amperage 125 A
Voltage according to EN 60309-2 400 V (50+60 Hz) red
Number of poles 5
Clock hour position 6 h
Identification colour Red
Degree of protection (IP) IP67
Connection system Screwed terminal
Insert direction Straight
Material Plastic
Military model No
Flange size vertical 146 mm
Drill hole distance vertical 124 mm
Flange size horizontal 146 mm
Drill hole distance horizontal 124 mm
