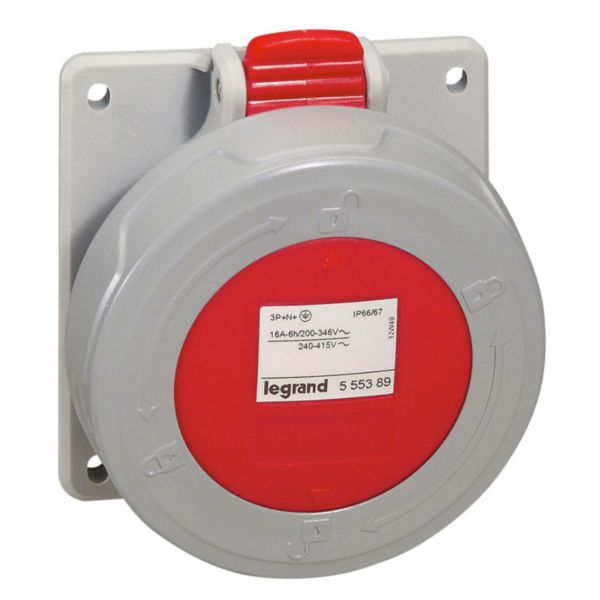

Panel mounting socket P17 - IP66/67 - 380/415 V~ - 16 A - 3P+N+E
P 17 Tempra
LEGRAND
Panel mounting socket P17 - IP66/67 - 380/415 V~ - 16 A - 3P+N+E
REF. 555389
EAN.
3245065553895
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| IEC-amperage | 16 A |
|---|---|
| Voltage according to EN 60309-2 | 400 V (50+60 Hz) red |
| Number of poles | 5 |
| Clock hour position | 6 h |
| Identification colour | Red |
| Degree of protection (IP) | IP67 |
| Connection system | Screwed terminal |
| Insert direction | Straight |
|---|---|
| Material | Plastic |
| Military model | No |
| Flange size vertical | 84 mm |
| Drill hole distance vertical | 70 mm |
| Flange size horizontal | 84 mm |
| Drill hole distance horizontal | 70 mm |
