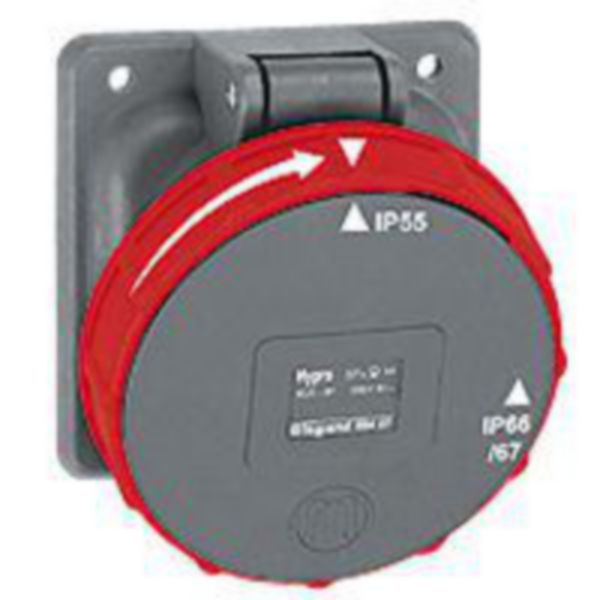

Panel mounting socket Hypra - IP 66/67-55 - 380/415 V~ - 125 A - 3P+E - plastic
Hypra
LEGRAND
Panel mounting socket Hypra - IP 66/67-55 - 380/415 V~ - 125 A - 3P+E - plastic
REF. 059512
EAN.
3245060595128
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| IEC-amperage | 125 A |
|---|---|
| Voltage according to EN 60309-2 | 400 V (50+60 Hz) red |
| Number of poles | 4 |
| Clock hour position | 6 h |
| Identification colour | Red |
| Degree of protection (IP) | IP67 |
| Connection system | Screwed terminal |
| Insert direction | Straight |
|---|---|
| Material | Plastic |
| Military model | No |
| Flange size vertical | 146 mm |
| Drill hole distance vertical | 124 mm |
| Flange size horizontal | 146 mm |
| Drill hole distance horizontal | 124 mm |
