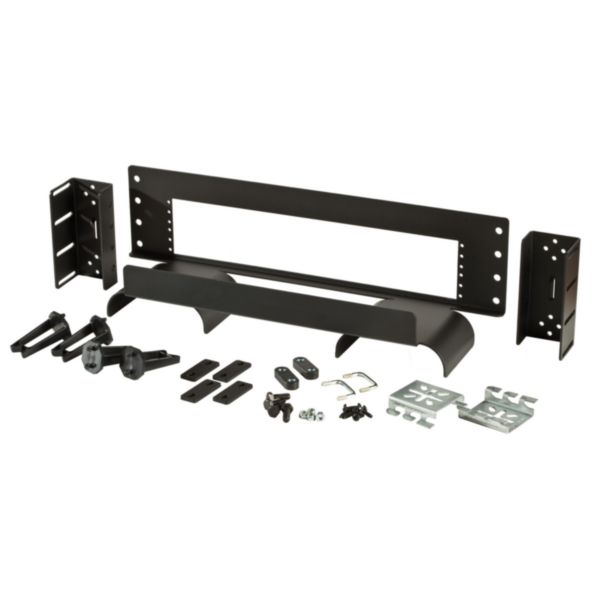

Overhead cable pathway 5U 19 inches

LCS³ LEGRAND

Overhead cable pathway 5U 19 inches

REF. 446160 EAN. 3414971173767

Overhead rack to support additional rack space above existing racks or cabinets.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Overhead rack to support additional rack space above existing racks or cabinets.

Product characteristics
  • Includes a 3 piece waterfall to elegantly route cables down to the lower racks.
  • No frame assembly required
  • Lightweight, easy to install.
  • Optional cable management rings
  • Steel, colour black

The product's benefits

Installation
  • Easily installs to wire cable tray, tubular runway, or threaded rod. The racks are fully assembled and bonded as packaged.
Usage
  • Interchangeable easy clip Cablofil and Tubular Runway brackets.

Technical characteristics

Mounting level Front and rear
Model With permanent frame
Type of profile rail L-shape
Number of doors 0
Type of ventilation None
Width 254 mm
Height 1981.2 mm
Depth 385 mm
Modular spacing 482.6 mm (19 inch)
Number of height units 5
Max. load capacity 29 kg
With roof plate No
With front door No
With sidewall No
Demountable Yes
Material Aluminium
Surface finishing Powder coating
Colour Black
Degree of protection (IP) IP00
Degree of protection (NEMA) Other
degree of impact strength (IK) Not applicable
Fitted with door or cover No

Documentation

1 document
Technical Sheet
1 document
Catalogue Commercial Page
ex223001_1014.pdf pdf (0.38 Mo)
