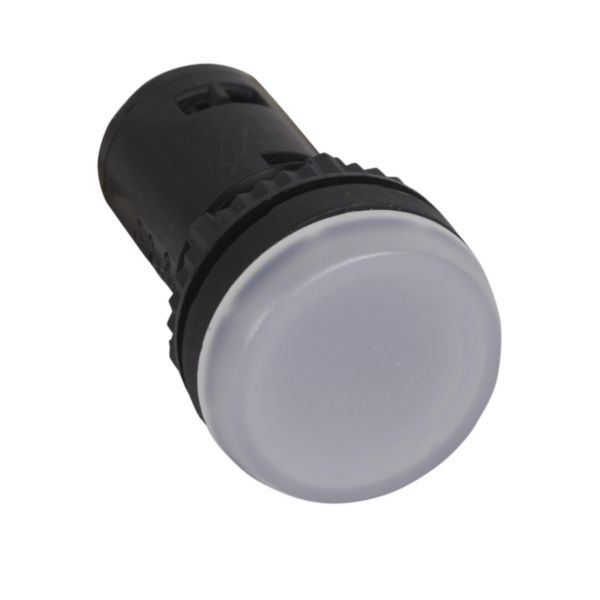

Name: Osmoz one-piece pilot light with integrated LED to be used without electrical block - white 230 V~
SKU: 024610

Osmoz one-piece pilot light with integrated LED to be used without electrical block - white 230 V~

Osmoz LEGRAND

Osmoz one-piece pilot light with integrated LED to be used without electrical block - white 230 V~

REF. 024610 EAN. 3414970863881

Compare You can only compare 4 products, you must remove 1 to add this one

Osmoz control and signalling units : illuminated heads - Supplied with a Fixing ring - IP 66, IP 69K - Conform to IEC 60947 - 5 - 1
One - piece pilot lights - To be used without electrical block With integrated Led - 230 V~ - White

Number of indicator lights	1
Colour lens	Colourless
Type of lamp socket	LED
With light source	Yes
Rated operating voltage Ue (Min-Max)	195.5-264.5 V
Voltage type	AC
Type of electric connection	Screw connection
Construction type lens	Round
Type of lens	Flat

Hole diameter	22 mm
With front ring	No
Material front ring	Plastic
Colour front ring	Black
Degree of protection (IP)	IP66
degree of impact strength (IK)	IK05
Operating / setting temperature (Min-Max)	-25-70 °C
Storage temperature (Min-Max)	-40-70 °C
Estimated bulb life	100000 h

Osmoz one-piece pilot light with integrated LED to be used without electrical block - white 230 V~
