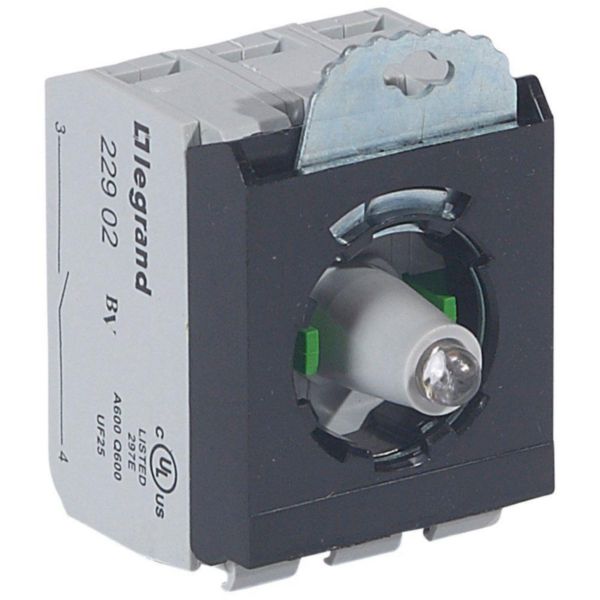

Osmoz block sub-assemblies - for Illuminated head - 2 NO - white - 12-24 V~/=

Name: Osmoz block sub-assemblies - for Illuminated head - 2 NO - white - 12-24 V~/=
SKU: 023006

Osmoz LEGRAND

REF. 023006 EAN. 3245060230067

Compare You can only compare 4 products, you must remove 1 to add this one

Osmoz control and signalling units : block sub - assemblies - Clip and screw electrical blocks assembled - Conform to IEC 60947 - 5 - 1
For illuminated headsScrew terminals - With 3 position clip - 12 - 24 V~/= - 2 NO - White

Transformer integrated	No
With integrated voltage decreasing resistor	Yes
With light source	Yes
With integrated diode	Yes
Lamp holder	None
Rated voltage Ue at AC 50 Hz	10.8-26.4 V
Rated voltage Ue at AC 60 Hz	10.8-26.4 V

Rated voltage Ue at DC	10.8-26.4 V
Voltage type for actuating	AC/DC
Lamp type	LED
Connection type auxiliary circuit	Screw connection
Colour light source	White
Type of fastening	Front fastening
