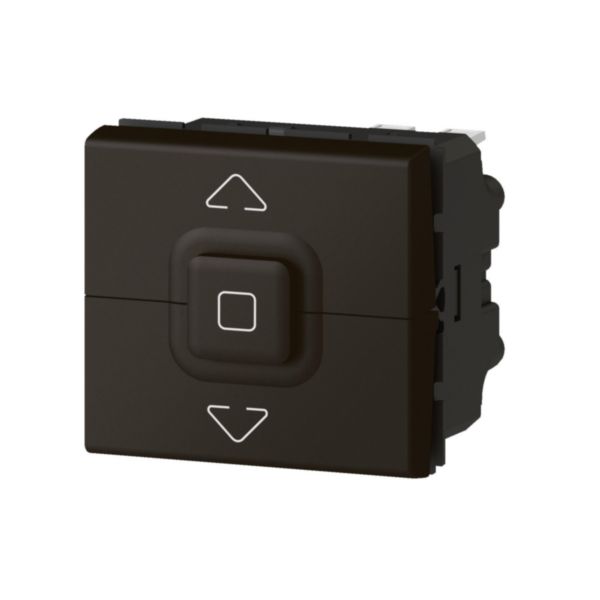

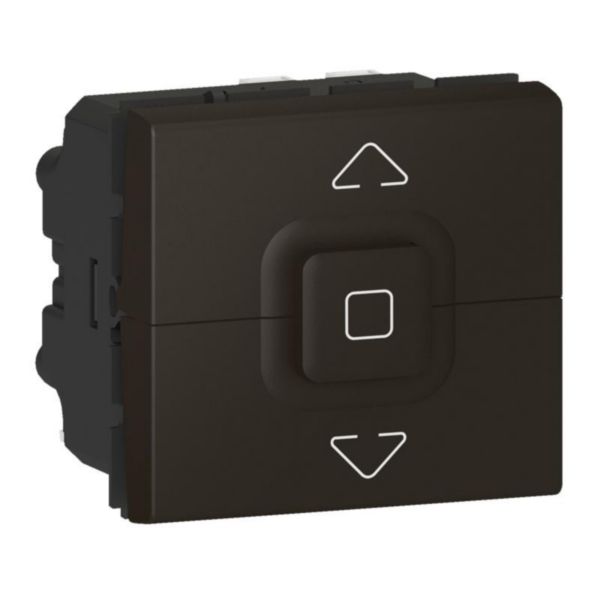

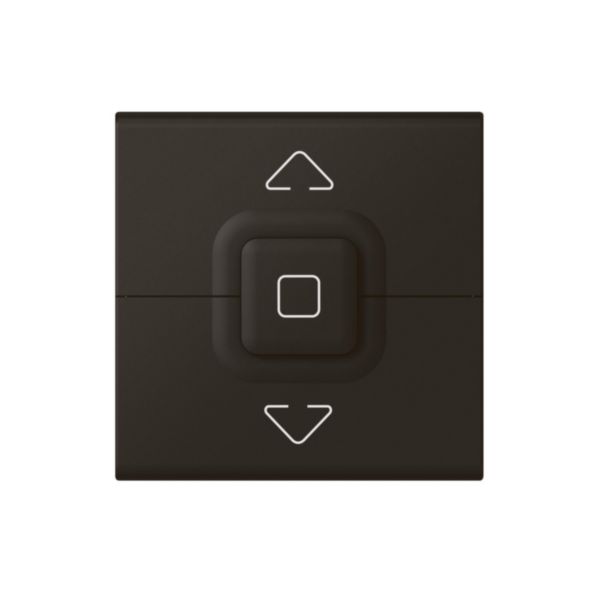

One way switch for shutters mat black
LEGRAND
One way switch for shutters mat black
REF. 079126L
EAN.
3414971739642
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Assembly arrangement | Basic element |
|---|---|
| Model | 1-pole switch |
| Number of poles | 1 |
| Method of operation | Other |
| Mechanical controllable | No |
| Electronic controllable | No |
| Mounting method | Module frame |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Type of fastening | Other |
| Connection type | Push-in clamp |
| Colour | Black |
| Transparent | No |
| Label space/information surface | Yes |
| Suitable for degree of protection (IP) | IP41 |
| Rated current | 6 A |
| Nominal voltage | 250 V |
| Number of buttons | 3 |
|---|---|
| Number of modules (module system) | 2 |
| Device width | 45 mm |
| Device height | 45 mm |
| Device depth | 36 mm |
| Built-in depth | 24 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Degree of impact strength (IK) | IK04 |
| Operating / setting temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| Voltage type | AC/DC |
| Frequency | 50-60 Hz |
| Antimicrobial treatment | No |
| Terminals capacity | 2.5-2.5 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 2.5-2.5 mm² |
