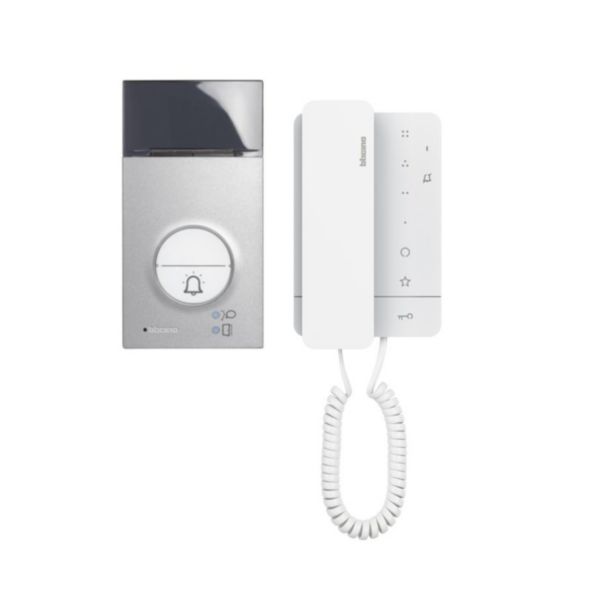

One-family audio kit with Classe 100A16M audio internal unit and LINEA 3000

Name: One-family audio kit with Classe 100A16M audio internal unit and LINEA 3000
SKU: BT-364231

Classe 100 Bticino

REF. BT-364231 EAN. 8005543631089

Compare You can only compare 4 products, you must remove 1 to add this one

Wall surface installation with possibility of table mounting with table Accessory
Main functions : call answering and door opening
Intercom, staircase light, secondary door lock activation and professional studio function
Volume and image settings
Alimention par BUS/SCS 18-27 Vcc

Conceived to simplify installation. Immediate replacement of any 2-wire Bticino door entry system without additional work

With video	No
Number of indoor stations	1
Number of outdoor stations	1
Installation technique	Bus system
Mounting method indoor station	Surface mounted
Colour indoor station	White
Mounting method outdoor station	Surface mounted
Material outdoor station	Aluminium
Colour outdoor station	Grey
Expandable to max. number of indoor stations	2
Expandable to max. number of outdoor stations	16
Picture system	PAL
Can be connected to smartphone	No
Internal communication	No
Hands free	No
With day/night function	Yes
Zoom, pan/tilt function	No
With memory function	No
Manual adjustable camera	No
Label space/information surface	Yes
Hearing aid compatible	Yes
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
Width	102 mm
Height	169 mm
Depth	30 mm
degree of impact strength (IK)	IK10
Degree of protection (IP)	IP30
Operating / setting temperature (Min-Max)	5-45 °C
Storage temperature (Min-Max)	-10-70 °C
Voltage type	DC
Nominal voltage (Min-Max)	18-27 V

Supply current (Min-Max)	0.005-0.05 A
Frequency (Min-Max)	0-0 Hz
Sound level	82 dB
Standby consumption	5 mA
Halogen free	No
Antimicrobial treatment	No
Cable nature for connection	Flexible or rigid
Cable section (Min-Max)	0.1-2.5 mm²
Fitted with USB plug	No
Fitted with rainproof plate protection	No
With complemantary luminous signal	No
Mounting method	Supporting bracket
Vertical fixing center distance (Min-Max)	60-85 mm
Horizontal fixing center distance (Min-Max)	60-115 mm
Control mode	Wired
Contains Batteries and/or Accumulator	No
Additional unit	Yes
Loudness setting	Yes
Addressable	Yes
Door entry system with mobile application	No
Number of ringtones	16
Remote opening of gate / Electric door opener	Yes
Screen resolution	Not applicable
Screen brightness setting	No
Screen contrast setting	No
Memory video function	No
Camera type	Not applicable
Max distance between internal and external unit	600 m
Communication rank type	Other
IEC code (Pack1)	Not applicable
Battery ou Accumulator (Pack1)	Not applicable
Element Composition (Pack1)	Not applicable
Connected object	No
