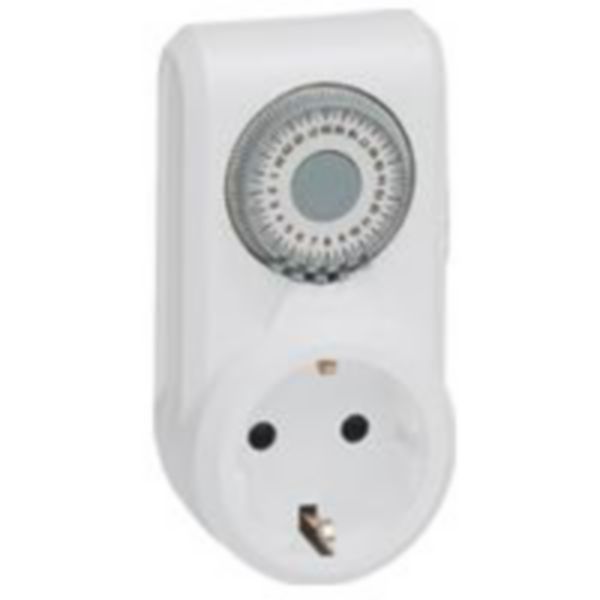

OmniRex T-Plug-in time switch-24-hour programme-German standard-switching step 15 min

LEGRAND

OmniRex T-Plug-in time switch-24-hour programme-German standard-switching step 15 min

REF. 699811 EAN. 3245066998114
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Analogue time switches - Power supply 230 V~ - Override switching "ON" or "OFF" in front face - 1 output via changeover contact - (2 changeover contacts for Cat.No 0 499 26)
  • OmniRex - Plug - In =ime switches - Manuel switch ON - Auto - With 2P+T plug and 10/16 A socket base and 16 A socket - With child protection - Override/manual switch - Mains hold accuracy - Synchronous motor, 230 V, 50 Hz - 1 contact NO 250 V/50 Hz, 16 A~ cos Ï = 1 OmniRex T - 24 - hour programme - German standard - With child protection - Switching step 15 min - Mini switching time 15 min - Switching accuracy ± 5 mIn = - German standard - With child protection - Switching step 15 min - Mini switching time 15 min - Switching accuracy - 5 min

Technical characteristics

Mounting method Adaptor plug with socket outlet
Type of socket outlet Socket outlet with protective contact CEE 7/3 (type F)
Supply voltage (Min-Max) 230-230 V
Voltage type (supply voltage) AC
Frequency supply voltage (Min-Max) 50-50 Hz
Type of drive Mains synchronous
Model Analogue
Accuracy per day 0 s
Nominal switching current at 230 V AC 16 A
Type of clock Day clock
Shortest switching time 15 min
Autonomy in hours 0
Autonomy in years 0
Automatic switching summer/winter time No
Degree of protection (IP) IP20
Width 55 mm
Height 108.5 mm
Depth 39.5 mm
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) 0-40 °C
Storage temperature (Min-Max) -10-60 °C
Colour White
Halogen free Yes
Connected object No
