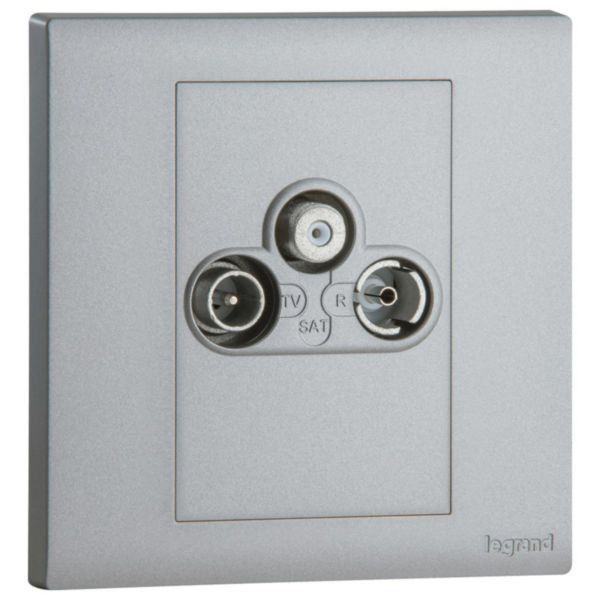

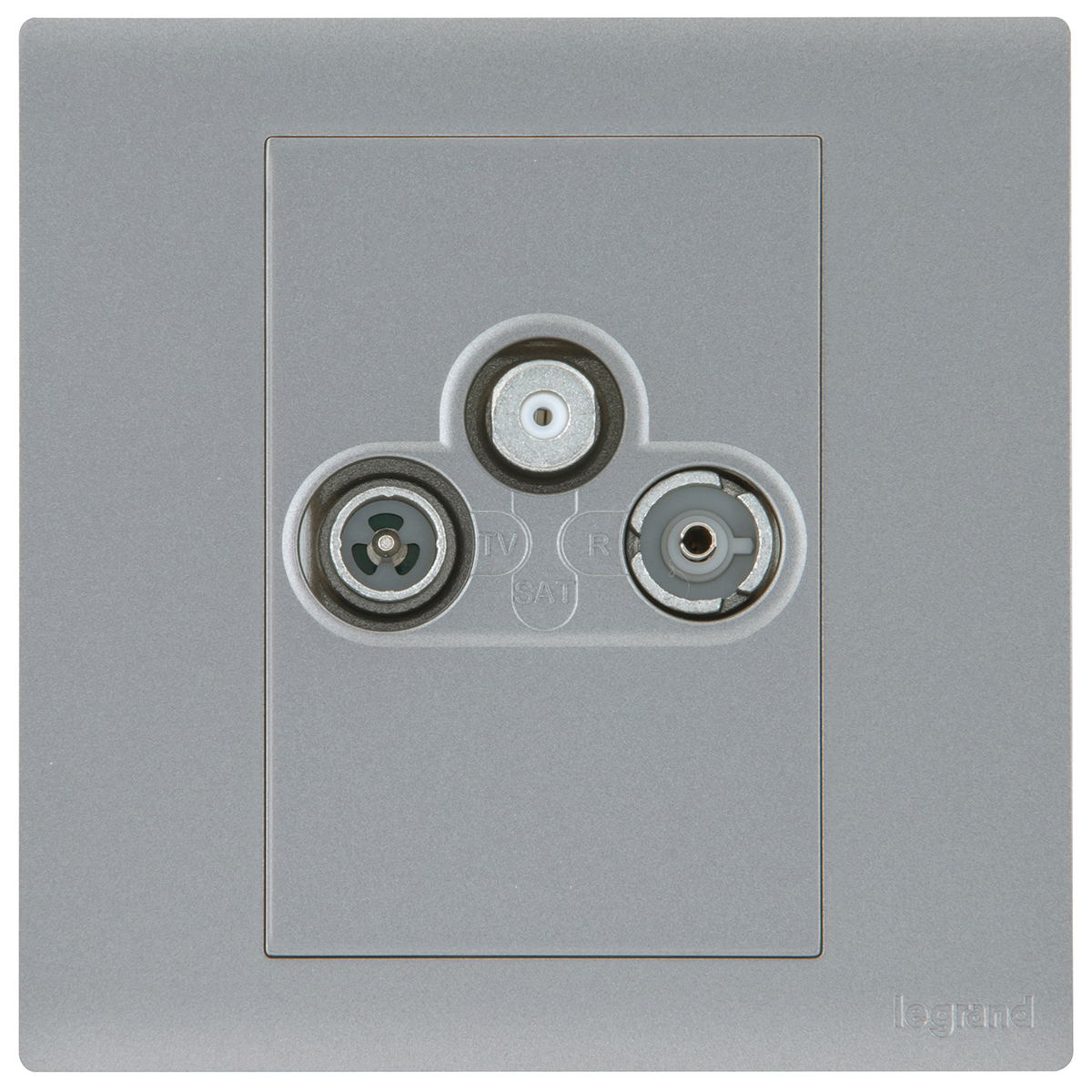

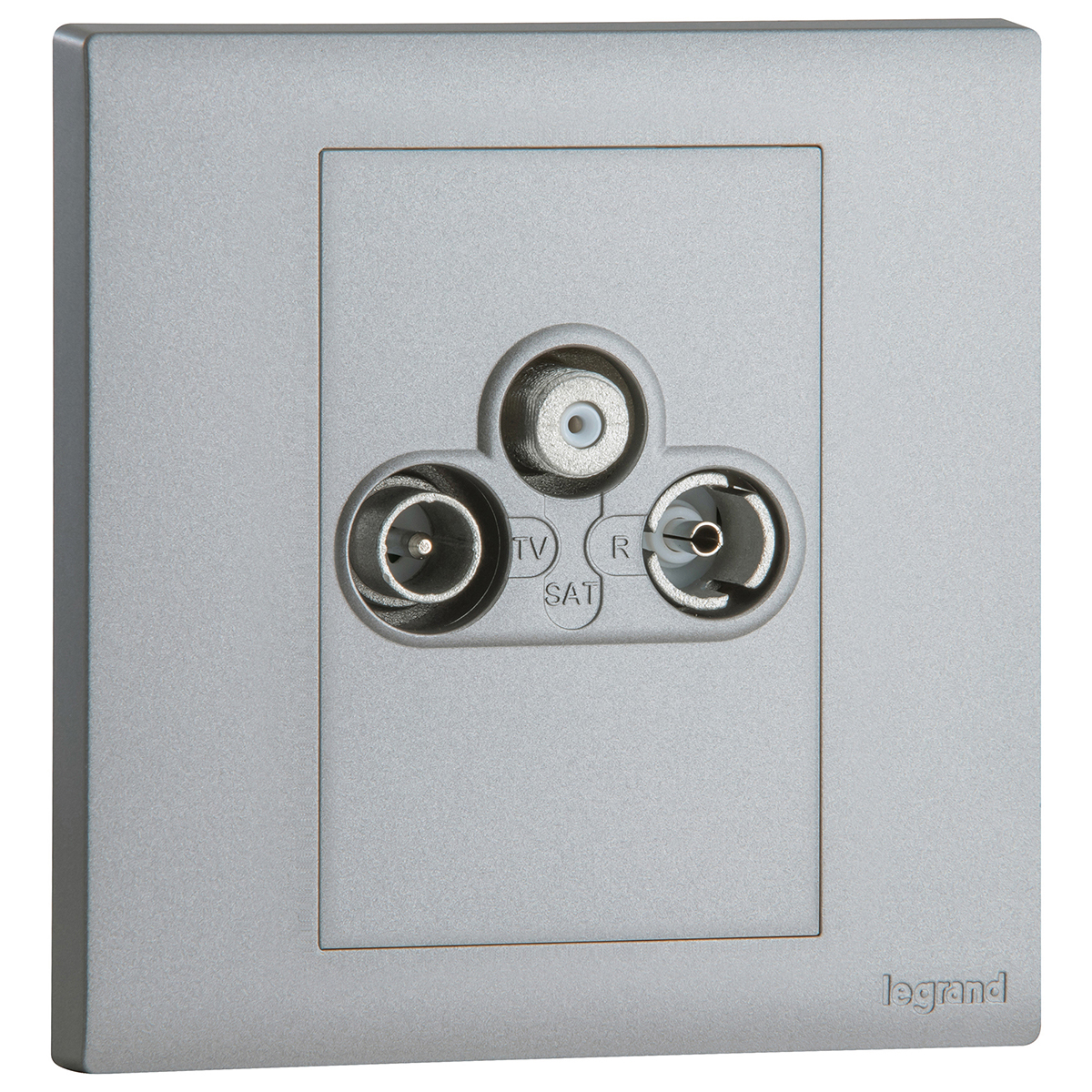

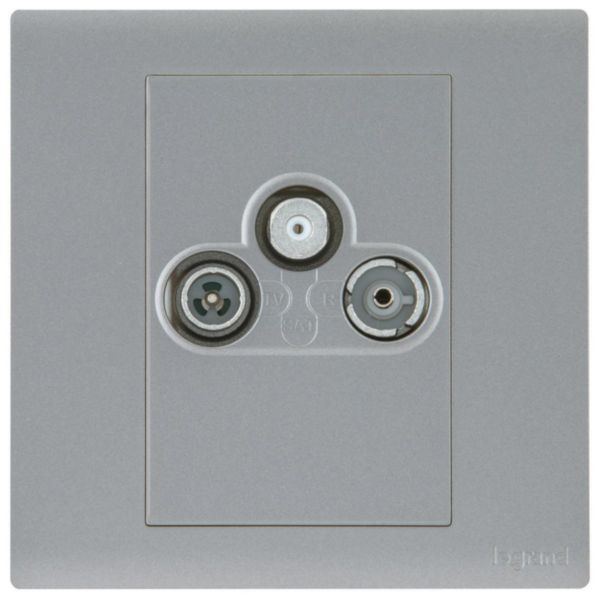

Obria Tv + R + Sat - Dark Silver

Obria Legrand

Obria Tv + R + Sat - Dark Silver

REF. MEC41067SL EAN. 3414972675239

Allows to connect all types of televisions, DVBT, SAT, CATV

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Allows to connect all types of televisions, DVBT, SAT, CATV

Product characteristics
  • Sold as a complete set under one cat number
  • TV 9,5mm Male, Radio 9,5mm Female, SAT with Type F screw connector
  • LTE protected class A level / Attenuation loss < 1,5 dB
  • Dark Silver Finish
  • Conform to EN-50083-4 & EN-50083-2
Recommendation / Restriction
  • Recommended inside use only

The product's benefits

Installation
  • Visual check of the connection. Secured screw connection.
Usage
  • Limited cable bend radius that lower attenuation losses
Avantages
  • Low attenuation socket
  • Modern full plate design for a perfect decoration integration
  • Fully protected against EMC perturbances (=3G, 4G, 5G… risk of image pixelation)

Technical characteristics

Model End socket
Type of socket outlet TV/RD/SAT
Mounting method Flush-mounted
Number of modules (module system) 2
Assembly arrangement Basic element with central cover plate
Tap loss at 860 MHz 1.5 dB
Suitable for remote power supply No
Radio frequency band (Min-Max) 87.5-108 MHz
SAT frequency band (Min-Max) 950-2400 MHz

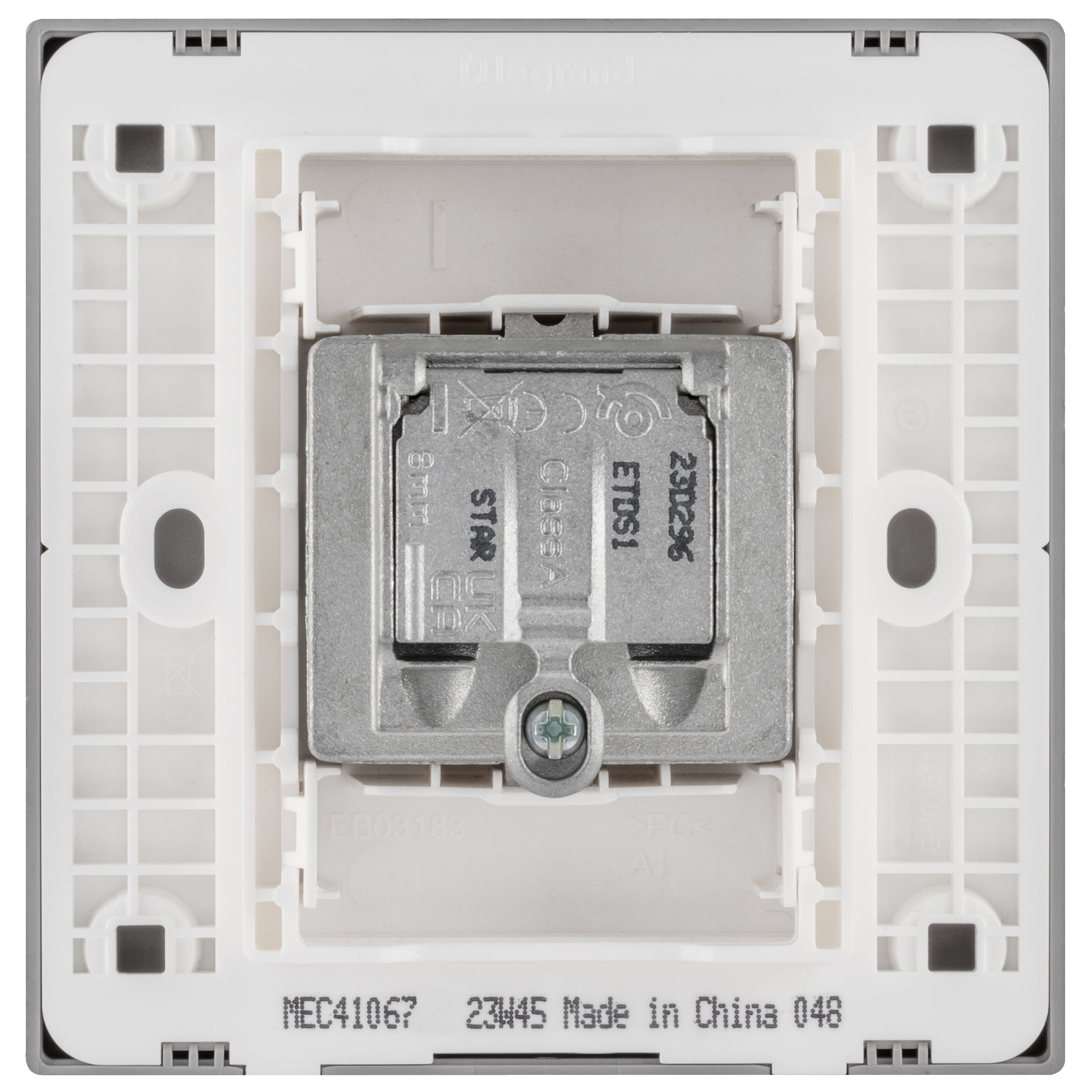

Type of fastening Mounting with screw
Colour Silver
Surface protection Lacquered
Surface finishing Matt
Material Plastic
Material quality Thermoplastic
Halogen free No
Antimicrobial treatment No
Degree of protection (IP) IP20
degree of impact strength (IK) IK04
Device width 86 mm
Device height 87.4 mm
Device depth 39.6 mm
Min. depth of built-in installation box 35 mm
Built-in depth 27.3 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Terminal marking indication No

Documentation

1 document
Technical Sheet
F04225EN-00.pdf pdf (0.95 Mo)
