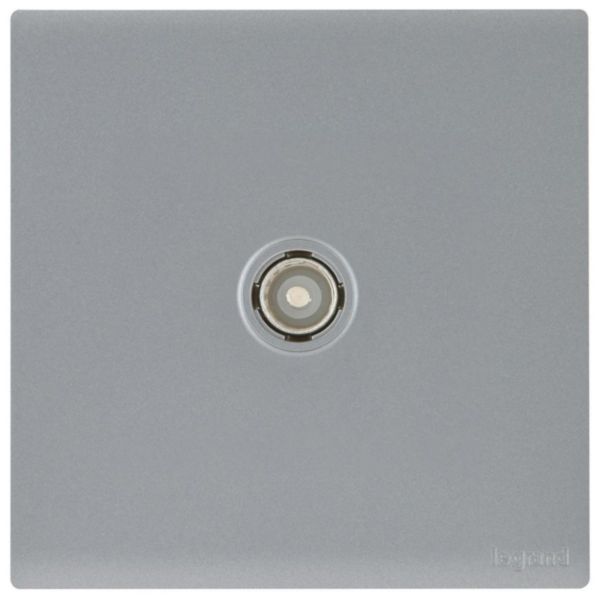

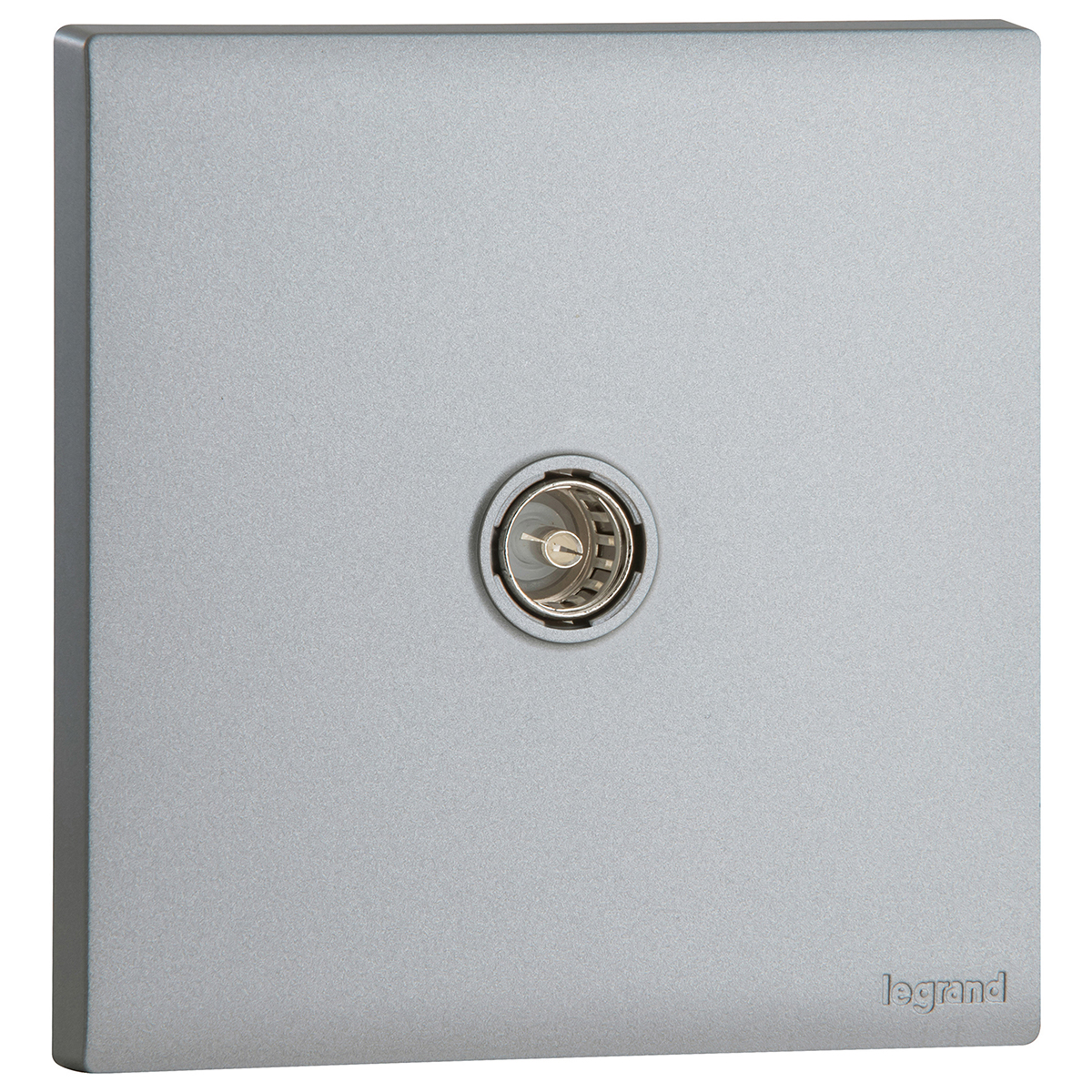

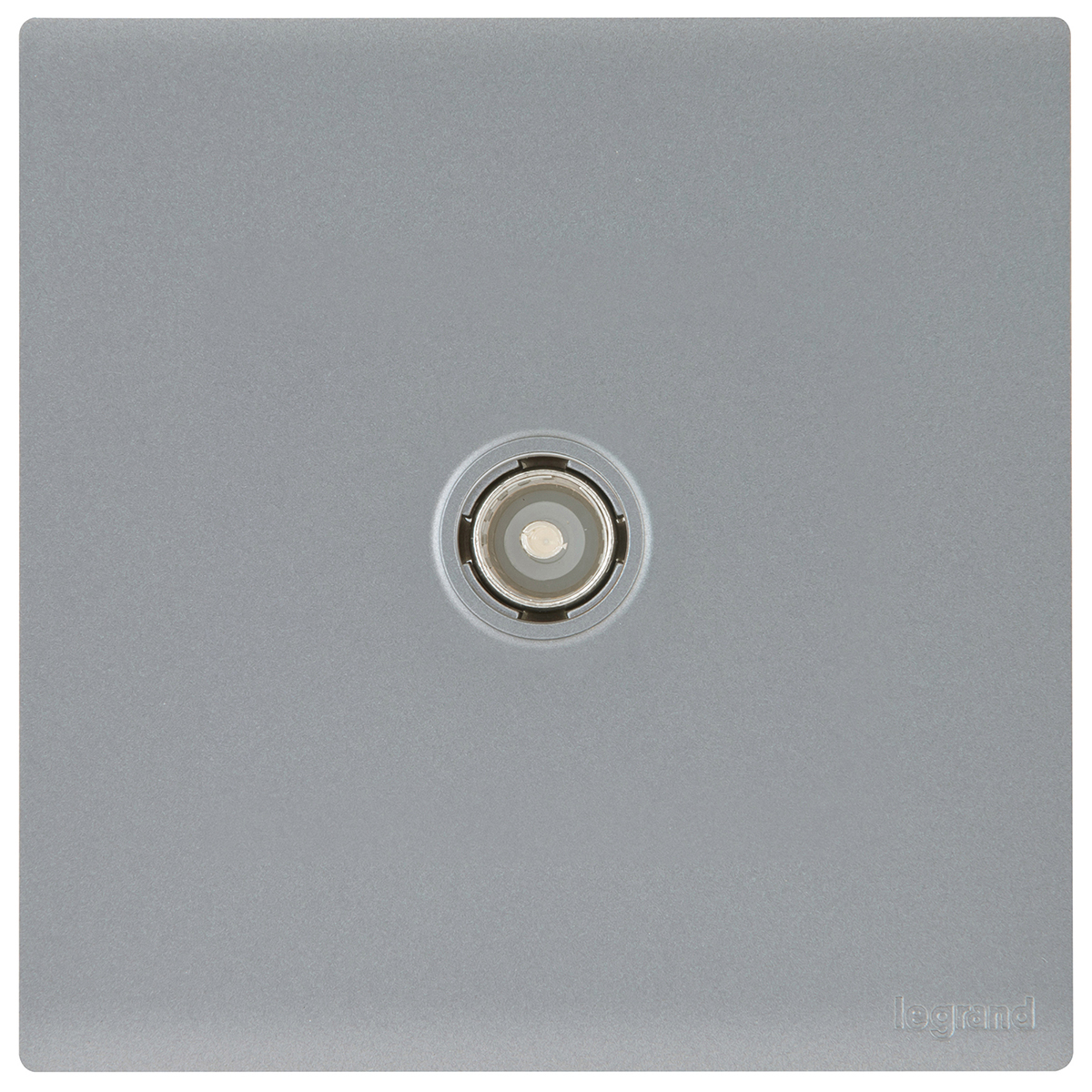

Obria TV Female Terminal Socket - Dark Silver

Obria Legrand

Obria TV Female Terminal Socket - Dark Silver

REF. MEC41021SL EAN. 3414972674935

Allows to connect conventional televisions (old standard Male plug)

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Allows to connect conventional televisions (old standard Male plug)

Product characteristics
  • Sold as a complete set under one cat number
  • TV 9,5mm Female
  • Attenuation loss < 1 dB
  • Dark Silver Finish
  • Conform to EN-50083-4 & EN-50083-2
Recommendation / Restriction
  • Recommended inside use only

The product's benefits

Installation
  • Secured screw connection
Usage
  • Limited cable bend radius that lower attenuation losses
Avantages
  • Low attenuation socket
  • Modern full plate design for a perfect decoration integration
  • Fully protected against EMC perturbances (=3G, 4G, 5G… risk of image pixelation)

Technical characteristics

Model End socket
Type of socket outlet TV
Mounting method Flush-mounted
Number of modules (module system) 2
Assembly arrangement Basic element with full cover plate
Tap loss at 860 MHz 1 dB
TV frequency band (Min-Max) 5-1000 MHz
Suitable for remote power supply No
Type of fastening Mounting with screw
Colour Silver
Surface protection Lacquered
Surface finishing Matt
Material Plastic
Material quality Thermoplastic
Halogen free No
Antimicrobial treatment No
Degree of protection (IP) IP20
degree of impact strength (IK) IK04
Device width 86 mm
Device height 87.4 mm
Device depth 28.2 mm
Min. depth of built-in installation box 35 mm
Built-in depth 19.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Terminal marking indication No

Documentation

1 document
Technical Sheet
F04224EN-00.pdf pdf (0.8 Mo)
