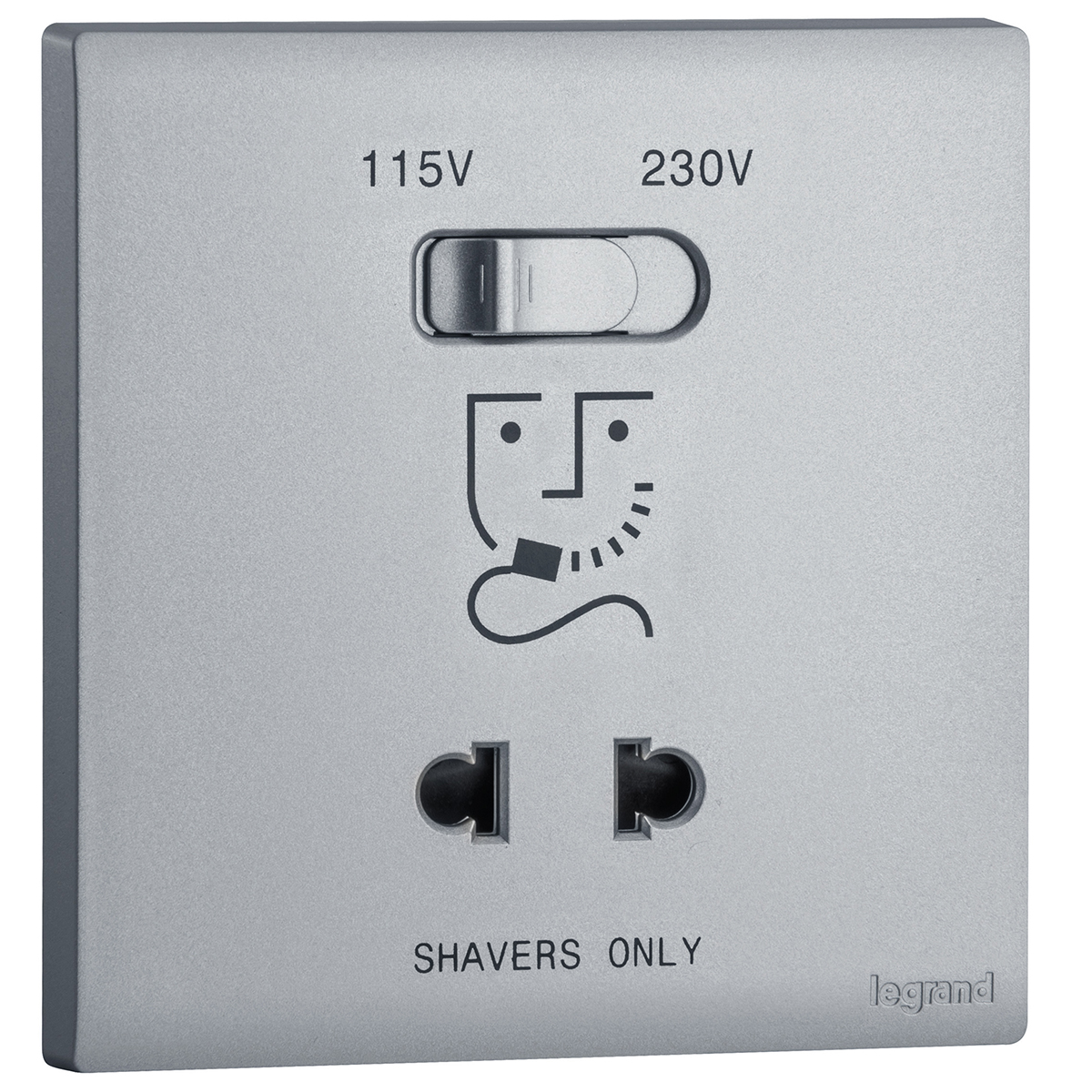

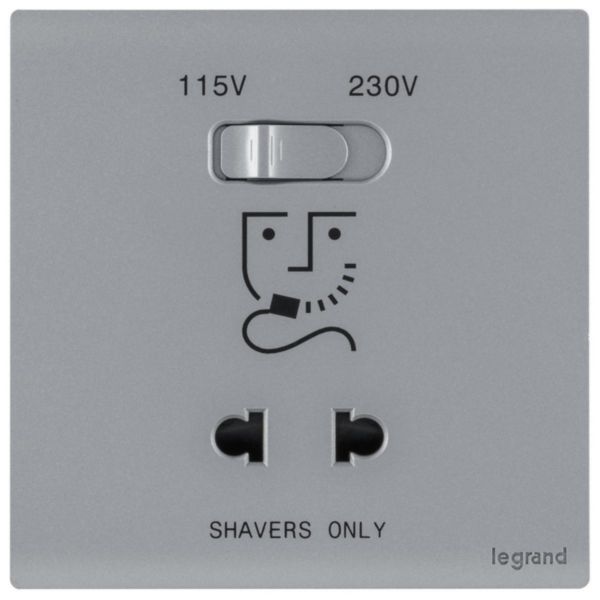

Obria Shaver Socket - Dark Silver

Name: Obria Shaver Socket - Dark Silver
SKU: MEC36019SL

Obria Legrand

REF. MEC36019SL EAN. 3414972674706

The shaver socket allows to supply power to a shaver compatible with European, British and Australian standards 2P plugs. 1G

Compare You can only compare 4 products, you must remove 1 to add this one

The shaver socket allows to supply power to a shaver compatible with European, British and Australian standards 2P plugs. 1G

Sold as a complete set under one cat number
115V à 230V, 20VA
Screw type terminals for enhanced contacts and open terminal for easy to install
Dark Silver Finish
IP24 product suited to bathroom humid environment. Fitted with safety shutters to maximise child protection

Delivered with its protective shell against paint and dust during installation phase

Assembly arrangement	Basic element with full cover plate
Number of modules (module system)	2
Mounting method	Flush-mounted
With hinged lid	No
Voltage reversible	No
Nominal voltage low value	207 V
Nominal voltage high value	253 V
Rated output	20 VA
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Surface protection	Lacquered
Surface finishing	Matt
Colour	Silver
Transparent	No
Device width	86 mm
Device height	87.4 mm

Device depth	58.7 mm
With built-in installation box	No
Min. depth of built-in installation box	50 mm
Built-in depth	49.7 mm
degree of impact strength (IK)	IK04
Degree of protection (IP)	IP20
Operating / setting temperature (Min-Max)	-5-35 °C
Storage temperature (Min-Max)	-10-70 °C
Voltage type	AC
Frequency (Min-Max)	50-60 Hz
Terminal marking indication	Yes
Antimicrobial treatment	No
Connection type	Screwed terminal
Terminals capacity (Min-Max)	2.5-2.5 mm²
Cable nature for connection	Flexible or rigid
Label space/information surface	No
