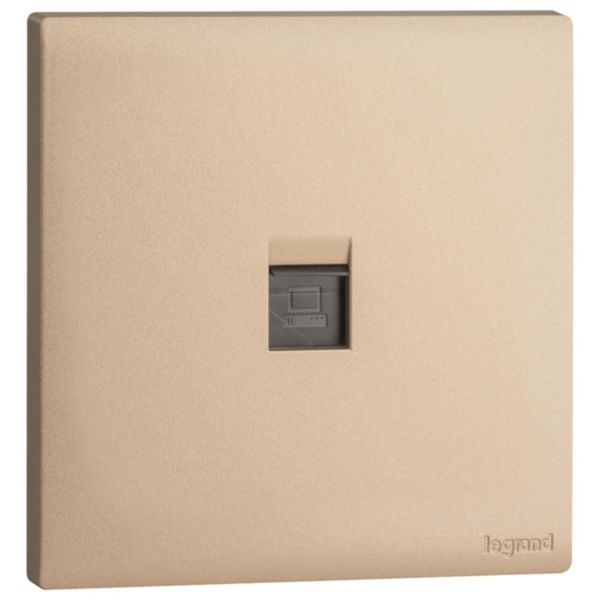

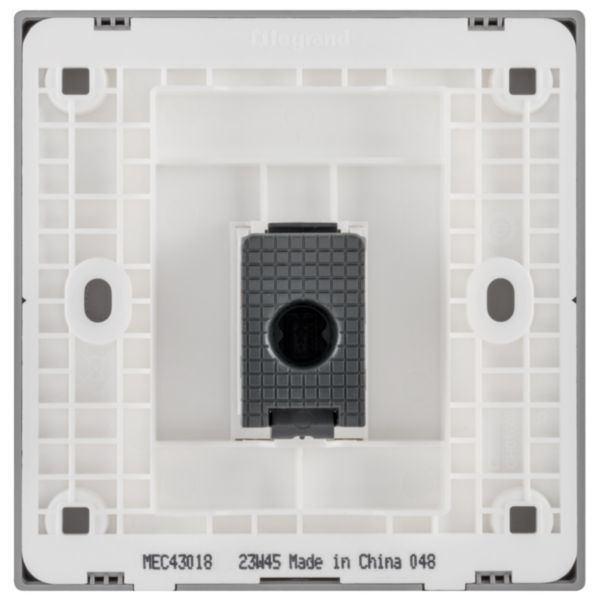

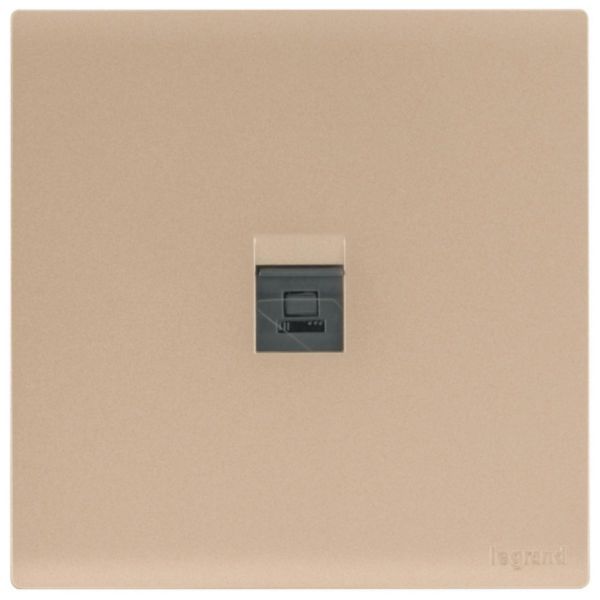

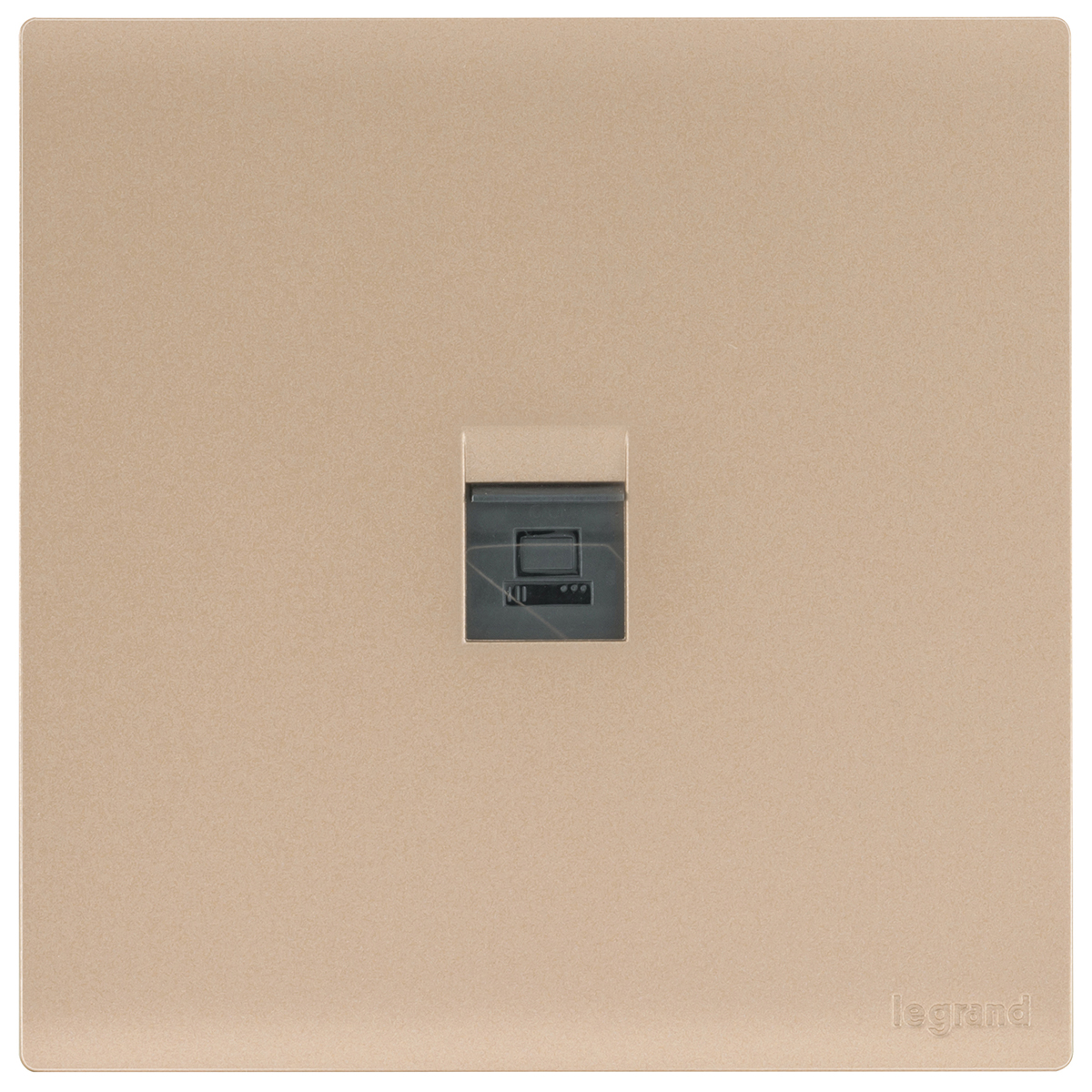

Obria RJ 45 CAT 6 socket - surface/recessed mount - IP20 protection - straight outlet direction - Rose Gold

Obria Legrand

Obria RJ 45 CAT 6 socket - surface/recessed mount - IP20 protection - straight outlet direction - Rose Gold

REF. MEC43018RG EAN. 3414972675710

Obria RJ45 socket connects a device (PC, printer) to the local network (ISP router, switch). The wired distribution guarantees a high speed, secured and reliable connection to the internet.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Obria RJ45 socket connects a device (PC, printer) to the local network (ISP router, switch). The wired distribution guarantees a high speed, secured and reliable connection to the internet.

Product characteristics
  • RJ45 Cat 6 : Data rate up to 1 GigaBit/s. This allows you to download a 1 GigaByte file in 8 seconds.
  • Support high capacity PoE applications. Power over Ethernet pass electric power along with data on twisted pair Ethernet cabling.
  • Equipped with a dust cover protecting the connector.
  • 0 module
  • Rose Gold
Recommendation / Restriction
  • For flush-mounting, back box has to to be minimum 35mm deep. Conform to standards ISO/IEC 11801 Ed. 3.0, EN 50173-1 and TIA/EIA 568 C. Indoor use only.

The product's benefits

Installation
  • Equipped with connectors with quick toolless connection. It does not require a special tool and can be re-wired if a mistake is made.
Usage
  • Suitable for commercial and residential installation. IP and analog phones. Very suitable for downloads, streaming or online games requiring low latency.
Avantages
  • Full rocker range with colors to match eco projects both in residential and commercial​.
  • Compatible with cords equipped with RJ11, RJ12 or RJ45 plugs.
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation. Can be installed in a normal (single) flush mounting box, no need to additional wall groove cutting or cabling.

Technical characteristics

Surface mounting Yes
Flush-mounted installation Yes
Duct installation No
Floor box/subfloor mounted No
Type of fastening Engage (snap)
Assembly arrangement Basic element with central cover plate
Type of connector Other
Suitable for number of connectors 1
Category 6
Colour Gold
Separate earthing connection No
Compatible with third-party covers No
Separate strain relief No
Outlet direction Straight
With dust cover Yes
With terminal resistor Yes
Degree of protection (IP) IP20
Device width 86 mm
Device height 87.4 mm
Device depth 39.9 mm
Number of modules (module system) 2
Built-in depth 22.8 mm
degree of impact strength (IK) IK04
Operating / setting temperature -5-35 °C
Storage temperature -10-70 °C
Terminal marking indication Yes
Halogen free No
Antimicrobial treatment No
Mounting method Surface mounted/recessed mounted
Horizontal fixing center distance 60.3-60.3 mm
Cable support Not applicable
