Obria HDMI + USB Link - halogen free - IP20 protection - Rose Gold

Name: Obria HDMI + USB Link - halogen free - IP20 protection - Rose Gold
SKU: MEC44015RG

Obria Legrand

REF. MEC44015RG EAN. 3414972676014

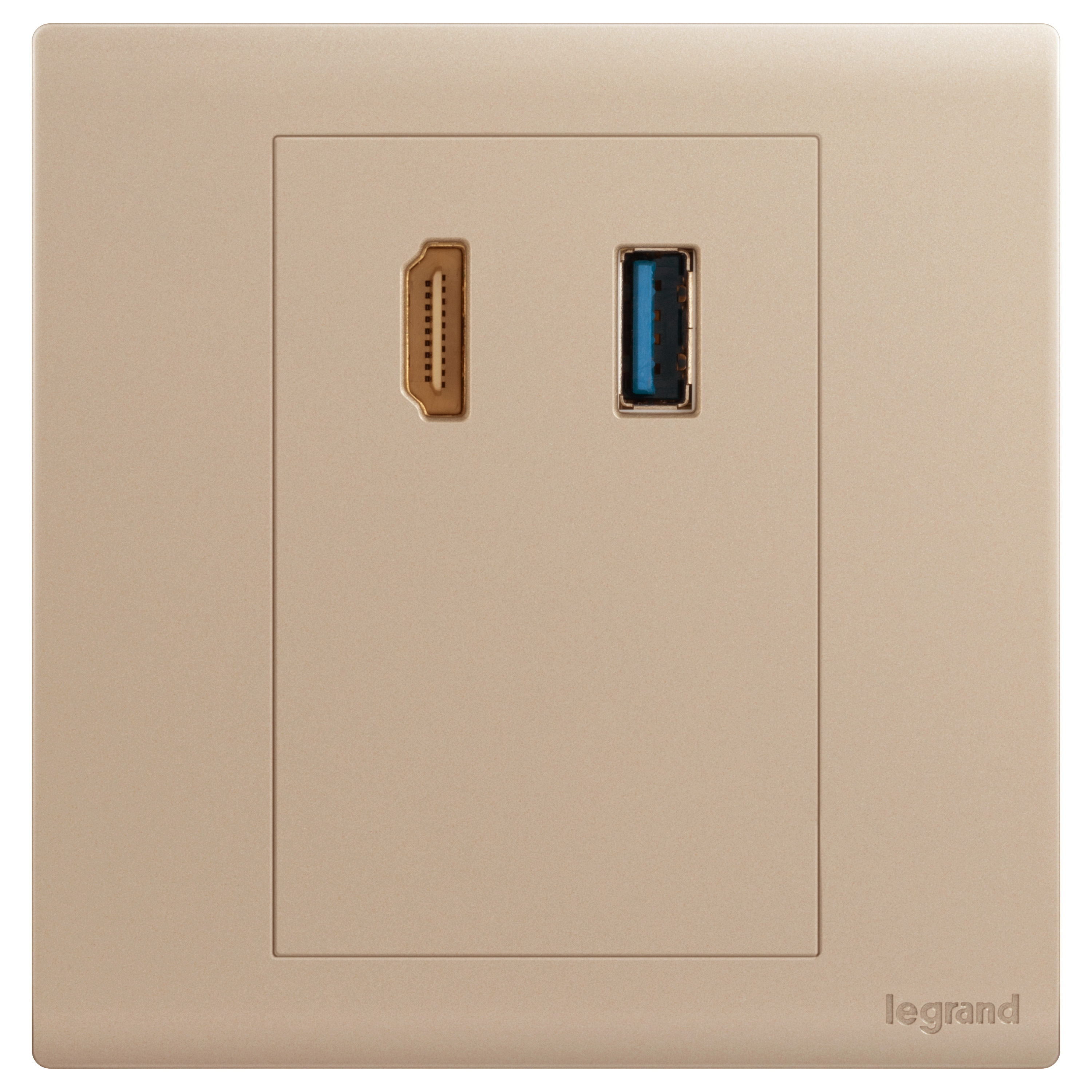

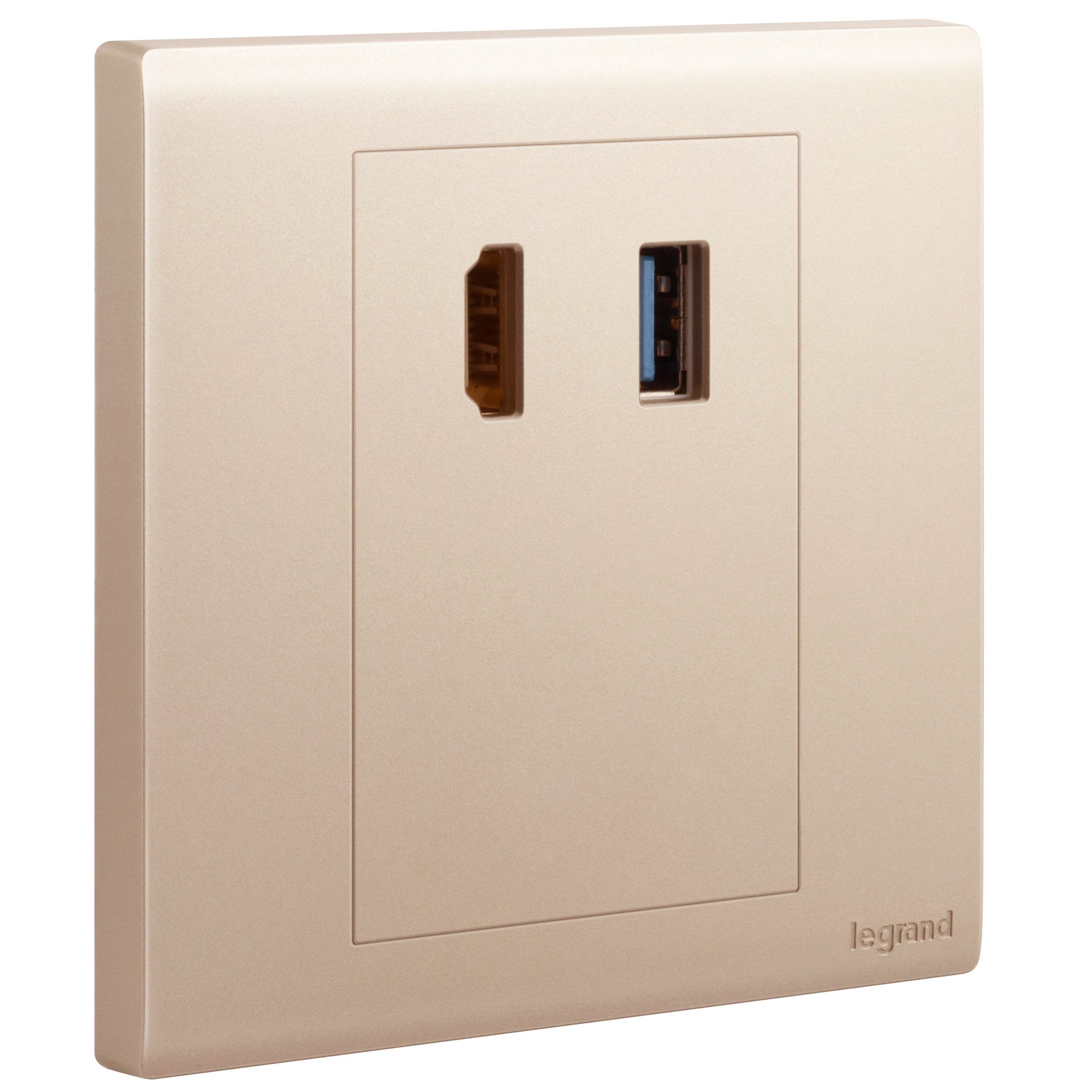

The HDMI socket allows to connect external devices through HDMI connector. Data transfer is also possible through the USB A type socket

Compare You can only compare 4 products, you must remove 1 to add this one

The HDMI socket allows to connect external devices through HDMI connector. Data transfer is also possible through the USB A type socket

Full rocker range with colors to match eco projects both in residential and commercial.
Technicity and Robustness of the support frame
Thin and modern design for a perfect decoration integration

Assembly arrangement	Basic element with central cover plate
Utilization	USB/jack plug
Support ring	No
With dust cover	No
With hinged lid	No
Imprintable label	Without indication field
With imprint	No
Mounting method	Flush-mounted
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Antimicrobial treatment	No
Surface protection	Lacquered
Surface finishing	Matt
Colour	Gold
Transparent	No
Type of fastening	Mounting with screw

Number of modules (module system)	3
With buses/couplings	No
Isolated connections	Yes
With strain relief	No
Shielded buses	No
Shielded housing	No
Luster terminal	No
With lighting	No
Suitable for degree of protection (IP)	IP20
degree of impact strength (IK)	IK04
Device width	86 mm
Device height	87.4 mm
Device depth	38.8 mm
Min. depth of built-in installation box	35 mm
Built-in depth	30.6 mm
Operating / setting temperature (Min-Max)	-5-35 °C
Storage temperature (Min-Max)	-10-70 °C

1 document

Select all

Technical Sheet

F04220EN-00.pdf pdf (0.73 Mo)
