Obria Emergency Push Button 1A - Matt White

Name: Obria Emergency Push Button 1A - Matt White
SKU: MEC23013WH

Obria Legrand

REF. MEC23013WH EAN. 3414972669214

Push the red button to alert somebody. Reset by turning the key.

Compare You can only compare 4 products, you must remove 1 to add this one

Push the red button to alert somebody. Reset by turning the key.

Sold as a complete set under one cat number
1A, 250V
Screw type terminals for enhanced contacts and open terminal for easy to install
Matt White Finish

Assembly arrangement	Basic element with housing top
Model	Other
Method of operation	Other
Operating principle	Electromechanical
Contactless type	No
Number of modules (module system)	2
Nominal voltage	250 V
Rated current	1 A
With lighting	No
With light source	No
With complemantary luminous signal	No
Monitoring contact	No

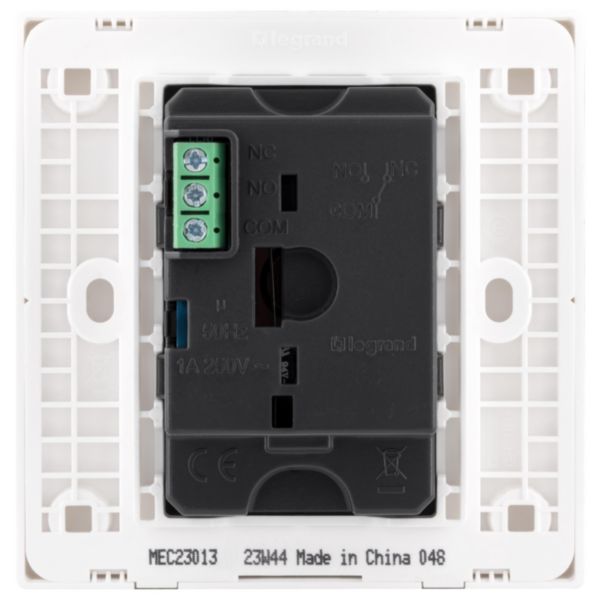

Connection type	Screwed terminal
Mounting method	Flush-mounted
Type of fastening	Screw mounting
Material	Plastic
Material quality	Thermoplastic
Halogen free	No
Antimicrobial treatment	No
Surface protection	Untreated
Surface finishing	Matt
Colour	White

RAL-number (similar)	9003
Transparent	No
Label space/information surface	No
Imprint	None
Suitable for degree of protection (IP)	IP20
degree of impact strength (IK)	IK04
Device width	86 mm
Device height	87.4 mm
Device depth	44.8 mm
Min. depth of built-in installation box	40 mm
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
Built-in depth	35.8 mm
Operating / setting temperature (Min-Max)	-5-35 °C
Storage temperature (Min-Max)	-10-70 °C
Voltage type	AC
Frequency (Min-Max)	50-60 Hz
Mandatory neutral	No
Terminal marking indication	Yes

1 document

Select all

Technical Sheet

F04218EN-00.pdf pdf (0.54 Mo)
