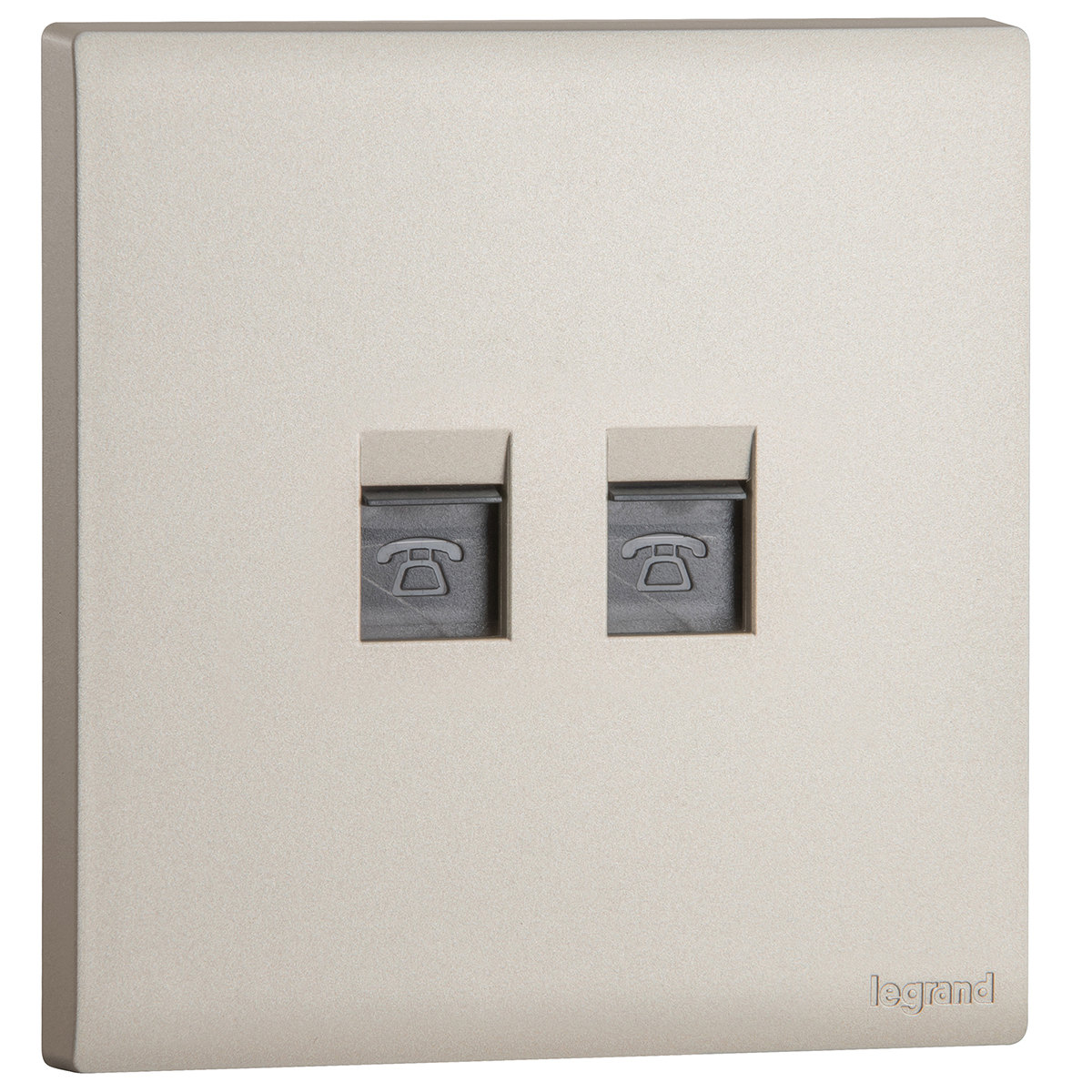

Obria Double RJ11 Telephone Socket - Champagne

Name: Obria Double RJ11 Telephone Socket - Champagne
SKU: MEC42070CH

Obria Legrand

REF. MEC42070CH EAN. 3414972675567

The double RJ11 socket connects a device (telephone) to the local network

Compare You can only compare 4 products, you must remove 1 to add this one

The double RJ11 socket connects a device (telephone) to the local network

Surface mounting	Yes
Flush-mounted installation	Yes
Duct installation	No
Floor box/subfloor mounted	No
Type of fastening	Engage (snap)
Assembly arrangement	Basic element with central cover plate
Type of connector	Other
Suitable for number of connectors	2
Category	Other
Colour	Gold
Separate earthing connection	No
Compatible with third-party covers	No
Separate strain relief	No
Outlet direction	Straight
With dust cover	Yes
With terminal resistor	Yes

Degree of protection (IP)	IP20
Device width	86 mm
Device height	87.4 mm
Device depth	31.5 mm
Number of modules (module system)	2
Built-in depth	22.8 mm
degree of impact strength (IK)	IK04
Operating / setting temperature (Min-Max)	-5-35 °C
Storage temperature (Min-Max)	-10-70 °C
Terminal marking indication	Yes
Halogen free	No
Antimicrobial treatment	No
Mounting method	Surface mounted/recessed mounted
Horizontal fixing center distance (Min-Max)	60.3-60.3 mm
Cable support	Not applicable

1 document

Select all

Technical Sheet

F04222EN-00.pdf pdf (0.52 Mo)
