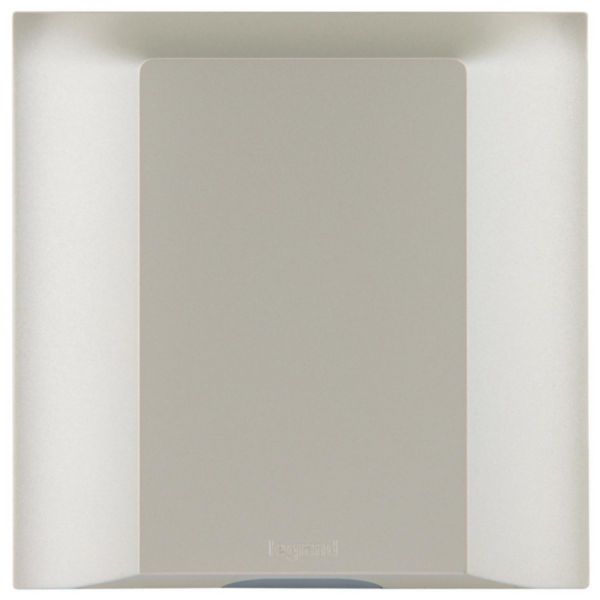

Obria 45A Cablet Outlet - Champagne

Name: Obria 45A Cablet Outlet - Champagne
SKU: MEC35059CH

Obria Legrand

REF. MEC35059CH EAN. 3414972674546

The cable outlet allows a secure connection for loads (water-heater, ovens, stoves, etc) up to 45A.

Compare You can only compare 4 products, you must remove 1 to add this one

The cable outlet allows a secure connection for loads (water-heater, ovens, stoves, etc) up to 45A.

Sold as a complete set under one cat number
45A, 250V
Screw type terminals for enhanced contacts and open terminal for easy to install
Champagne finish

Mounting method	Flush-mounted
Clamps	Other
Connection system	Screwed terminal
Material	Plastic
Material quality	Thermoplastic
Halogen free	No
Colour	Gold
Suitable for degree of protection (IP)	IP20

Device width	86 mm
Device height	86 mm
Device depth	42.9 mm
Built-in depth	25.4 mm
degree of impact strength (IK)	IK04
Operating / setting temperature (Min-Max)	-5-35 °C
Storage temperature (Min-Max)	-10-70 °C
Antimicrobial treatment	No

1 document

Select all

Technical Sheet

F04217EN-00.pdf pdf (0.55 Mo)

1 document

Select all

Agreement

AoC-N°2566AS03ARLI58975 (0.34 Mo)
