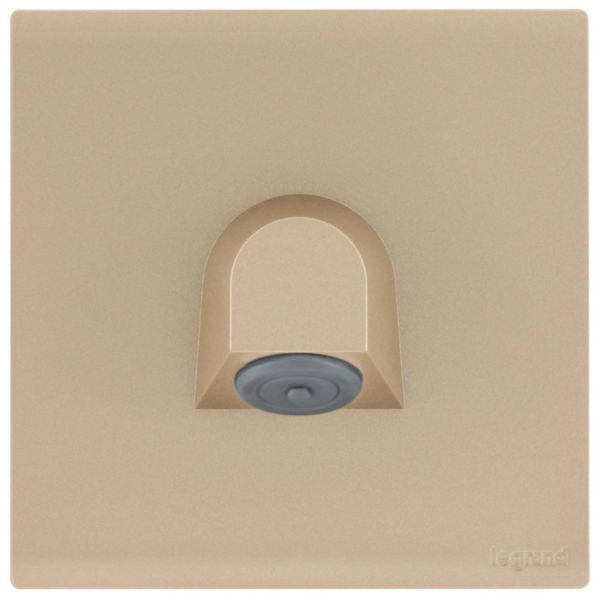

Obria 20A Cable Outlet - Rose Gold

Name: Obria 20A Cable Outlet - Rose Gold
SKU: MEC35058RG

Obria Legrand

REF. MEC35058RG EAN. 3414972674423

The cable outlet allows a secure connection for loads (water-heater, ovens, stoves, etc) up to 20A.

Compare You can only compare 4 products, you must remove 1 to add this one

The cable outlet allows a secure connection for loads (water-heater, ovens, stoves, etc) up to 20A.

Sold as a complete set under one cat number
20A, 250V
Screw type terminals for enhanced contacts and open terminal for easy to install
Rose Gold Finish

Mounting method	Flush-mounted
Clamps	Other
Connection system	Screwed terminal
Material	Plastic
Material quality	Thermoplastic
Halogen free	No
Colour	Gold
Suitable for degree of protection (IP)	IP20

Device width	86 mm
Device height	87.4 mm
Device depth	39 mm
Built-in depth	12 mm
degree of impact strength (IK)	IK04
Operating / setting temperature (Min-Max)	-5-35 °C
Storage temperature (Min-Max)	-10-70 °C
Antimicrobial treatment	No

1 document

Select all

Technical Sheet

F04217EN-00.pdf pdf (0.55 Mo)

1 document

Select all

Agreement

AoC-2507B0613SHA-V1 (0.51 Mo)
