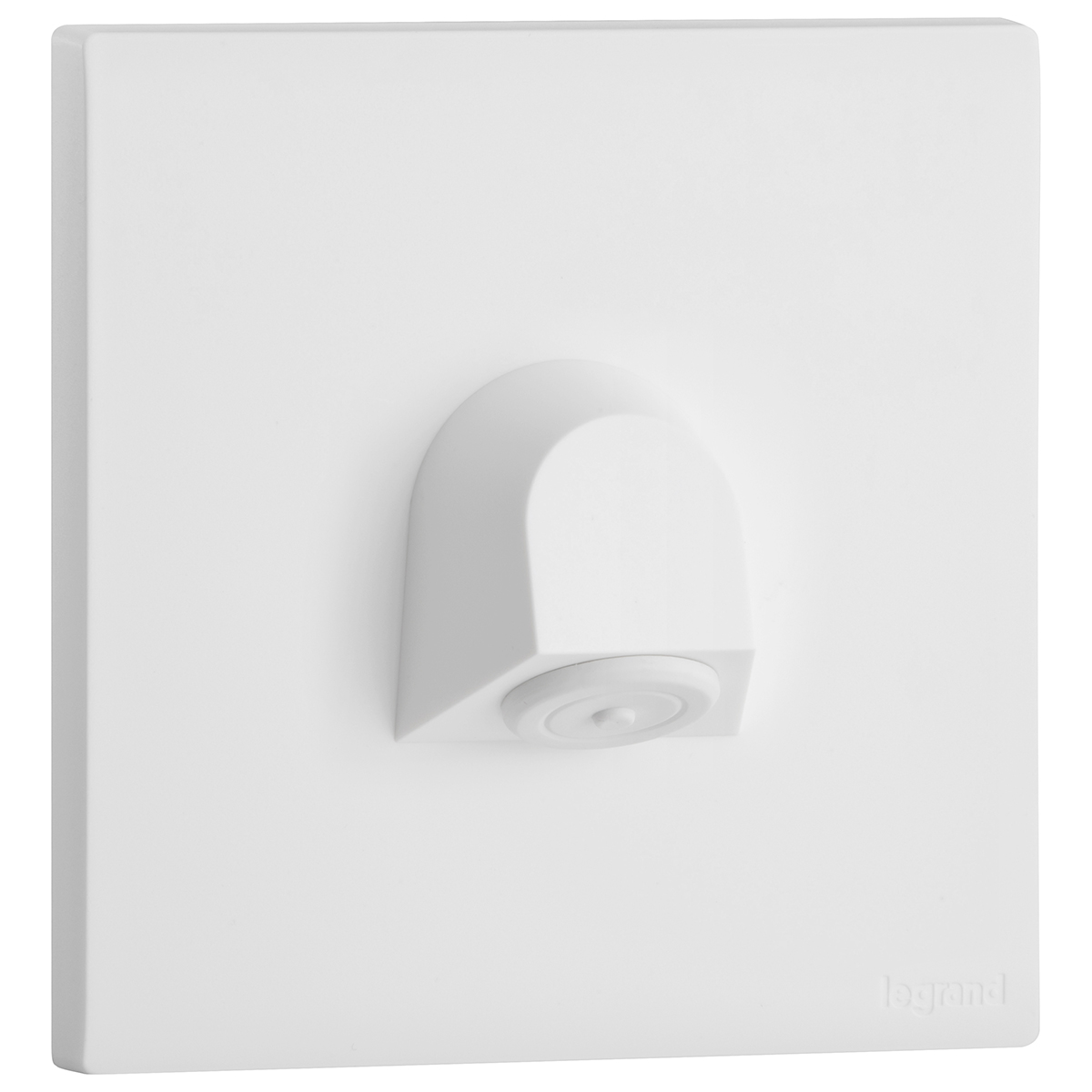

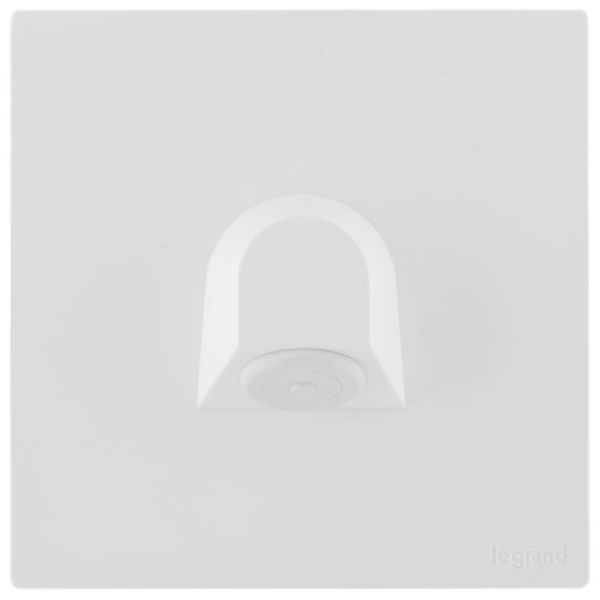

Obria 20A Cable Outlet - Matt White

Name: Obria 20A Cable Outlet - Matt White
SKU: MEC35058WH

Obria Legrand

REF. MEC35058WH EAN. 3414972674485

The cable outlet allows a secure connection for loads (water-heater, ovens, stoves, etc) up to 20A.

Compare You can only compare 4 products, you must remove 1 to add this one

The cable outlet allows a secure connection for loads (water-heater, ovens, stoves, etc) up to 20A.

Sold as a complete set under one cat number
20A, 250V

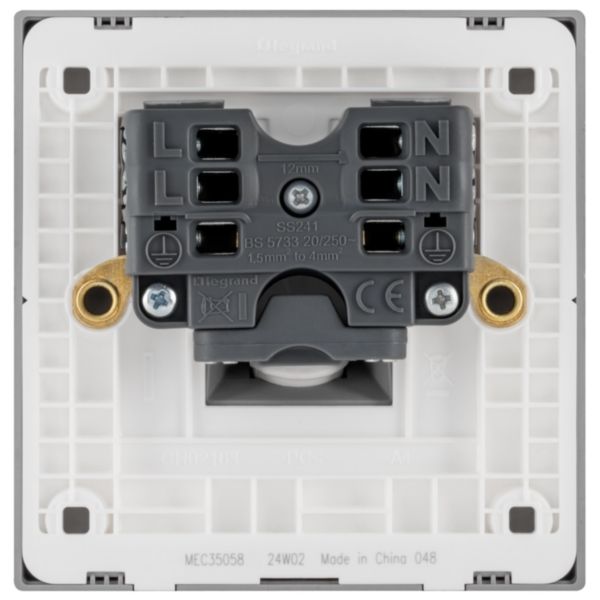

Screw type terminals for enhanced contacts and open terminal for easy to install
Matt White Finish

Mounting method	Flush-mounted
Clamps	Other
Connection system	Screwed terminal
Material	Plastic
Material quality	Thermoplastic
Halogen free	No
Colour	White
RAL-number (similar)	9003
Suitable for degree of protection (IP)	IP20

Device width	86 mm
Device height	87.4 mm
Device depth	39 mm
Built-in depth	12 mm
degree of impact strength (IK)	IK04
Operating / setting temperature (Min-Max)	-5-35 °C
Storage temperature (Min-Max)	-10-70 °C
Antimicrobial treatment	No

1 document

Select all

Technical Sheet

F04217EN-00.pdf pdf (0.55 Mo)

1 document

Select all

Agreement

AoC-2507B0613SHA-V1 (0.51 Mo)
