Obria 2 gang BS 13A Sp Switched Socket + Led - Matt White

Obria Legrand

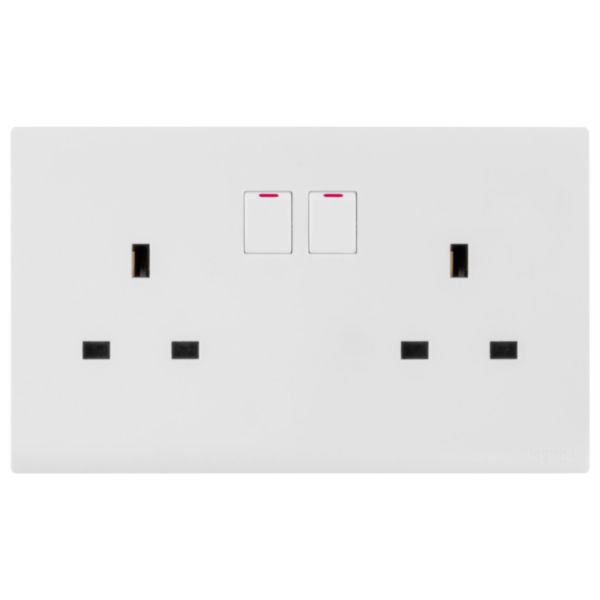

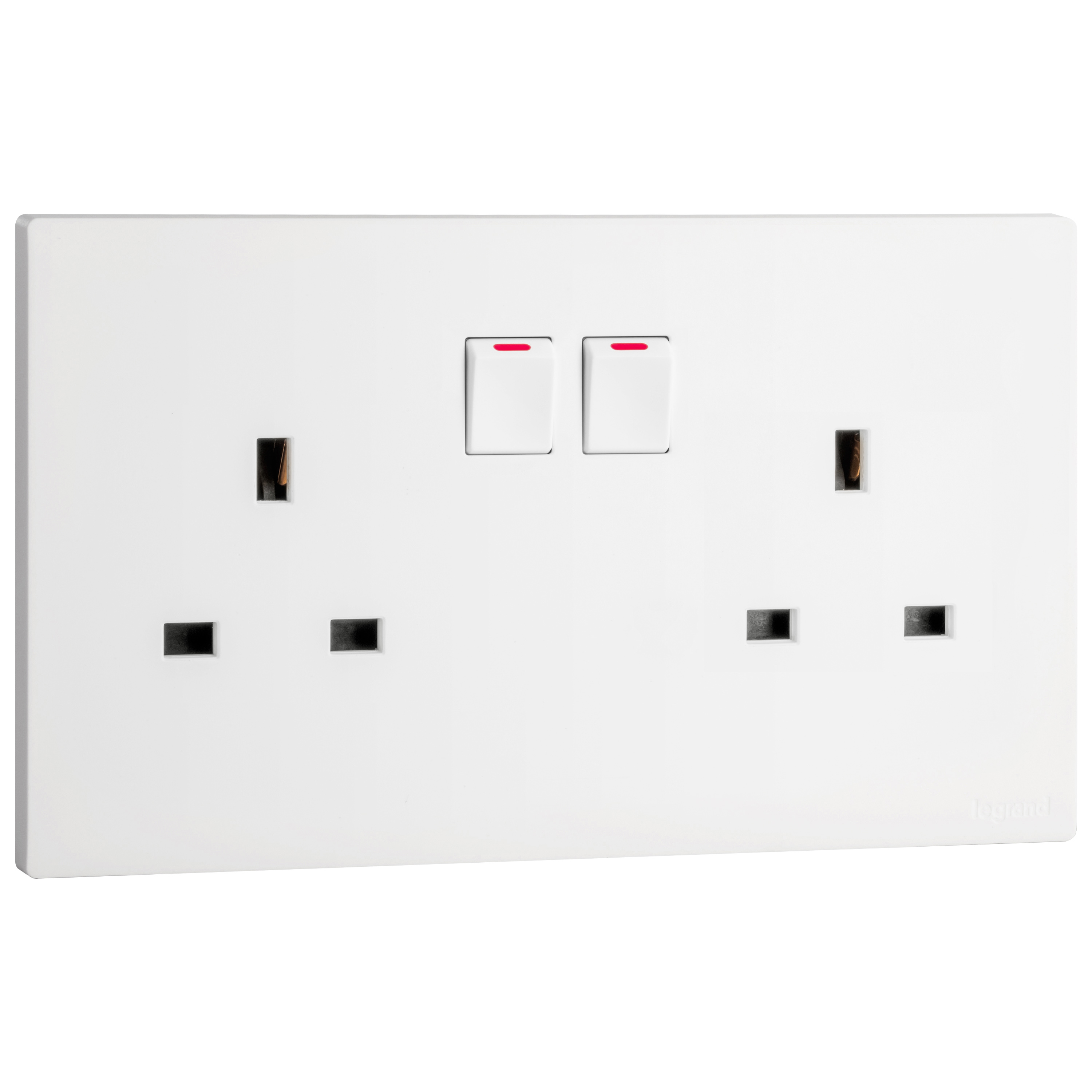

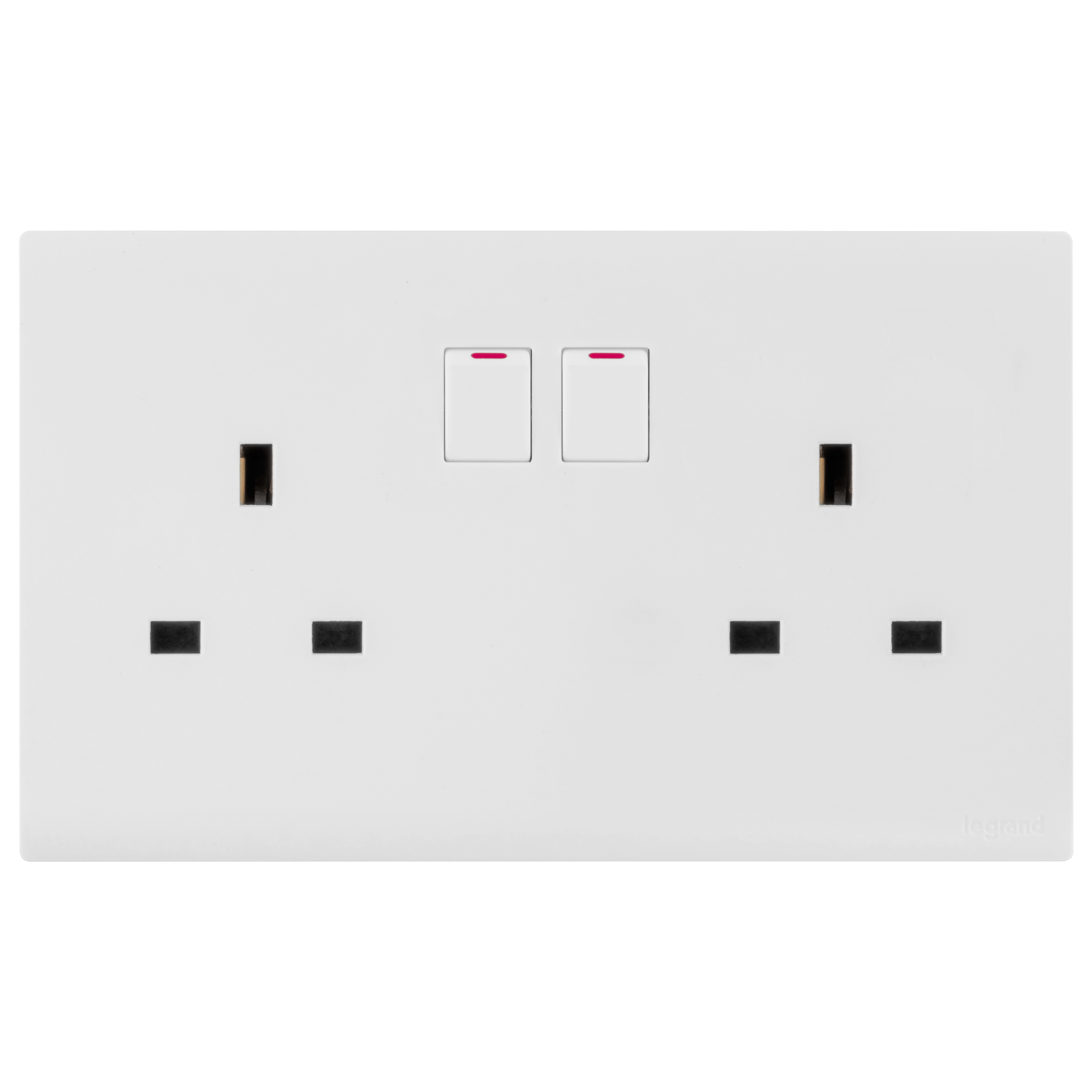

Obria 2 gang BS 13A Sp Switched Socket + Led - Matt White

REF. MEC32037WH EAN. 3414972671583

The 2G switched socket allows the supply of power to two electrical devices.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The 2G switched socket allows the supply of power to two electrical devices.

Product characteristics
  • Sold as a complete set under one cat number
  • 2 x 2P+E British Standard, 13A, 250V
  • Screw type terminals for enhanced contacts and open terminal for easy to install
  • Matt White Finish
Recommendation / Restriction
  • Recommended inside use only

The product's benefits

Installation
  • Quick and Easy plate-rocker clipping system
Usage
  • Fitted with safety shutters to maximise child protection
Avantages
  • Technicity and Robustness of the support frame
  • Modern full plate design for a perfect decoration integration

Technical characteristics

Model British Standard
Concurrently switching neutral conductor Yes
Protective contact Square
Number of active contacts (round) 0
Number of active contacts (flat) 2
Assembly arrangement Basic element with full cover plate
With complemantary luminous signal Yes
Number of ports USB-A 0
Number of ports USB-C 0
Number of socket outlets 2
Number of modules (module system) 2
Imprint/indication None
Connection type Screwed terminal
With hinged lid No
With enhanced contact protection No
Label space/information surface No
Colour White
RAL-number (similar) 9003
Metallic colour No
Transparent No
Lockable No
Eject-mechanism No
Insulated mounting No
With function lighting Yes
With orientation lighting No
Overvoltage protection No
Fault current protection No
With miniature fuse No
Special power supply None
Mounting method Flush-mounted
Type of fastening Mounting with screw
Material Plastic
Material quality Thermoplastic
Halogen free No
Surface protection Untreated
Surface finishing Matt
Antimicrobial treatment No
With on/off switch Yes
Colour of switch operator White
Rotated central insert No
Nominal current 13 A
Nominal voltage 250 V
Frequency 50-60 Hz
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Device width 146 mm
Device height 87.4 mm
Device depth 34.6 mm
Min. depth of built-in installation box 35 mm
Compatible with Apple HomeKit No
Compatible with Amazon Alexa No
Compatible with Google Assistant No
IFTTT support available No
With Wi-Fi signal repeater No
With built-in bluetooth speaker No
Built-in depth 23.9 mm
Operating / setting temperature -5-35 °C
Storage temperature -10-70 °C
Voltage type AC
Terminal marking indication Yes
Prewired No
Terminals capacity 1-4 mm²
Cable nature for connection Flexible or rigid
Cable section 1-4 mm²
Cable support Screw cable clamp
Contains Batteries and/or Accumulator No
Connected object No

Documentation

1 document
Technical Sheet
F04195EN-00.pdf pdf (0.71 Mo)
3 documents
Agreement
G-MARK-0048-1539 (0.58 Mo)
Agreement
OC / CB-FR_719315 (0.61 Mo)
Agreement
