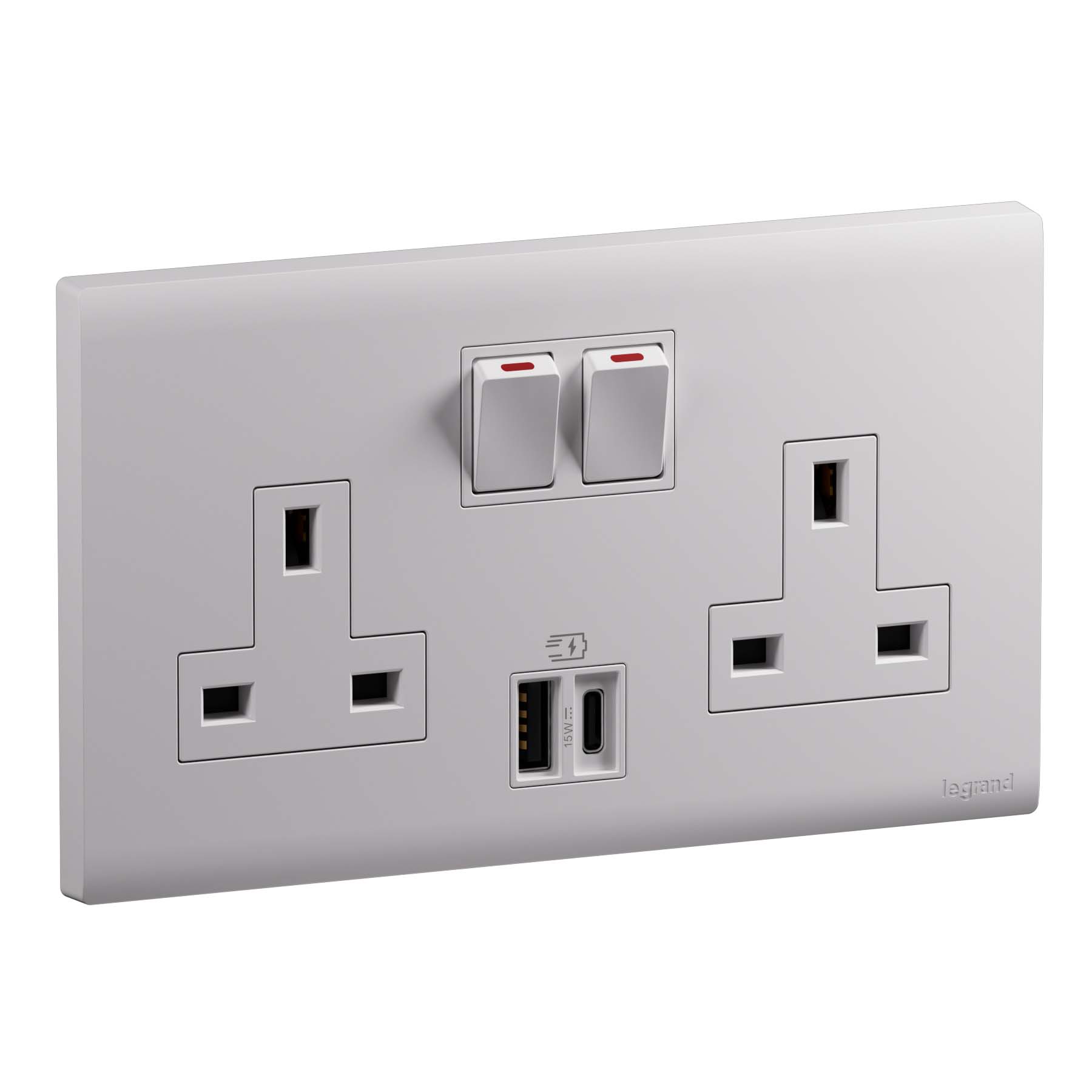

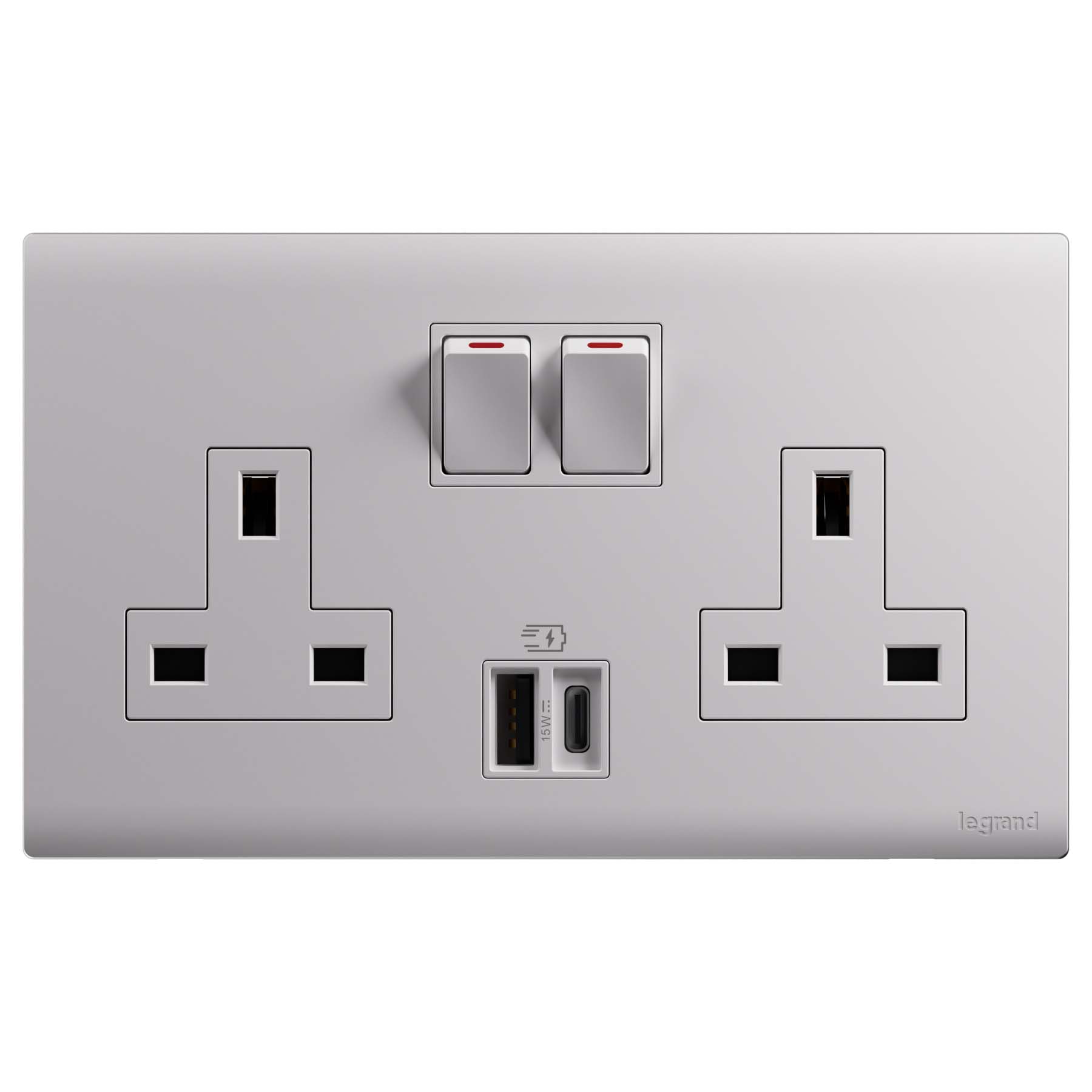

Obria 2 gang BS 13A Sp Switch Socket + Usb A+C 15W - Matt White

Obria Legrand

Obria 2 gang BS 13A Sp Switch Socket + Usb A+C 15W - Matt White

REF. MEC33090WH EAN. 3414972674041

The double switched socket outlet single pole allows to connect to an electronic devices. The twin USB A+C charger allows to conveniently charge electronic devices fast.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The double switched socket outlet single pole allows to connect to an electronic devices. The twin USB A+C charger allows to conveniently charge electronic devices fast.

Product characteristics
  • Sold as a complete set under one cat number
  • 2X2P+E 13A SP British standard, 250V + 15W USB A+C charger
  • Screw type terminals for secured and enhanced contacts connexion
  • Matt White Finish
  • Marked terminals for easy identification
Recommendation / Restriction
  • Recommended inside use only

The product's benefits

Installation
  • Quick and Easy plate clipping system
Usage
  • Fitted with safety shutters to maximise child protection
Avantages
  • Combination of two power sockets and USB A+C charger on one unique device.
  • Modern full plate design for a perfect decoration integration
  • Technicity and Robustness of the support frame

Technical characteristics

Model British Standard
Concurrently switching neutral conductor No
Protective contact Square
Number of active contacts (round) 0
Number of active contacts (flat) 0
Number of active contacts (square) 4
Assembly arrangement Basic element with full cover plate
With complemantary luminous signal No
Number of ports USB-A 1
Number of ports USB-C 1
Max. current rating of USB power supply 3 A
Number of socket outlets 2
Number of modules (module system) 4
Number of socket outlets switchable 2
Number of phases 1
Imprint/indication Other
Connection type Screwed terminal
With hinged lid No
With enhanced contact protection No
Label space/information surface No
Colour White
RAL-number (similar) 9003
Metallic colour No
Transparent No
Lockable No
Insulated mounting No
With function lighting No
With orientation lighting No
Overvoltage protection No
Fault current protection No
With miniature fuse No
Special power supply None
Mounting method Flush-mounted
Type of fastening Mounting with screw
Material Plastic
Material quality Thermoplastic
Halogen free No
Surface protection Untreated
Surface finishing Matt
Antimicrobial treatment No
With on/off switch Yes
Colour of switch operator White
Rotated central insert No
Nominal current 13 A
Nominal voltage 250 V
Frequency (Min-Max) 50-60 Hz
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Device width 146 mm
Device height 87.4 mm
Device depth 33.9 mm
Min. depth of built-in installation box 35 mm
Compatible with Apple HomeKit No
Compatible with Amazon Alexa No
Compatible with Google Assistant No
IFTTT support available No
With Wi-Fi signal repeater No
With built-in bluetooth speaker No
Built-in depth 21.9 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Power Delivery No
USB Output Power 15 W
Terminal marking indication Yes
Prewired No
Terminals capacity (Min-Max) 1-4 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 1-4 mm²
Connected object No

Documentation

1 document
Technical Sheet
F04196EN-00.pdf pdf (0.6 Mo)
1 document
Agreement
G-MARK-0048-1432 (2.49 Mo)
