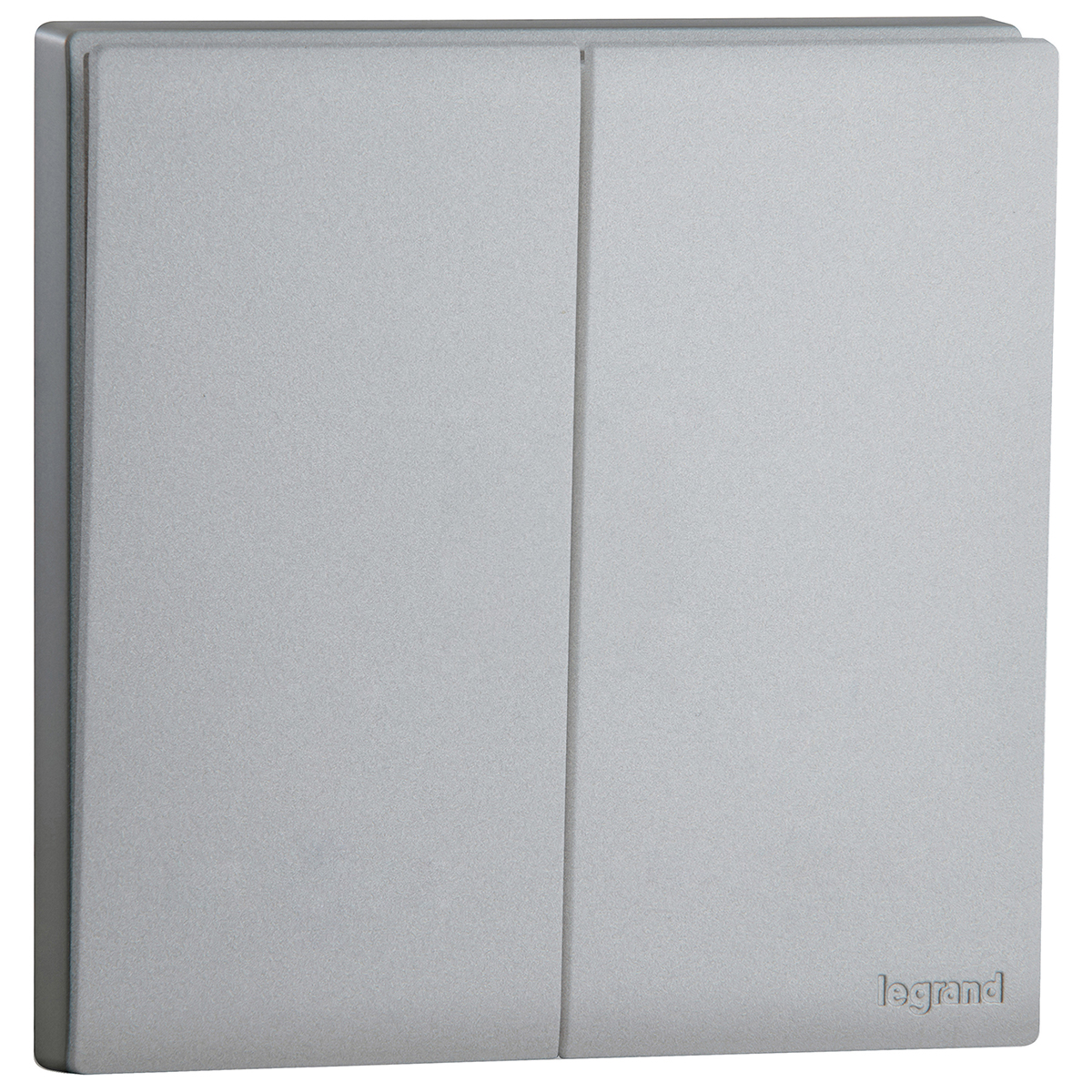

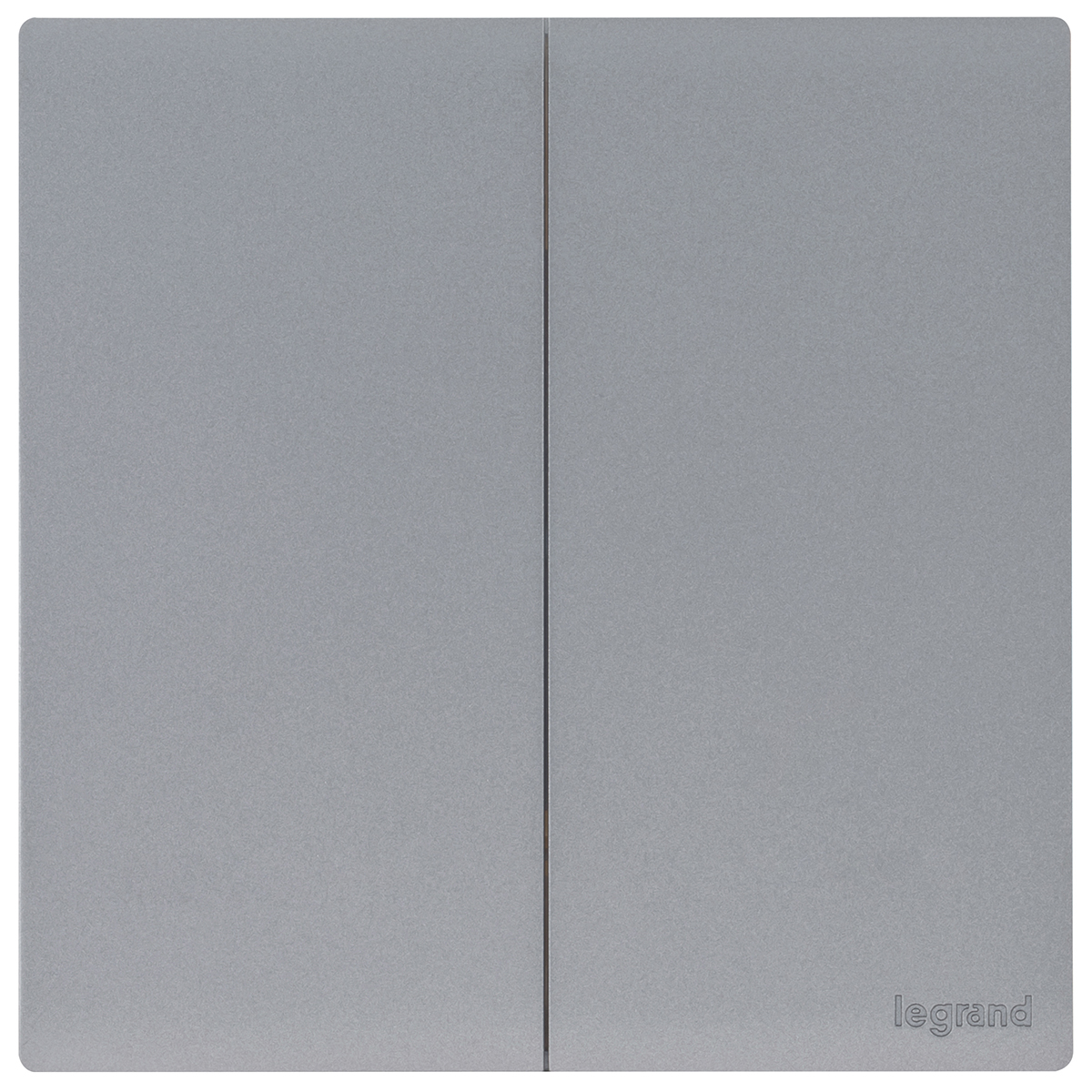

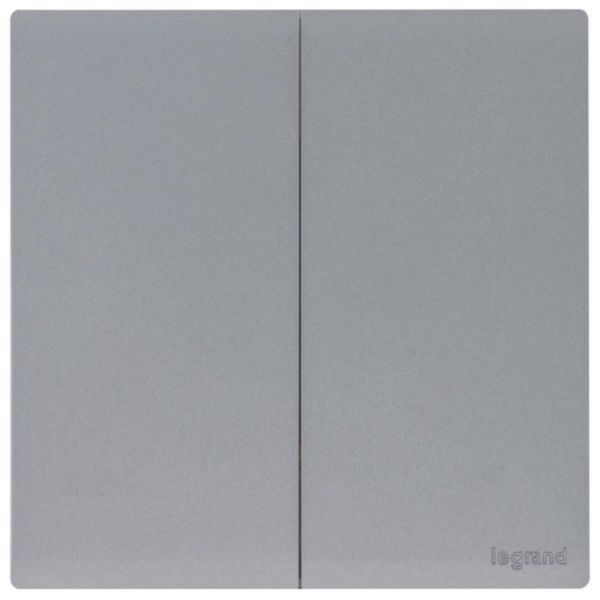

Obria 2 gang 2W 16Ax Switch - Dark Silver

Obria Legrand

Obria 2 gang 2W 16Ax Switch - Dark Silver

REF. MEC22006SL EAN. 3414972668521

2 gang switch allowing the control of two points of 16AX lighting.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

2 gang switch allowing the control of two points of 16AX lighting.

Product characteristics
  • Sold as a complete set under one cat number
  • 16AX, 250V
  • Screw type terminals for enhanced contacts and open terminal for easy to install
  • Dark Silver Finish
Recommendation / Restriction
  • Recommended inside use only

The product's benefits

Installation
  • Quick and Easy plate-rocker clipping system
Usage
  • Practical 2-point lighting control on a single plate
Avantages
  • Technicity and Robustness of the support frame
  • Modern full plate design for a perfect decoration integration

Technical characteristics

Wiring system Two-way switch
Method of operation Rocker/button
Assembly arrangement Basic element with housing top
Push button switch No
Number of rockers 2
Mounting method Flush-mounted
Type of fastening Screw mounting
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free No
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Silver
Colour of switch operator Silver
Label space/information surface No
Lighting No
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Nominal voltage 250 V
Rated current 16 A
Switching current for fluorescent lamps 16 AX
Monitoring contact No
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 86 mm
Device height 87.4 mm
Device depth 39.3 mm
Built-in depth 24.6 mm
Min. depth of built-in installation box 35 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Compliant with UK Building Regulations Part M No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Mandatory neutral No
Terminal marking indication Yes
Terminals capacity (Min-Max) 1-4 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 1-4 mm²
Tube diameter for wall mounted product (Min-Max) 16-32 mm
