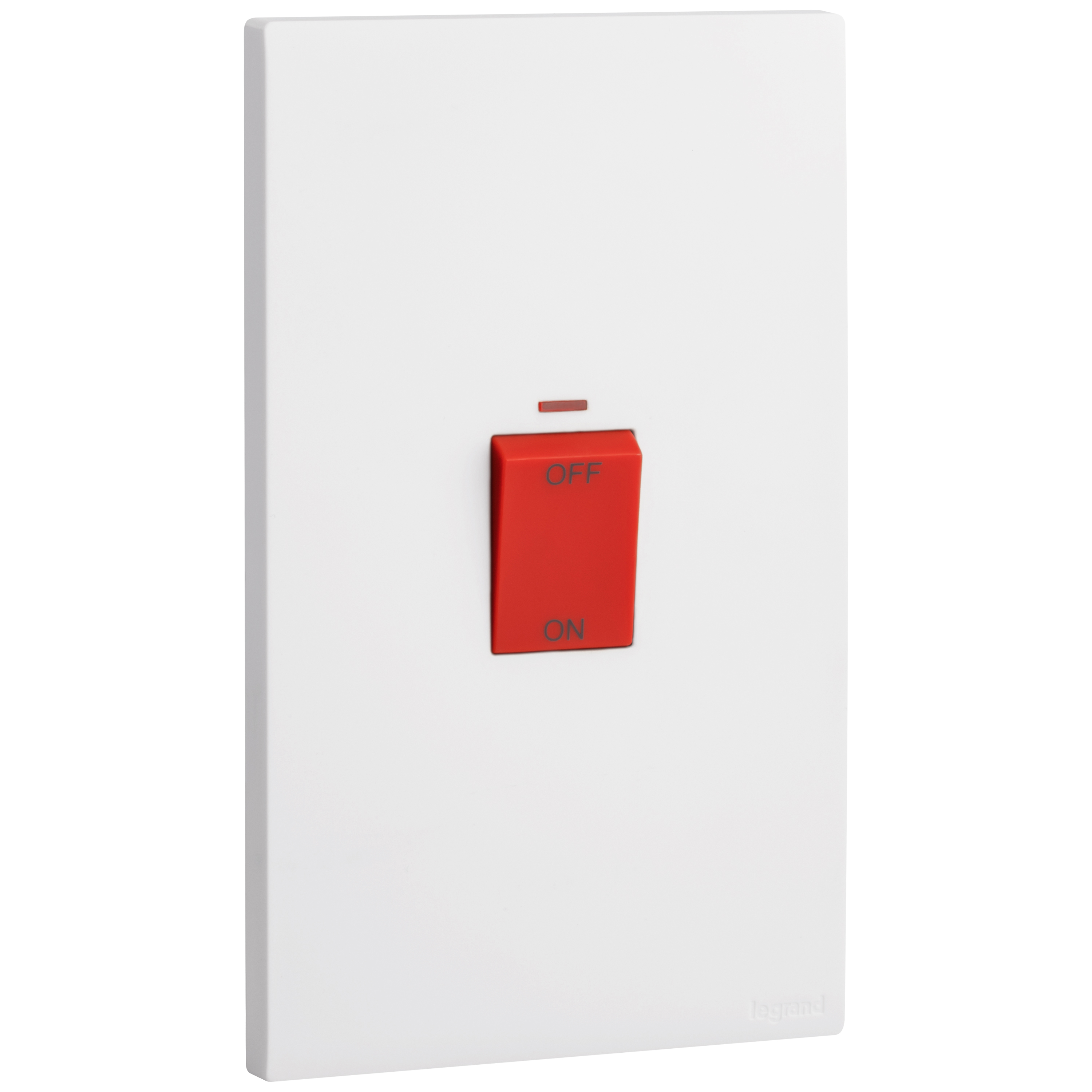

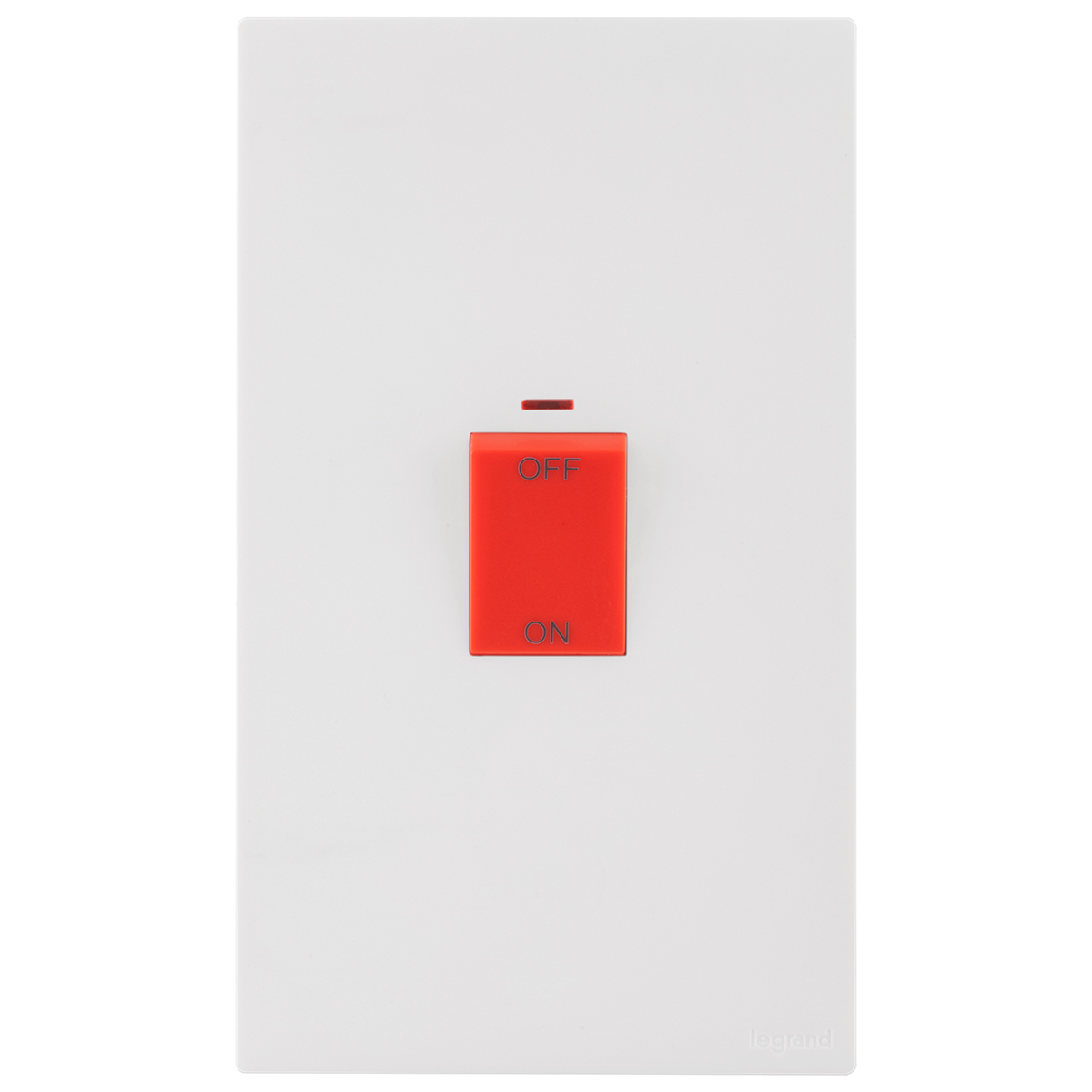

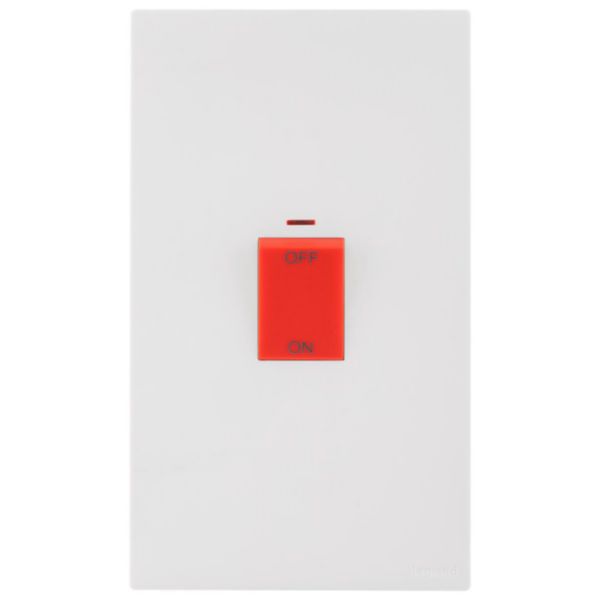

Obria 2 gang 1W Vertical 45A Dp Switch With Red Led Indicator - Matt White

Obria Legrand

Obria 2 gang 1W Vertical 45A Dp Switch With Red Led Indicator - Matt White

REF. MEC21030WH EAN. 3414972667869

Allows to control the power supply to a 45A electrical device. Vertical plate featuring RED LED indicator.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Allows to control the power supply to a 45A electrical device. Vertical plate featuring RED LED indicator.

Product characteristics
  • Sold as a complete set under one cat number
  • 45A, 250V, Double Pole

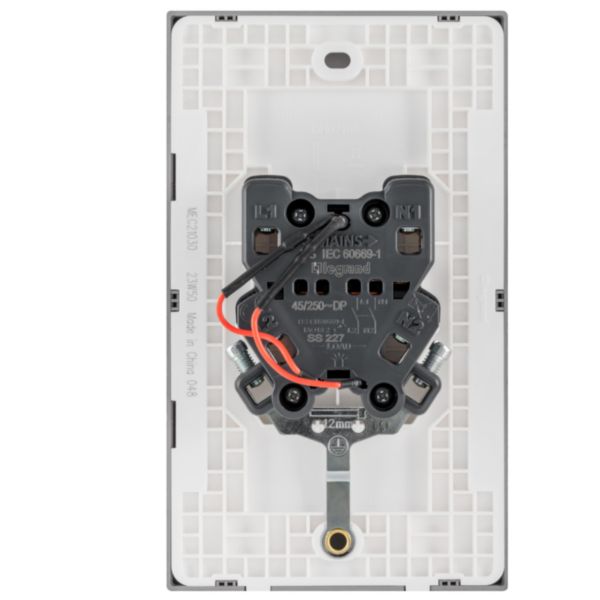

  • Screw type terminals for enhanced contacts and open terminal for easy to install
  • Matt White Finish
Recommendation / Restriction
  • Recommended inside use only

The product's benefits

Installation
  • Quick and Easy plate-rocker clipping system
Usage
  • Complies with British Standards certifications for heavy loads
Avantages
  • Technicity and Robustness of the support frame
  • Modern full plate design for a perfect decoration integration

Technical characteristics

Wiring system Switch 2-pole
Method of operation Rocker/button
Assembly arrangement Basic element with central cover plate
Number of modules (module system) 2
Push button switch No
Number of rockers 1
Mounting method Flush-mounted
Type of fastening Screw mounting
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free No
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour White
RAL-number (similar) 9003
Colour of switch operator Red
Label space/information surface No
Lighting Yes
Function lighting Illuminated (on)
Type of lighting Glow lamp
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Nominal voltage 250 V
Rated current 45 A
Monitoring contact Yes
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 86 mm
Device height 146 mm
Device depth 33.9 mm
Built-in depth 21.8 mm
Min. depth of built-in installation box 35 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Compliant with UK Building Regulations Part M No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Mandatory neutral Yes
Terminal marking indication Yes
Terminals capacity (Min-Max) 1-10 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 1-10 mm²
Tube diameter for wall mounted product (Min-Max) 16-32 mm

Documentation

1 document
Technical Sheet
F04215EN-00.pdf pdf (0.68 Mo)
1 document
Agreement
OC / CB-CN71366 (0.63 Mo)
