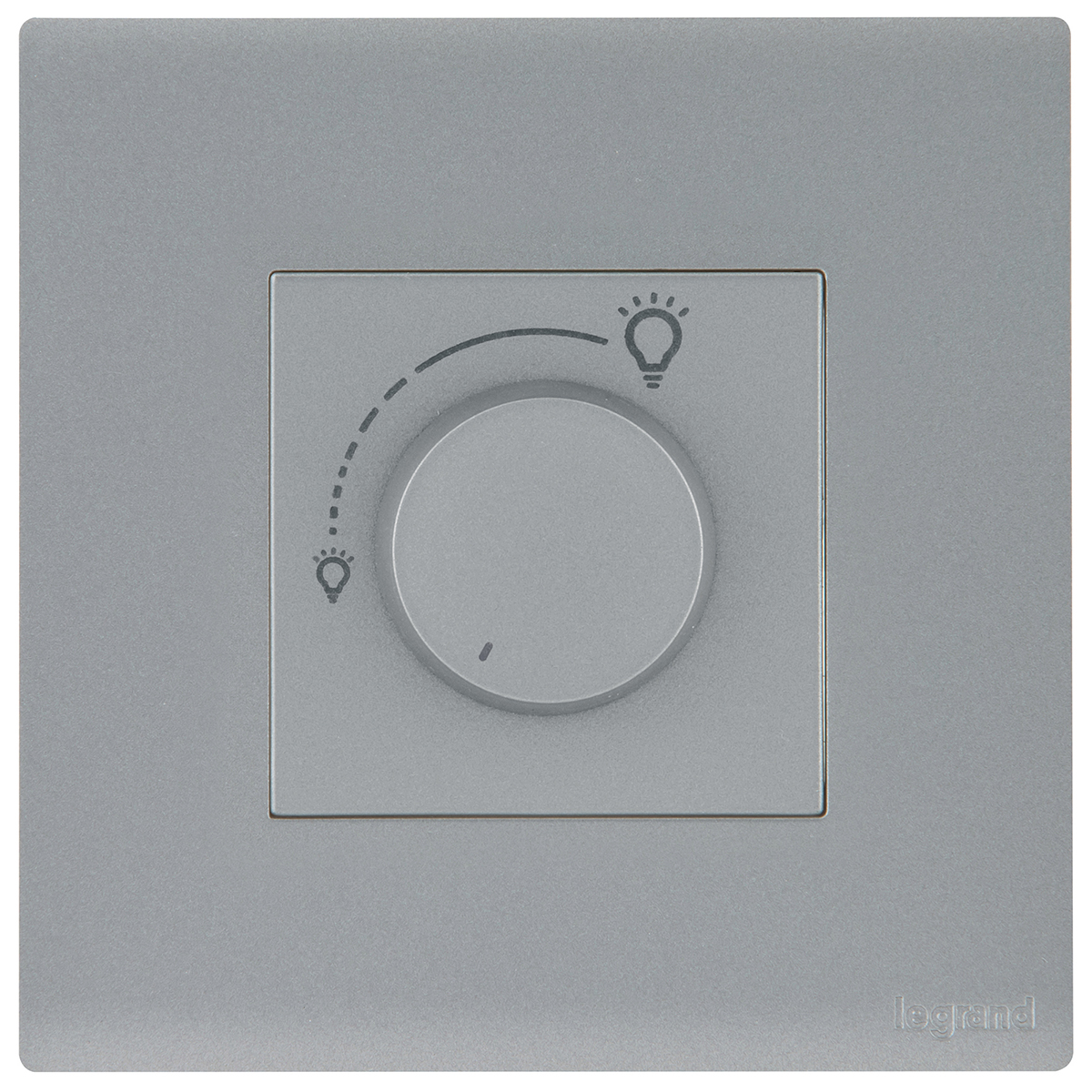

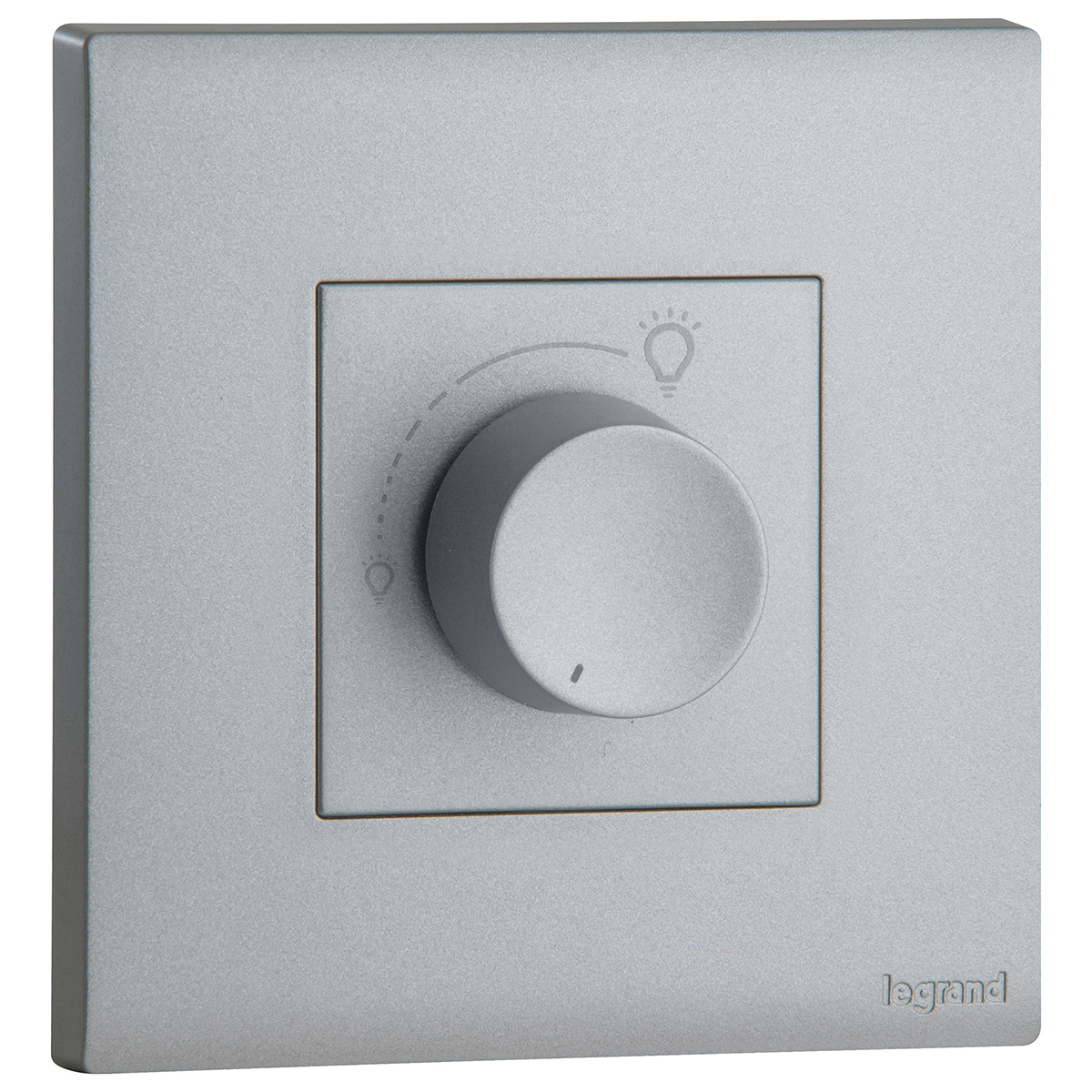

Obria 1 gang 60-400W Incandescent Dimmer 230V - Dark Silver

Name: Obria 1 gang 60-400W Incandescent Dimmer 230V - Dark Silver
SKU: MEC24012SL

Obria Legrand

REF. MEC24012SL EAN. 3414972669511

Allows to increase or decrease lighting intensity and dim from an intimate to a bright atmosphere.

Compare You can only compare 4 products, you must remove 1 to add this one

Allows to increase or decrease lighting intensity and dim from an intimate to a bright atmosphere.

Sold as a complete set under one cat number
60 up to 400W, 230V
Screw type terminals for enhanced contacts and open terminal for easy to install
Dark Silver Finish

Assembly arrangement	Basic element with central cover plate
Method of operation	Turn button
Number of modules (module system)	2
Number of units	1
App control via Bluetooth	No
Dimming phase cut-on (leading edge)	Yes
Dimming phase cut-off (trailing edge)	Yes
Serial dimmer	Yes
Type of load	Resistive load
Substation input	Yes
Light value memory	No
Applicable with button	No
Applicable with movement sensor	No
Applicable with presence indicator	No
Applicable with time switch/timer	No
Applicable with transmission button	No
Applicable with infrared button	No
Min. brightness controllable	No
Mounting method	Flush-mounted
Type of fastening	Mounting with screw
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Surface protection	Lacquered
Surface finishing	Matt
Colour	Silver
Transparent	No

Suitable for degree of protection (IP)	IP20
degree of impact strength (IK)	IK04
Nominal voltage (Min-Max)	230-230 V
Frequency (Min-Max)	50-60 Hz
Control voltage	100-230 V
Nominal power resistive load	60-400 W
Connection type	Screwed terminal
Cable section (Min-Max)	1-4 mm²
Device width	86 mm
Device height	87.4 mm
Device depth	57.3 mm
Min. depth of built-in installation box	35 mm
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
Built-in depth	33 mm
Operating / setting temperature (Min-Max)	-5-35 °C
Storage temperature (Min-Max)	-10-70 °C
Voltage type	AC
Mandatory neutral	No
Terminal marking indication	Yes
Stress test conformity (1000V)	Yes
Antimicrobial treatment	No
Terminals capacity (Min-Max)	1-4 mm²
Cable nature for connection	Other
