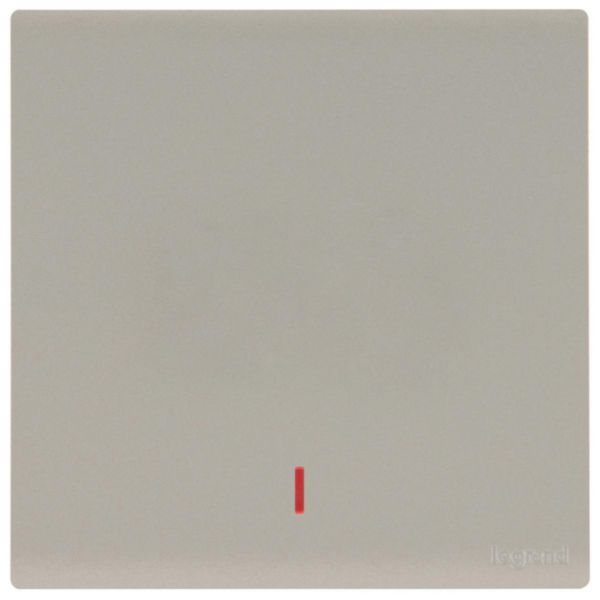

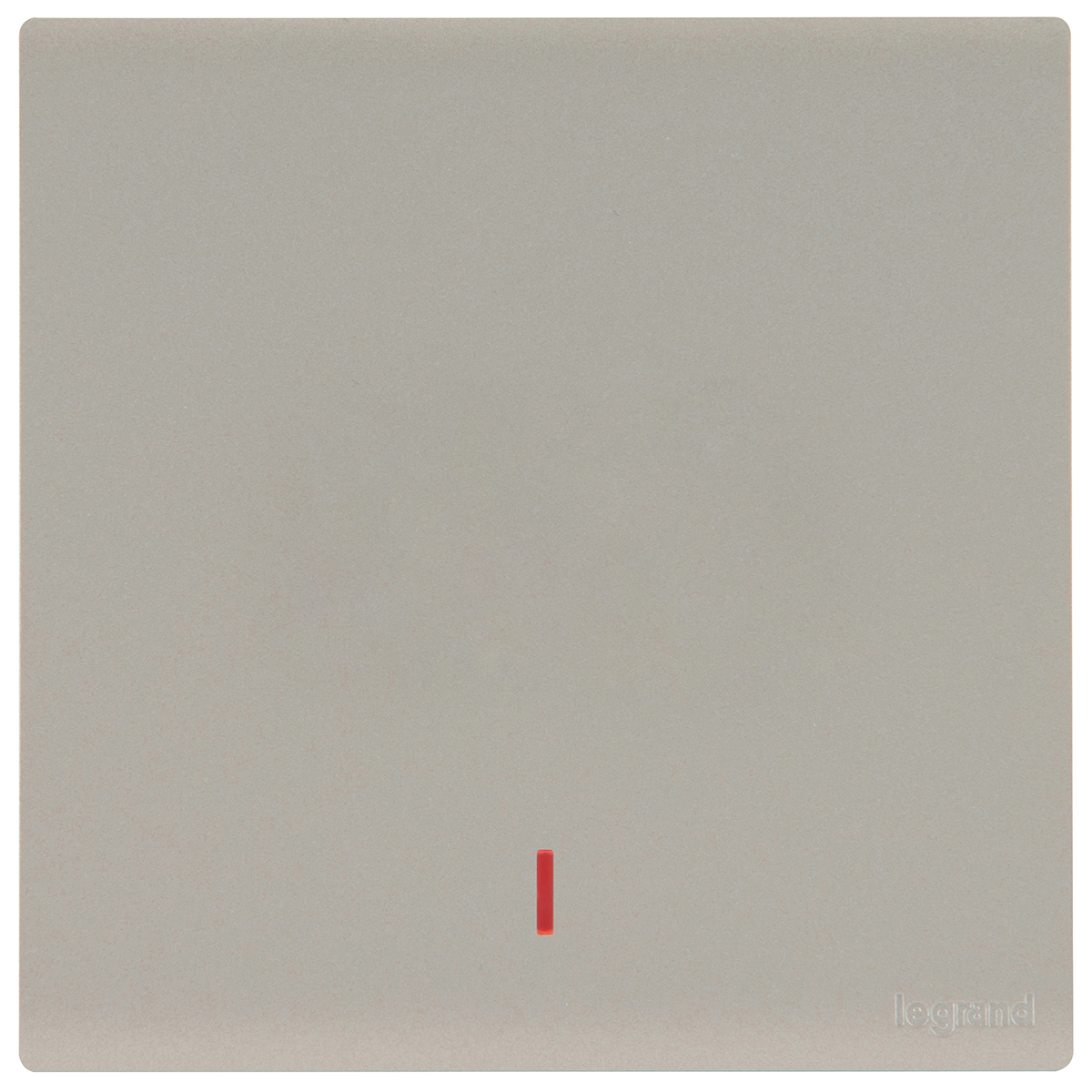

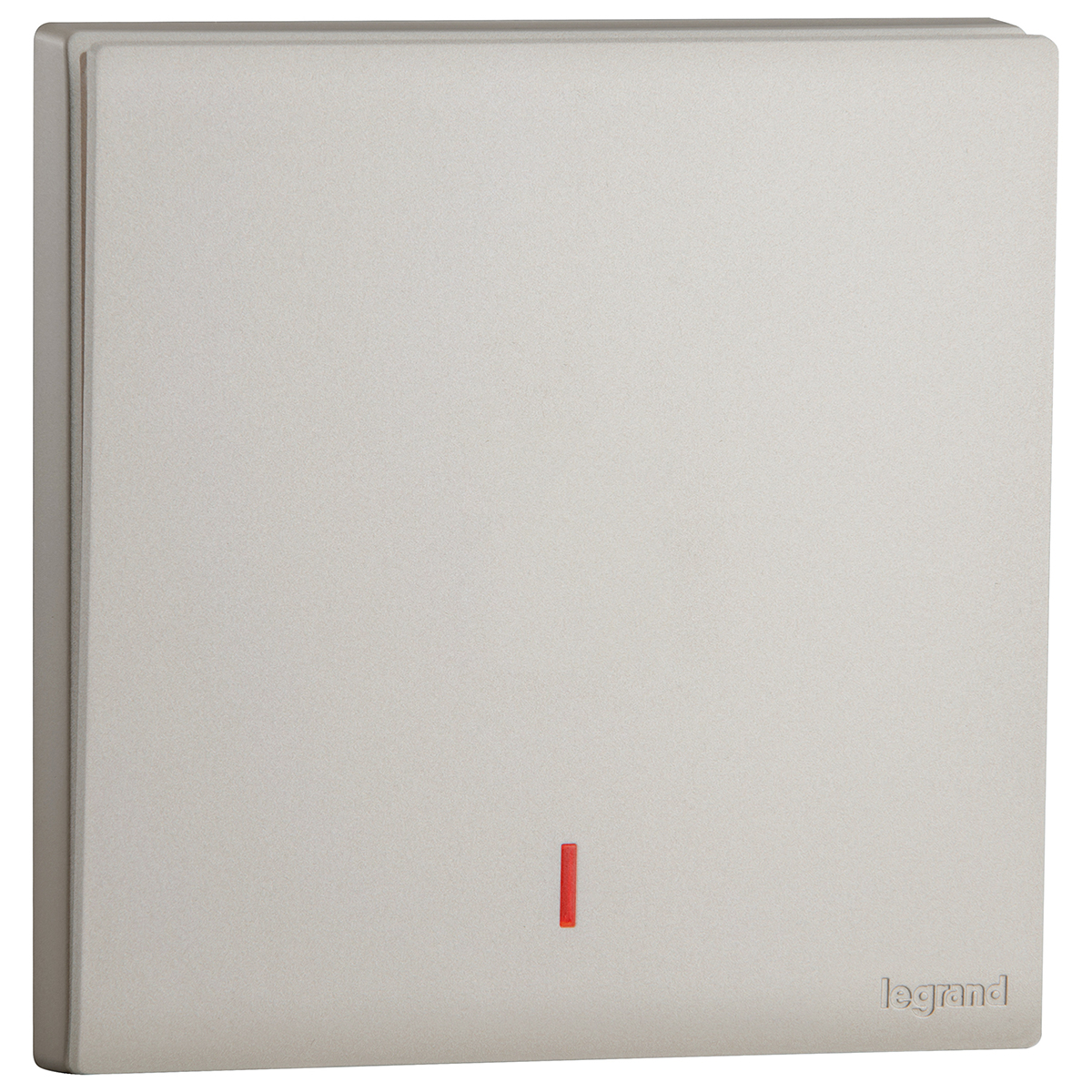

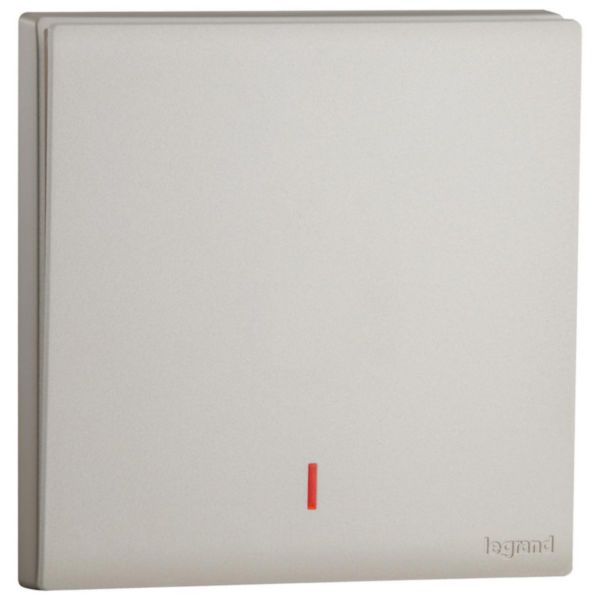

Obria 1 gang 1W 20A Dp Switch With Led And 2 Earth Terminal - Champagne

Obria Legrand

Obria 1 gang 1W 20A Dp Switch With Led And 2 Earth Terminal - Champagne

REF. MEC21041CH EAN. 3414972667920

Allows to control the power supply to an electrical device such as refregirators, water heaters, central heating boilers and other fixed appliances that require 20A. Feature LED indicator & 2 earth terminal

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Allows to control the power supply to an electrical device such as refregirators, water heaters, central heating boilers and other fixed appliances that require 20A. Feature LED indicator & 2 earth terminal

Product characteristics
  • Sold as a complete set under one cat number

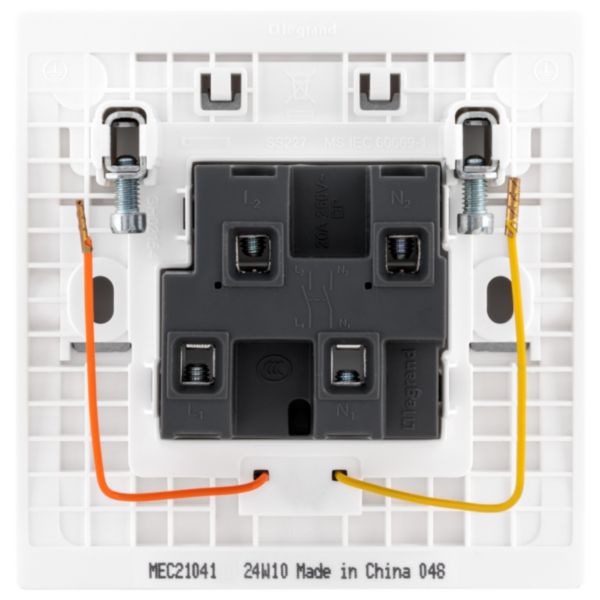

  • 20A, 250V, Double Pole, 2 earths
  • Screw type terminals for enhanced contacts and open terminal for easy to install
  • Champagne finish
Recommendation / Restriction
  • Recommended inside use only

The product's benefits

Installation
  • Quick and Easy plate-rocker clipping system
Usage
  • Complies with British Standards certifications for heavy loads
Avantages
  • Technicity and Robustness of the support frame
  • Modern full plate design for a perfect decoration integration

Technical characteristics

Wiring system Switch 2-pole
Method of operation Rocker/button
Assembly arrangement Basic element with housing top
Push button switch No
Number of rockers 1
Mounting method Flush-mounted
Type of fastening Screw mounting
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free No
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Gold
Colour of switch operator Other
Label space/information surface No
Lighting Yes
Function lighting Illuminated (on)
Type of lighting Glow lamp
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Nominal voltage 250 V
Rated current 20 A
Monitoring contact Yes
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 86 mm
Device height 87.4 mm
Device depth 34.4 mm
Built-in depth 19.7 mm
Min. depth of built-in installation box 35 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Compliant with UK Building Regulations Part M No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Mandatory neutral Yes
Terminal marking indication Yes
Terminals capacity (Min-Max) 1-4 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 1-4 mm²
Tube diameter for wall mounted product (Min-Max) 16-32 mm

Documentation

1 document
Technical Sheet
F04212EN-00.pdf pdf (0.49 Mo)
