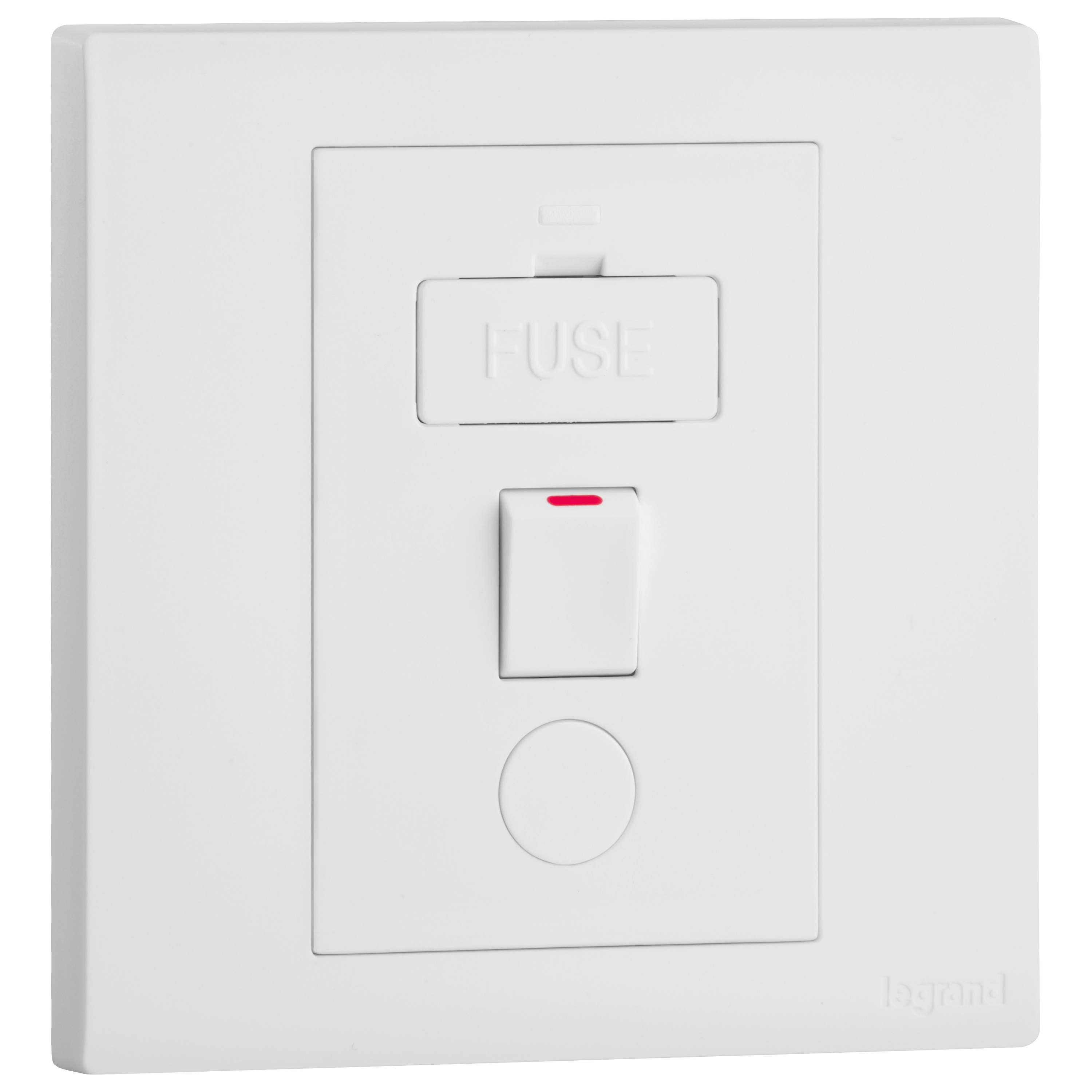

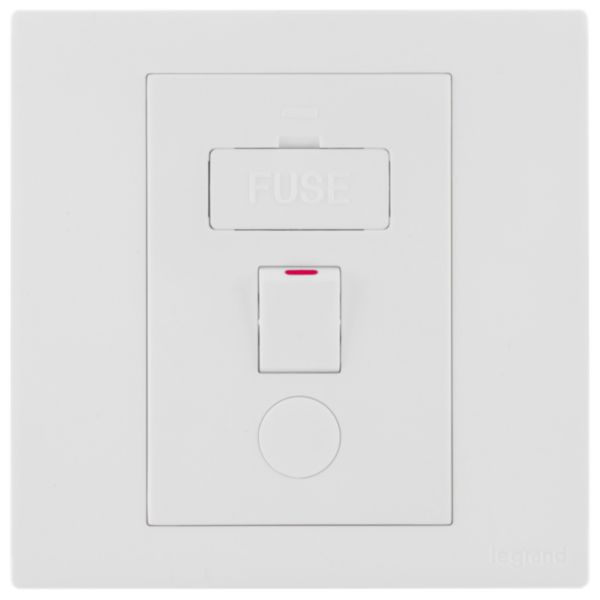

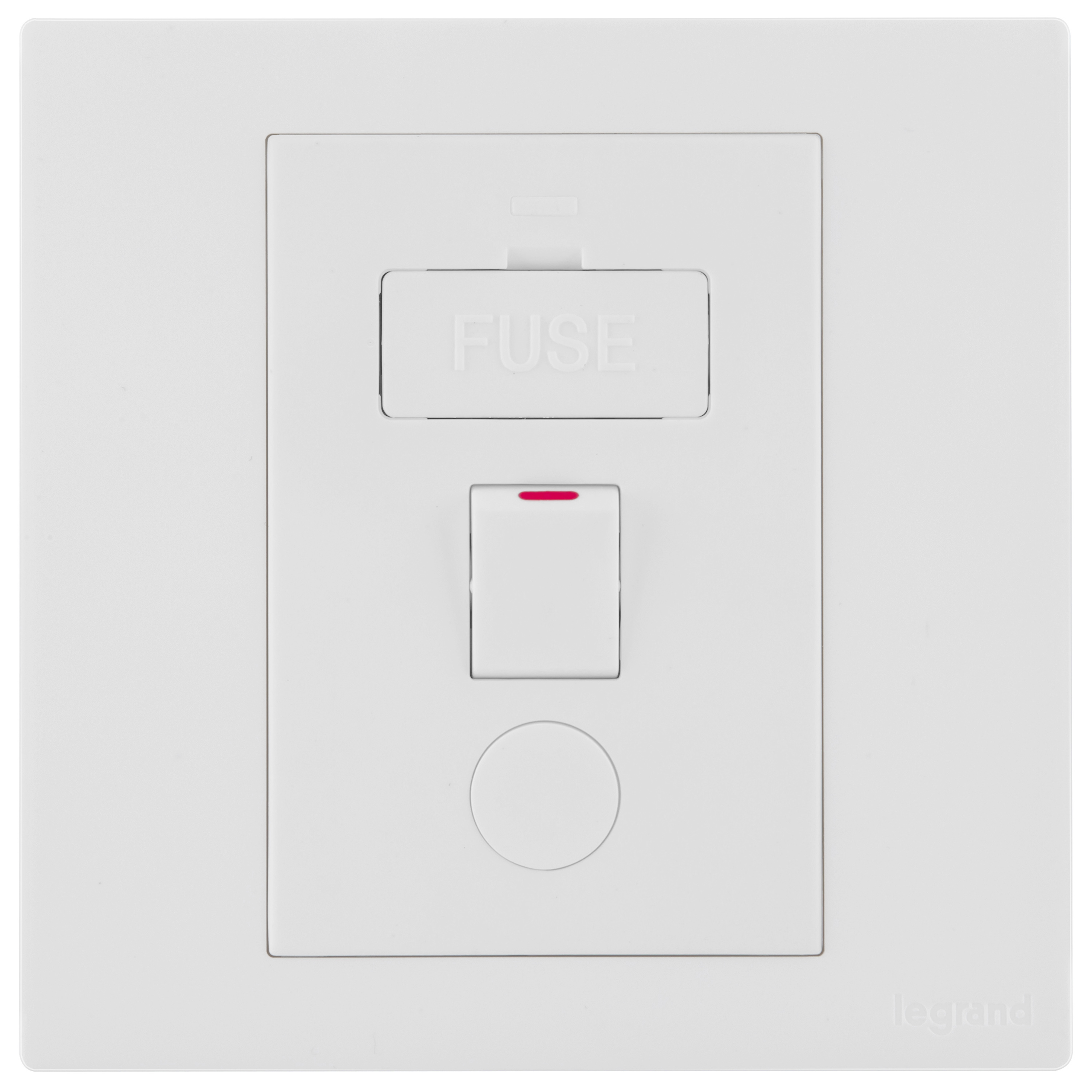

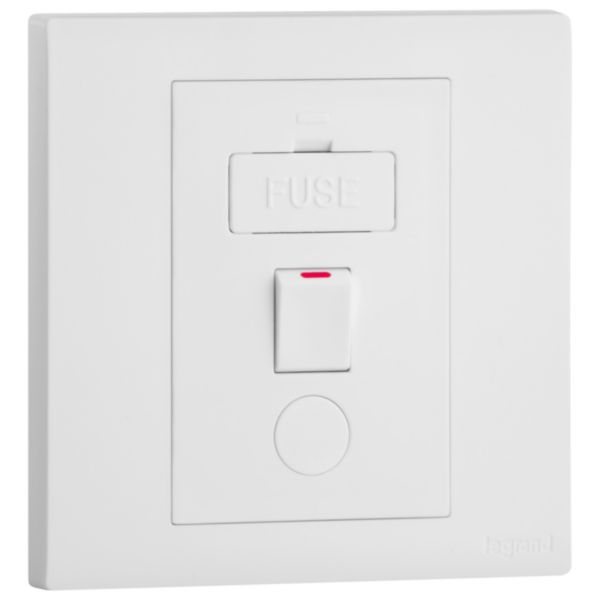

Obria 1 gang 13A Fused Spur Unit Switched - Matt White

Obria Legrand

Obria 1 gang 13A Fused Spur Unit Switched - Matt White

REF. MEC62056WH EAN. 3414972676618

Fused connection unit allows the electrical protection of the device connected to it. Switched product

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Fused connection unit allows the electrical protection of the device connected to it. Switched product

Product characteristics
  • Sold as a complete set under one cat number
  • 13A
  • Screw type terminals for enhanced contacts and open terminal for easy to install
  • Matt White Finish
Recommendation / Restriction
  • Recommended inside use only

The product's benefits

Installation
  • Quick and Easy plate-rocker clipping system
Usage
  • Complies with British Standards certifications for heavy loads. No accessible electrical contact under the plate.
Avantages
  • Technicity and Robustness of the support frame
  • Modern full plate design for a perfect decoration integration
  • Equivalent aesthetic as all other functions

Technical characteristics

Connection type Screw connection
Mounting method Housing mounting
Type of current AC
Rated current 13 A
Rated voltage 250 V
Dimensions glass fuse Other
Width 86 mm
Height 87.4 mm
Depth 32.1 mm
Built-in depth 21.4 mm
degree of impact strength (IK) IK04
Degree of protection (IP) IP20
Operating / setting temperature -5-35 °C
Storage temperature -10-70 °C
Voltage type AC
Nominal voltage 250-250 V
Supply current 13-13 A
Frequency 50-60 Hz
Mandatory neutral Yes
Terminal marking indication Yes
Colour White
RAL-number 9003
Halogen free Yes
Antimicrobial treatment No

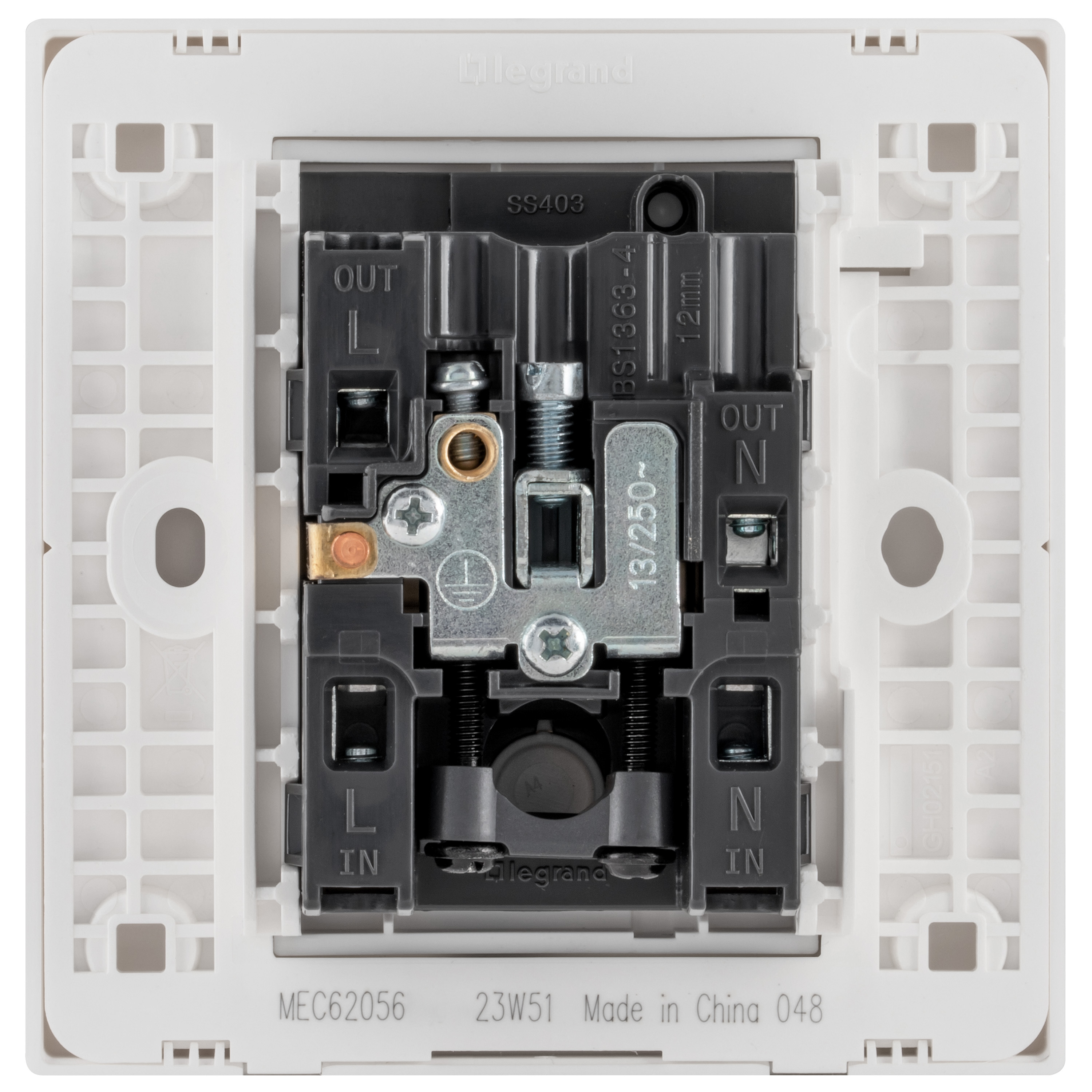

Number of terminals 5
Terminals capacity 1-4 mm²
Cable nature for connection Flexible or rigid
Cable section 1-4 mm²

Documentation

1 document
Technical Sheet
F04219EN-00.pdf pdf (0.58 Mo)
1 document
Agreement
AoC-TA24-0515 (0.32 Mo)
