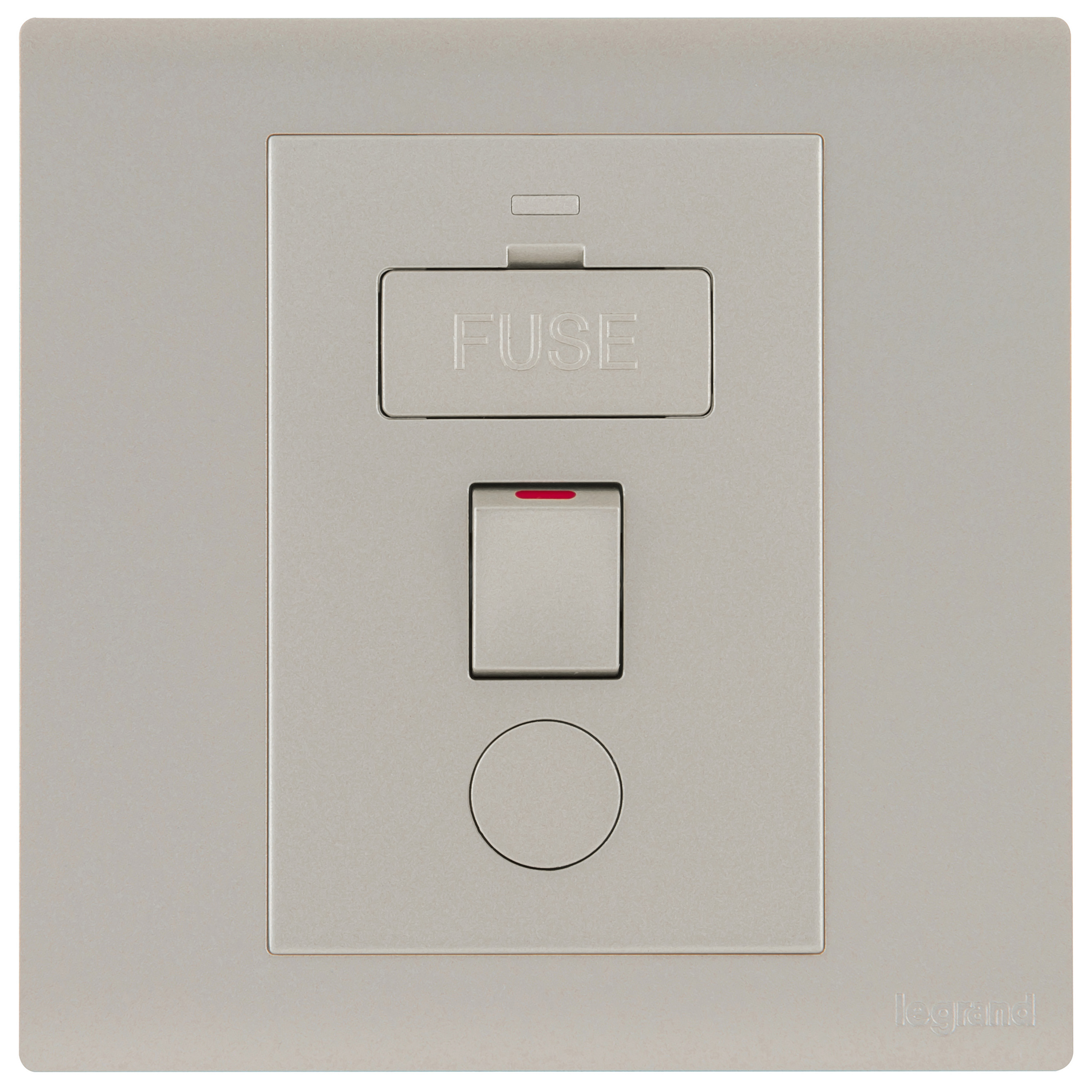

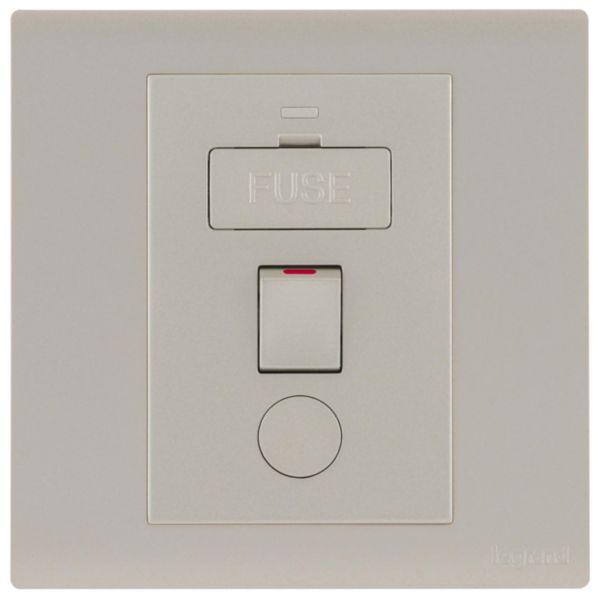

Obria 1 gang 13A Fused Spur Unit Switched - Champagne

Name: Obria 1 gang 13A Fused Spur Unit Switched - Champagne
SKU: MEC62056CH

Obria Legrand

REF. MEC62056CH EAN. 3414972676526

Fused connection unit allows the electrical protection of the device connected to it. Switched product

Compare You can only compare 4 products, you must remove 1 to add this one

Fused connection unit allows the electrical protection of the device connected to it. Switched product

Sold as a complete set under one cat number
13A
Screw type terminals for enhanced contacts and open terminal for easy to install
Champagne finish

Complies with British Standards certifications for heavy loads. No accessible electrical contact under the plate.

Connection type	Screw connection
Mounting method	Housing mounting
Type of current	AC
Rated current	13 A
Rated voltage	250 V
Dimensions glass fuse	Other
Width	86 mm
Height	87.4 mm
Depth	32.1 mm
Built-in depth	21.4 mm
degree of impact strength (IK)	IK04
Degree of protection (IP)	IP20
Operating / setting temperature (Min-Max)	-5-35 °C
Storage temperature (Min-Max)	-10-70 °C

Voltage type	AC
Nominal voltage (Min-Max)	250-250 V
Supply current (Min-Max)	13-13 A
Frequency (Min-Max)	50-60 Hz
Mandatory neutral	Yes
Terminal marking indication	Yes
Colour	Gold
Halogen free	Yes
Antimicrobial treatment	No
Number of terminals	5
Terminals capacity (Min-Max)	1-4 mm²
Cable nature for connection	Flexible or rigid
Cable section (Min-Max)	1-4 mm²
