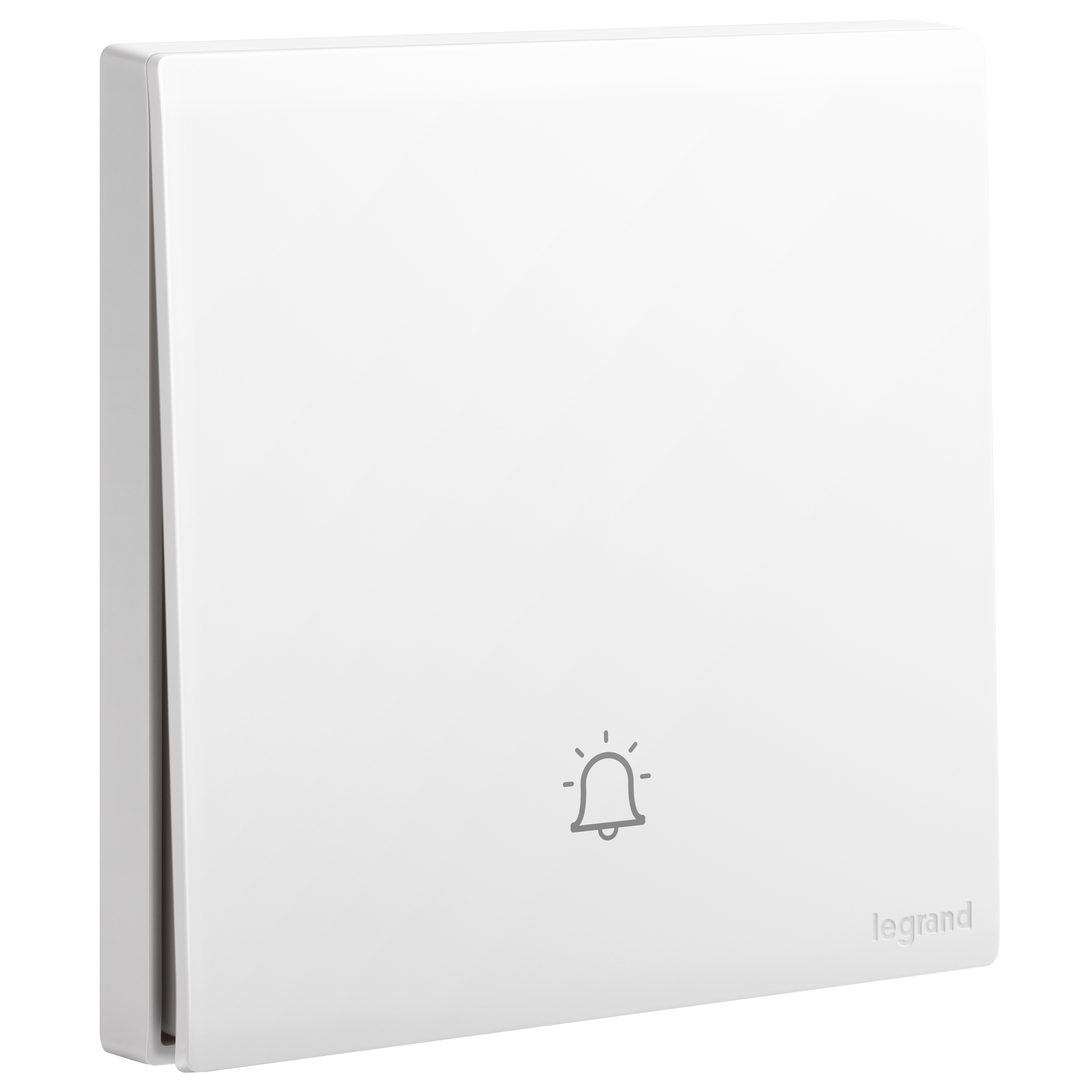

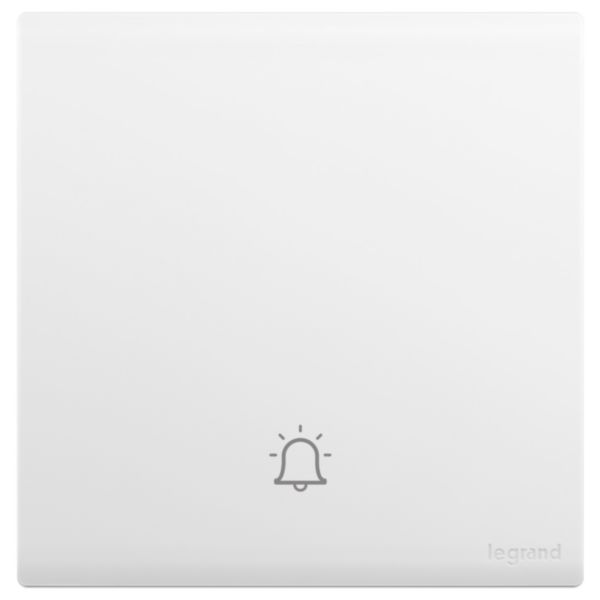

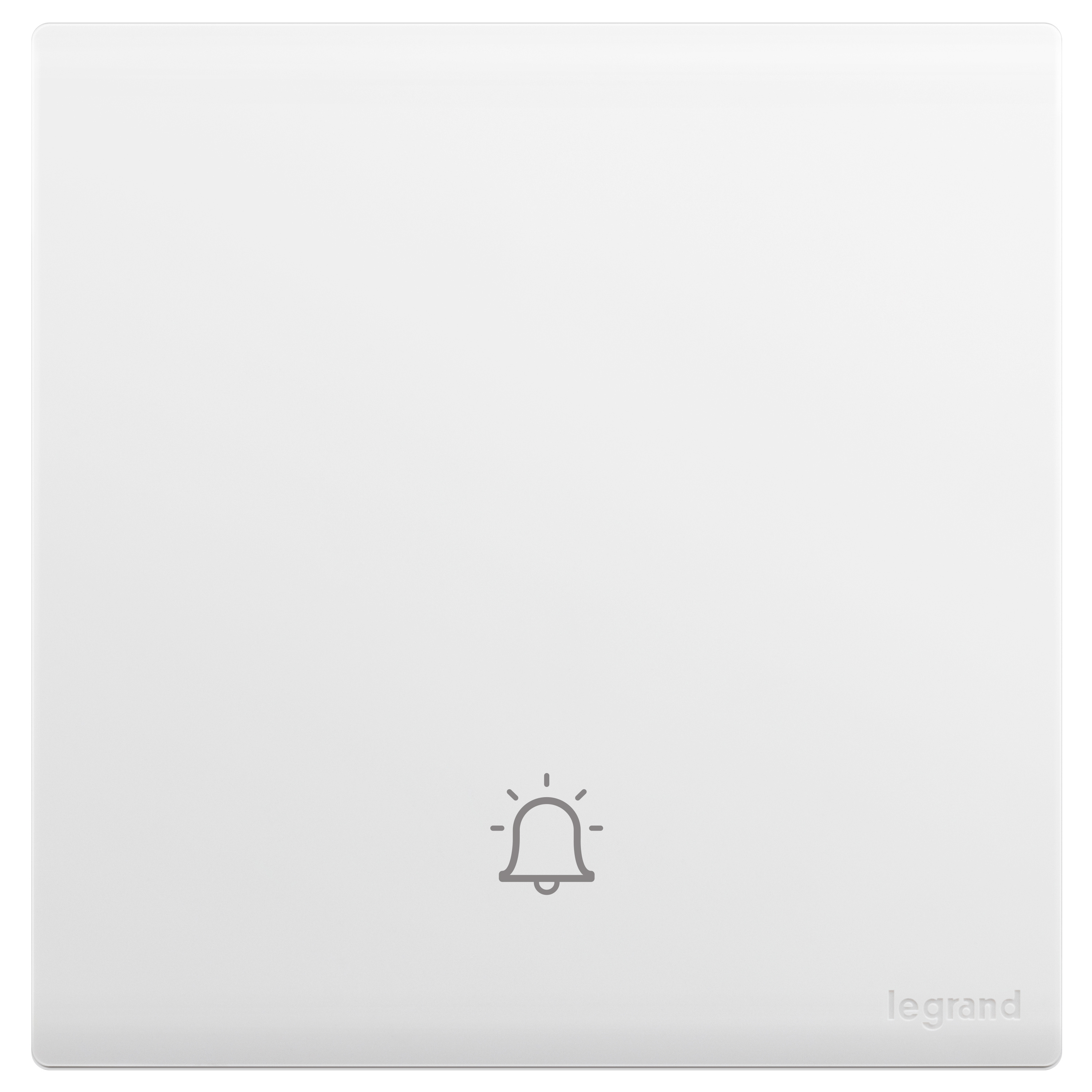

Obria 1 gang 10A Push Button Bell Marking - Matt White

Name: Obria 1 gang 10A Push Button Bell Marking - Matt White
SKU: MEC23023WH

Obria Legrand

REF. MEC23023WH EAN. 3414972669443

This push button is dedicated to door bell use.

Compare You can only compare 4 products, you must remove 1 to add this one

This push button is dedicated to door bell use.

Sold as a complete set under one cat number
10A, 250V
Screw type terminals for enhanced contacts and open terminal for easy to install
Matt White Finish

Assembly arrangement	Basic element with housing top
Model	Single push button
Method of operation	Push button
Operating principle	Electromechanical
Contactless type	No
Number of rockers	1
Number of modules (module system)	2
Number of poles	1
Nominal voltage	250 V
Rated current	10 A
With lighting	No
With light source	No
With complemantary luminous signal	No
Monitoring contact	No
Connection type	Screwed terminal
Mounting method	Flush-mounted
Type of fastening	Engage (snap)
Material	Plastic
Material quality	Thermoplastic
Halogen free	No
Antimicrobial treatment	No
Surface protection	Untreated
Surface finishing	Matt
Colour	White

RAL-number (similar)	9003
Transparent	No
Label space/information surface	No
Imprint	None
Suitable for degree of protection (IP)	IP20
degree of impact strength (IK)	IK04
Device width	86 mm
Device height	87.4 mm
Device depth	39.1 mm
Min. depth of built-in installation box	35 mm
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
Built-in depth	24.4 mm
Operating / setting temperature (Min-Max)	-5-35 °C
Storage temperature (Min-Max)	-10-70 °C
Voltage type	AC
Frequency (Min-Max)	50-60 Hz
Mandatory neutral	No
Terminal marking indication	Yes
Terminals capacity (Min-Max)	1-4 mm²
Cable nature for connection	Flexible or rigid
Cable section (Min-Max)	1-4 mm²
