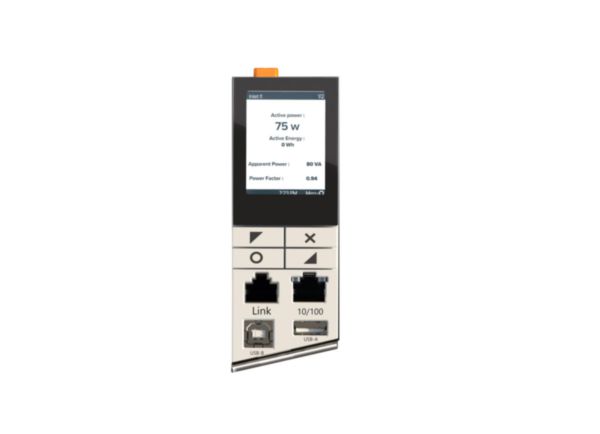

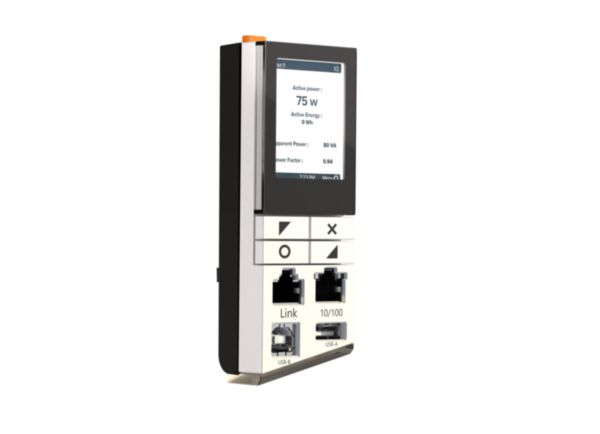

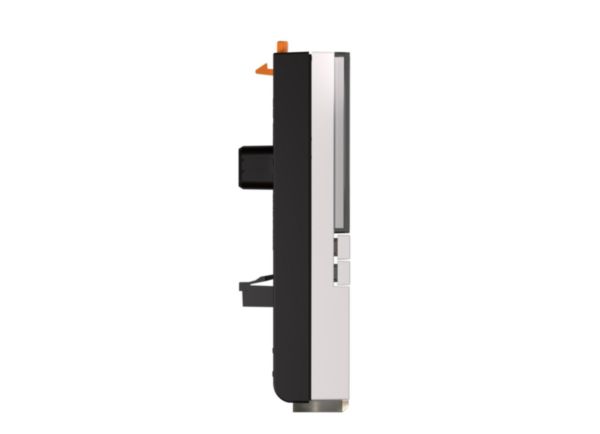

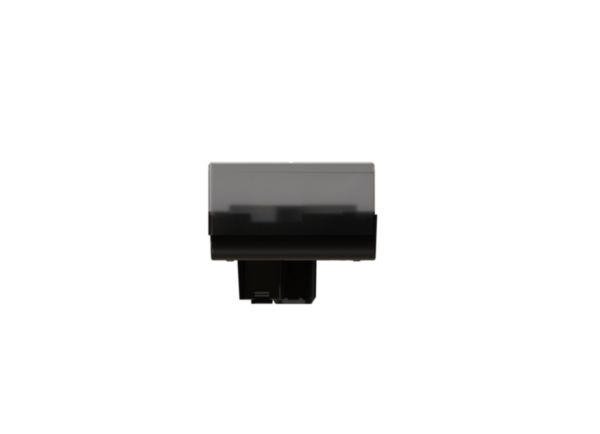

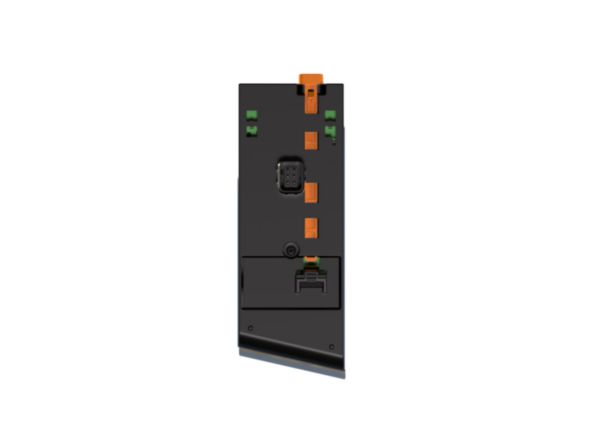

Node controller for Linkeo Data Center PDU

Linkeo LEGRAND

Node controller for Linkeo Data Center PDU

REF. 646130 EAN. 3414972329378
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • 1 RJ45 Ethernet port for networking
  • 1 Link RJ45 port for RS485 cascading
  • 1 USB - A and 1 USB - B ports for cascading and Command - Line Interface (CLI)
  • Monochromatic LCD Screen (180° rotating display)

The product's benefits

Usage
  • The Node controller is hot swappable to allow maintenance or replacement without powering down equipment connected to the PDU.

Technical characteristics

LED indicator inputs No
LED indicator outputs No
With display Yes
With PC connection No
Communication bus Ethernet
Degree of protection (IP) IP20
Expandable No
Independently operating No
DIN-rail mounting No
Suitable for front mounting No
With base plate No
Standard applications available No
Width 41 mm
Height 114.43 mm
Depth 34.7 mm
