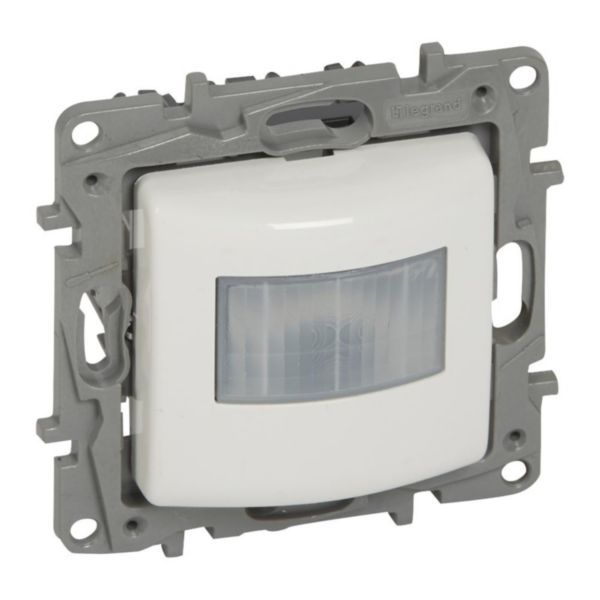

Niloé™ - Universal automatic switch without neutral 100W LED White

Name: Niloé™ - Universal automatic switch without neutral 100W LED White
SKU: 764583A

Niloé™ LEGRAND

REF. 764583A EAN. 3414972396349

Compare You can only compare 4 products, you must remove 1 to add this one

Allows you to control bulbs of the market, LEDs, halogen, compact fluorescent
Powers : 100W Leds/Fluocompact - 150W Halogen - 150VA Leds, CFLs, Halogen, fluo tube with ferromagnetic or electronic transformer
With or without overide depending on the cover used
Compatible box depth 40mm
WHITE

Model	Movement sensor
Movement sensor/presence detector technology	Passive infrared
Constant light control	No
HVAC-control	No
Forced switch on	No
Forced switch off	No
Animal zone	No
Creep-under protection	No
Background monitoring	No
Networkable	No
Scan angle	170 °
Optimum mounting height	1.2 m
Staircase light controller	Yes
Bridging switch	No
Max. reach sideways	6 m
Max. presence range	32 m²
Max. reach frontally	8 m
Suitable for wireless transmission	No
Remote operation	Yes
Supplied remote control	No
Response value sensitivity adjustable	Yes
Response value luminosity adjustable	Yes
With signal unit	Yes
Teach-function for response value luminosity	No
Dim function with dimmer basic element	No
Mounting method	Flush-mounted
Suitable for ceiling mounting	No
Suitable for wall mounting	Yes
Connection type	Screwed terminal
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Surface protection	Untreated
Surface finishing	Glossy
Antimicrobial treatment	No
Colour	White
Transparent	No
Degree of protection (IP)	IP20
degree of impact strength (IK)	IK04
Voltage type	AC

Frequency (Min-Max)	50-60 Hz
Nominal voltage (Min-Max)	110-240 V
Min. switch-on time	5 s
Max. duty cycle	30 min
Switch-off delay	0 s
Switching-on delay	0 s
Detection angle horizontal (Min-Max)	85-85 °
Pivoting range sensor, horizontal (Min-Max)	0-0 °
Pivoting range sensor, vertical (Min-Max)	0-0 °
Response value luminosity (Min-Max)	5-1275 lx
Max. switching power	150 W
Max. switching power LED	100 W
Suitable for C-load	Yes
Number of switching zones	1
Substation input	Yes
With alarm function	No
With acoustic sensor	No
Ambient temperature (Min-Max)	5-35 °C
Width	74.7 mm
Height	74.7 mm
Built-in depth	24 mm
Min. depth of built-in installation box	30 mm
With connection cable	No
Connection cable length	0 mm
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
Operating / setting temperature (Min-Max)	5-35 °C
Storage temperature (Min-Max)	-10-70 °C
Standby consumption	0.04 mA
Mandatory neutral	No
Terminal marking indication	Yes
Terminals capacity (Min-Max)	1.5-2.5 mm²
Cable nature for connection	Flexible or rigid
Label space/information surface	No
Entry membrane gland type	Not applicable
Horizontal fixing center distance (Min-Max)	59.9-60.1 mm
Auto switch	Yes
