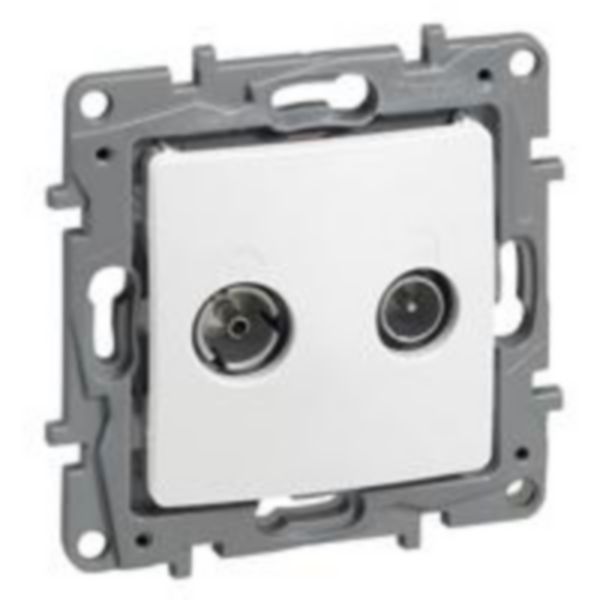

Niloé™ - TV-SAT passthrough socket - attenuation -14 dB - White

Name: Niloé™ - TV-SAT passthrough socket - attenuation -14 dB - White
SKU: 764557

Niloé™ LEGRAND

REF. 764557 EAN. 3414970683434

Compare You can only compare 4 products, you must remove 1 to add this one

Nilo - television passthrough and terminal sockets - Mechanisms supplied with cover plates and support frames. To be equipped with plates . Fixing with screws or claws (supplied) - Installation in case of maintenance. An amplifier and a line balancing are recomm ended - TV : male connector (9.5 mm ) - R : female connector (9.5 mm ) - SAT : ''F type'' connector - Recomm ended coaxial cable : 17 VATC - Visual checking of the connection - TV : 5 - 68 / 120 - 862 MHz - R : 87.5 - 108 MHz - SAT : 950 - 2400 MHz
Passthrough sockets - Attenuation : - 14 dBTV - SAT - White

Model	Loop-through socket
Type of socket outlet	TV/SAT
DAB+	No
Mounting method	Flush-mounted
Assembly arrangement	Basic element with central cover plate
Tap loss at 860 MHz	14 dB
Tap loss at 2150 MHz	14 dB
Number of outlets	2
Suitable for cable modem	No
Through loss at 860 MHz	1.5 dB
Through loss at 2150 MHz	1.5 dB
Suitable for remote power supply	Yes
Colour	White
RAL-number (similar)	9003

Surface protection	Untreated
Surface finishing	Glossy
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Antimicrobial treatment	No
Degree of protection (IP)	IP21
degree of impact strength (IK)	IK04
Device width	75.8 mm
Device height	75.8 mm
Device depth	28.3 mm
Min. depth of built-in installation box	40 mm
Operating / setting temperature (Min-Max)	5-45 °C
Storage temperature (Min-Max)	-25-70 °C
