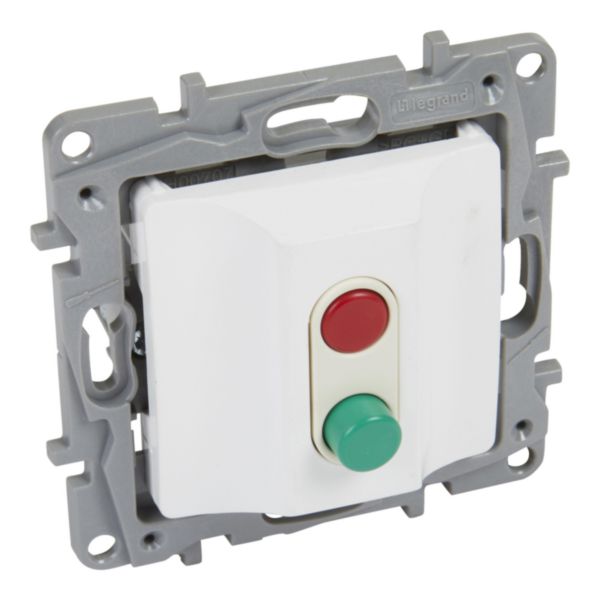

Niloé™ - Dismatic switch - 20 A - screw terminals - White

Name: Niloé™ - Dismatic switch - 20 A - screw terminals - White
SKU: 764519

Niloé™ LEGRAND

REF. 764519 EAN. 3414970682062

Compare You can only compare 4 products, you must remove 1 to add this one

Nilo - switches, push - buttons and Accessories - Mechanisms supplied with cover plates and support frames in flow - pack - To be equipped with plates - Fixing with screws or claws (supplied) - Automatic or screw terminals
Dismatic switches - Screw terminals - White - 15 A

Built-in depth	32 mm
Release characteristic	S
Number of poles (total)	1
Rated current	20 A
Rated voltage	240 V
Voltage type	AC
Frequency (Min-Max)	50-60 Hz
Flush-mounted installation	Yes
Concurrently switching neutral conductor	No
Additional equipment possible	Yes
Degree of protection (IP)	IP2X
Ambient temperature during operating (Min-Max)	-10-70 °C
Explosion-proof	No

Width	75.8 mm
Height	75.8 mm
Depth	32 mm
degree of impact strength (IK)	IK04
Storage temperature (Min-Max)	-30-60 °C
Electric supplying direction	From the bottom
Terminal marking indication	Yes
Colour	White
RAL-number	9003
Halogen free	Yes
Connection type	Screwed terminal , Cable
Label space/information surface	No
Mounting method	Flush-mounted
