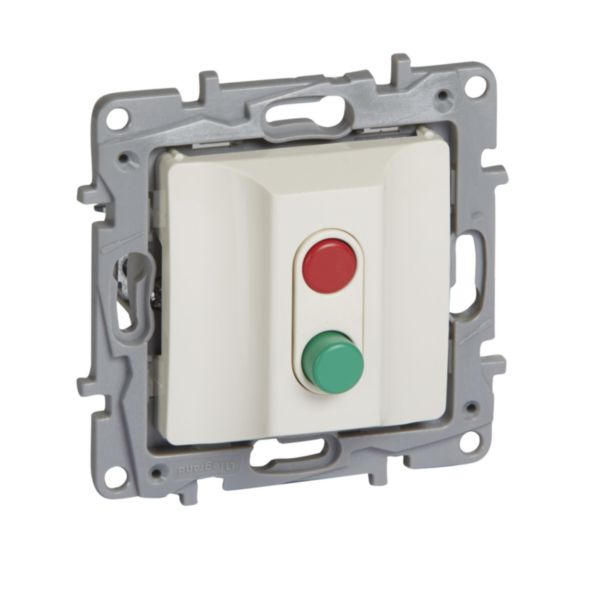

Niloé™ - Dismatic switch - 15 A - screw terminals - Ivory

Name: Niloé™ - Dismatic switch - 15 A - screw terminals - Ivory
SKU: 764618

Niloé™ LEGRAND

REF. 764618 EAN. 3414970683700

Compare You can only compare 4 products, you must remove 1 to add this one

Nilo - switches, push - buttons and Accessories - Mechanisms supplied with cover plates and support frames in flow - pack - To be equipped with plates - Fixing with screws or claws (supplied) - Automatic or screw terminals
Dismatic switches - Screw terminals - Ivory - 15 A

Built-in depth	48 mm
Number of poles (total)	1
Rated current	15 A
Rated voltage	240 V
Voltage type	AC
Frequency	50-60 Hz
Flush-mounted installation	Yes
Additional equipment possible	Yes
Degree of protection (IP)	IP2X
Ambient temperature during operating	-30-60 °C

Width	81 mm
Height	81 mm
Depth	48 mm
degree of impact strength (IK)	IK04
Storage temperature	-30-60 °C
Colour	Other
Halogen free	Yes
Connection type	Screwed terminal
Label space/information surface	No
Mounting method	Flush-mounted

2 documents

Select all

Technical Sheet

F02371EN-00.pdf pdf (0.18 Mo)

Technical Sheet

F02371FR-00.pdf pdf (0.18 Mo)

1 document

Select all

Catalogue Commercial Page

ex223001_0743.pdf pdf (0.15 Mo)
