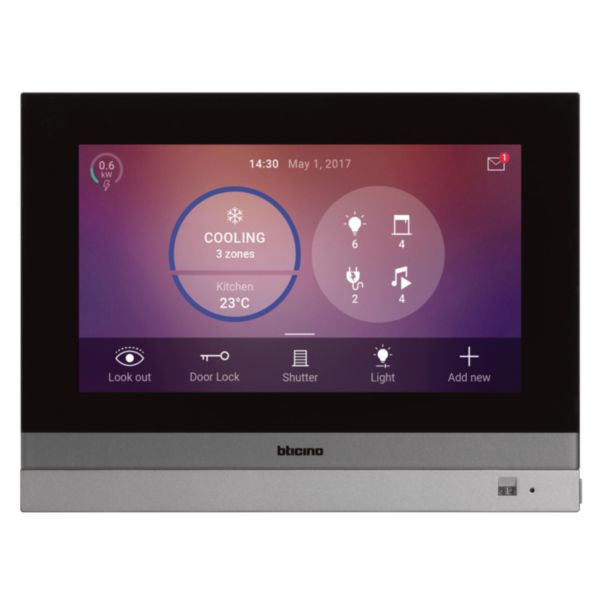

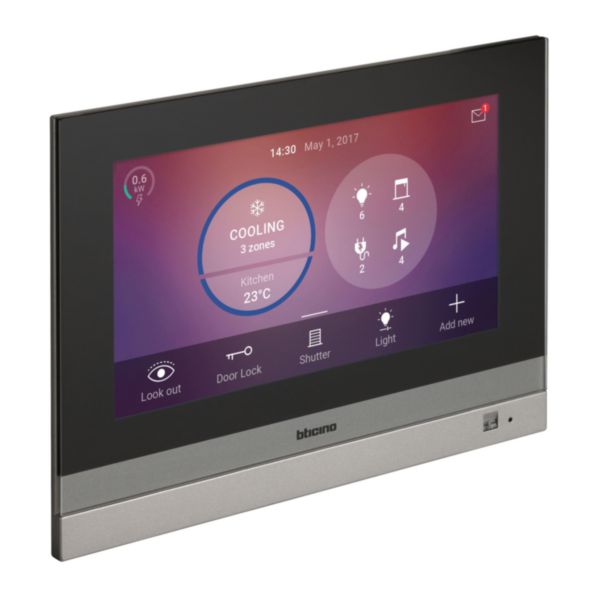

Myhome Up - Hometouch 7 inches screen - Door entry management - System control via SCS/WiFi - Flush-mounted aluminium finish

Bticino

Myhome Up - Hometouch 7 inches screen - Door entry management - System control via SCS/WiFi - Flush-mounted aluminium finish

REF. 3488 EAN. 8005543612033

Hometouch is a connected 2-wire handsfree video internal unit for MyHOME_Up, featuring a 7mm-thin flush-mounted glass design, Ethernet interface, video door entry management, Door Entry app connectivity, and system status visualisation.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Hometouch is a connected 2-wire handsfree video internal unit for MyHOME_Up, featuring a 7mm-thin flush-mounted glass design, Ethernet interface, video door entry management, Door Entry app connectivity, and system status visualisation.

Product characteristics
  • Ready for immediate operation post-installation, requiring no configuration tools and supporting SCS and Wi-Fi 2.4G connectivity.
  • Enables comprehensive management of video door entry functions via the Door Entry app, with both local and remote access, and supports hands-free operation.
  • Features an intuitive graphical user interface for full overview and control of the MyHOME_Up system, including lights, shutters, temperature, and music, with customisable function settings.
  • Flush-mounted installation with a minimal built-in depth of 7mm and overall thickness of 7.2mm, ensuring a sleek profile.
  • Compatible with existing mounting boxes, facilitating straightforward retrofit and upgrade applications.

The product's benefits

Installation
  • Ready to use as soon as installed, without configuration tools. Flush mounting installation to guarantee minimum thickness (7.2mm) and also compatibility with existing boxes.
Avantages
  • A unique device that works as connected video internal unit and home system control
  • A unique device that works as connected video internal unit and home system control
  • A unique device that works as connected video internal unit and home system control

Technical characteristics

Bus system KNX No
Bus system KNX-RF (Radio Frequency) No
Bus system radio frequency No
Bus system LON No
Bus system Powernet Yes
Other bus systems Other
Radio frequency bidirectional Yes
Assembly arrangement Control element
Model Control tableau
Mounting method Flush-mounted
Touch function Yes
Additional interfaces Ethernet
With bus connection Yes
Material Glass
Material quality Other
Colour Black
RAL-number (similar) 9005
Degree of protection (IP) Other
Width 196 mm
Height 147 mm
Depth 25 mm
Built-in depth 7 mm
degree of impact strength (IK) Not applicable
Operating / setting temperature (Min-Max) 5-35 °C
Storage temperature (Min-Max) -10-70 °C
Hands free Yes
Loudness setting Yes
Addressable Yes
Remote opening of gate / Electric door opener Yes
Screen resolution 852x480
Screen brightness setting Yes
Screen contrast setting Yes
Contains Batteries and/or Accumulator No
Connected object Yes
Operating method SCS , Wifi network 2.4G
Application store for download Google Play Store , Mac Apple Store
Programmable Yes
Connectable by Internet box Yes
Application name Door Entry
Product use function Control & command systems
Software Update Duration (years) 3

Documentation

4 documents
Technical Guide
RA00162AE_EN.pdf pdf (96.14 Mo)
Technical Sheet
ST-00000724-FR.pdf pdf (1.7 Mo)
Technical Guide
RA00162AE_FR.pdf pdf (96.22 Mo)
Technical Sheet
ST-00000724-EN.pdf pdf (1.7 Mo)
1 document
Agreement
3 documents
Software
Readme MyHome_Suite pdf (0.56 Mo)
Firmware
Software
MyHOMESuite v3.5.31 exe (599.4 Mo)
