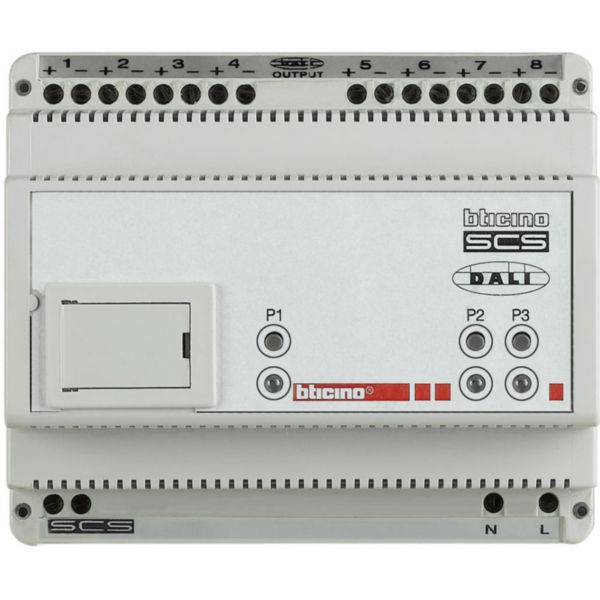

MyHOME dimmer DALI with 8 independent outputs to control up to 16 ballasts DALI each - DIN 6 modules

My Home Up BTICINO

MyHOME dimmer DALI with 8 independent outputs to control up to 16 ballasts DALI each - DIN 6 modules

REF. BT-F429 EAN. 8012199850542
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • 8 DALI outputs controlling up to 16 ballast each
  • Power supply : 110 – 240 Vac @ 50/60 Hz; 110 – 240 Vdc
  • DIN 6 modules
  • Current draw: 5 mA
Recommendation / Restriction
  • For this device, the MyHOME Server automatically configures 8 channels

The product's benefits

Installation
  • Can be installed in a MyHOME system and use the physical or virtual configuration
Usage
  • Pushbutton for direct command of the load
Avantages
  • MyHOME_Up is the new Smart home-automation solution which eliminates the concept of configuration and allows each installer to make the best home automation systems with a few simple start-up operations

Technical characteristics

Bus system KNX No
Bus system KNX-RF (Radio Frequency) No
Bus system radio frequency No
Bus system LON No
Bus system Powernet No
Other bus systems Other
Model Other
Mounting method DRA (DIN-rail adaptor)
Width in number of modular spacings 6
Demounting protection No
With LED indication Yes
Updateable No
Operating voltage (Min-Max) 110-240 V
Protocol Other
Provider dependent No
Visualization No
Web-Server No
Radio interface No
IR interface No
Degree of protection (IP) IP20
Operating / setting temperature (Min-Max) 5-45 °C
Halogen free Yes
Connection type Screwed terminal
Label space/information surface No
Fitted with USB plug No
Contains Batteries and/or Accumulator No

Documentation

3 documents
Instruction Use
U2068C.pdf pdf (1.45 Mo)
Technical Sheet
ST-00000936-EN_ver3.pdf pdf (0.19 Mo)
Technical Sheet
2 documents
Catalogue Technical Page
ex223001_0646.pdf pdf (0.04 Mo)
Catalogue Commercial Page
ex223001_0645.pdf pdf (0.07 Mo)
