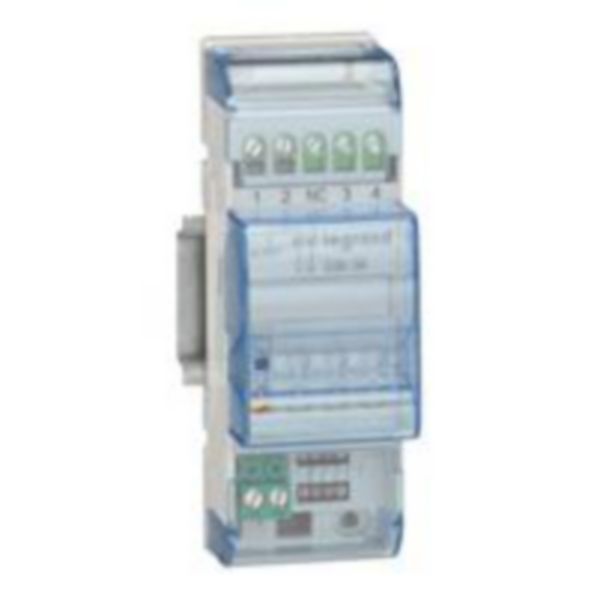

MyHOME dimmer 1-10V - DIN 2 modules

My Home Up BTICINO

MyHOME dimmer 1-10V - DIN 2 modules

REF. F413N EAN. 8012199894461
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • 1 output 1 - 10V controlling up to 10 ballasts
  • Power supply via SCS BUS : 27 Vdc
  • DIN 2 modules
  • Current draw: 30 mA
Recommendation / Restriction
  • For this device, the MyHOME Server automatically configures 1 channel

The product's benefits

Installation
  • Can be configured in two ways:- PHYSICAL CONFIGURATION, inserting the configurators in position- Configuration via MyHOME_Suite software package
Usage
  • Pushbutton for direct command of the load
Avantages
  • MyHOME_Up is the new Smart home-automation solution which eliminates the concept of configuration and allows each installer to make the best home automation systems with a few simple start-up operations

Technical characteristics

Bus system KNX No
Bus system KNX-RF (Radio Frequency) No
Bus system radio frequency No
Bus system LON No
Bus system Powernet No
Other bus systems Other
Radio frequency bidirectional No
Model Dimming actuator
Mounting method DRA (DIN-rail adaptor)
Width in number of modular spacings 2
With bus connection Yes
Bus module detachable No
Substation input No
Local operation/hand operation Yes
With LED indication Yes
Number of outputs 1
Output power (Min-Max) 0-460 W
Power boost suitable Yes
Type of load Capacitive
Max. control current 6 mA
Parallel-service possible No
Frequency (Min-Max) 50-60 Hz
Degree of protection (IP) IP20
Compatible with Casambi No

Documentation

3 documents
Technical Sheet
ST-00000901-EN.pdf pdf (0.26 Mo)
Instruction Use
U2099C.pdf pdf (1.02 Mo)
Technical Sheet
ST-00000901-FR.pdf pdf (0.27 Mo)
2 documents
Catalogue Technical Page
ex223001_0646.pdf pdf (0.04 Mo)
Catalogue Commercial Page
ex223001_0645.pdf pdf (0.07 Mo)
