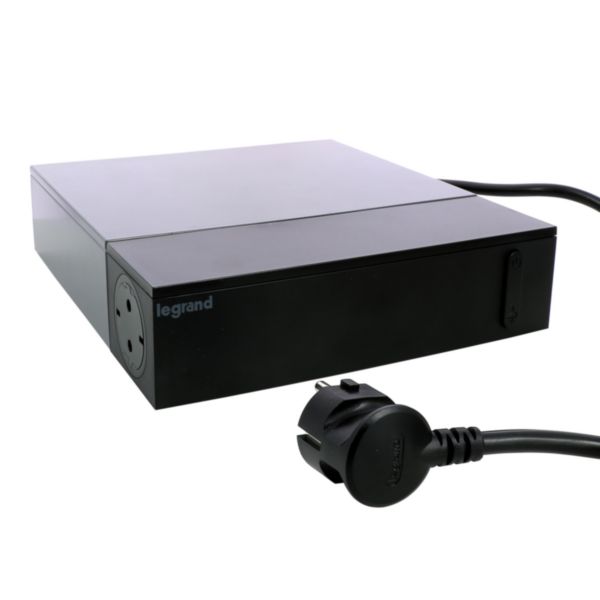

Multi-outlet extension sch 4x2P+T + 4x2P 6A corner TV surge protection 2m 1,5mm2 black

LEGRAND

Multi-outlet extension sch 4x2P+T + 4x2P 6A corner TV surge protection 2m 1,5mm2 black

REF. 694595 EAN. 3414972001359
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Multi-outlet extension with 4 sockets 2P+T 16A, of witch 1 flush, schuko standard and 4 sockets 2P 6A. Total power 3680W, 230V
  • Product designed for a perfect integration in TV corner.
  • Multi-outlet extension with surge protection. Operation : green light, the multi-outlet extension is protected. With the light off, the surge protection is no longer functional. However, the sockets and USB ports are powered. If the surge protection function is necessary for you, you must in this case change the multi-outlet extension.
  • 1 flush socket for temporary connections (PC charger, portable video games, etc.).
  • Storage space for cable management. It is possible to tie the cables.
Recommendation / Restriction
  • Indoor use

The product's benefits

Installation
  • Multi-outlet extension with several installation possibilities.
Usage
  • 2 installation possibilities:- product placed in the TV cabinet- fixed product
Avantages
  • Product designed for a perfect integration in TV corner.
  • 7 sockets are hidden by an aluminium cover to store the cables of the TV corner. 1 accessible flush socket.
  • A unique product on market.

Technical characteristics

Housing shape Rectangular
Number of socket outlets with protective contact CEE 7/3 (type F) 8
Number of socket outlets with protective contact CEE 7/5 (type E) 0
Number of socket outlets CEE 7/16 (EURO) 0
Number of cold device socket outlets 0
Number of socket outlets Danish standard (earthing pin, type K) 0
Number of socket outlets Italian standard type Bipasso 0
Number of socket outlets Italian standard type P11 0
Number of socket outlets Italian standard type P17 0
Number of socket outlets Italian standard type P30 0
Number of NEMA-outlets 0
Number of socket outlets Swiss standard type 13 0
Number of socket outlets Swiss standard type 15 0
Number of socket outlets Swiss standard type 23 0
Number of socket outlets Swiss standard type 25 0
Number of universal multi standard sockets 0
With enhanced contact protection Yes
With on/off switch Yes
Residual current circuit breaker (RCCB) No
Mains filter No
Number of other socket outlets 0
Number of USB connections 0
With miniature fuse No
Overvoltage protection Yes
Nominal current 16 A
Max. connected load 3680 W
Core cross section 1.5 mm²
With cover Yes
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Black
RAL-number (similar) 9017
Transparent No
Degree of protection (IP) IP20
degree of impact strength (IK) IK04
Type of mains connection Plug with protective contact CEE 7/4 (type F)
Length of power cord 2 m
Type of plug Angled
Rotated central insert Yes
NEMA designation None
Operating / setting temperature (Min-Max) -5-35 °C
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Width 210 mm
Height 232 mm
Depth 56 mm
Storage temperature (Min-Max) -20-70 °C
Voltage type AC
Nominal voltage (Min-Max) 220-250 V
Mandatory neutral Yes
Connection type Not applicable
Mounting method Surface mounted
Connected object No
