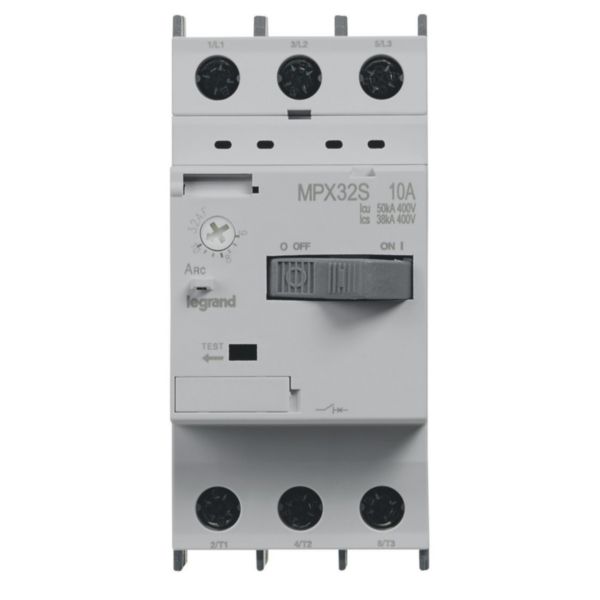

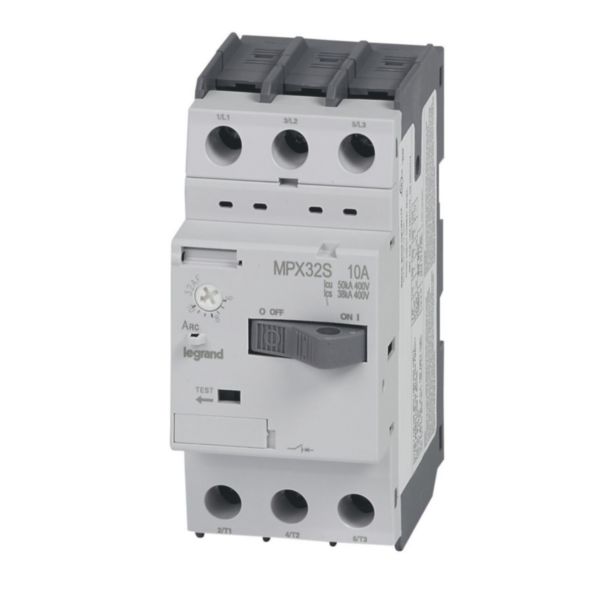

Motor protection circuit breaker MPX3 32S 6-10A 50KA

MPX³ LEGRAND

Motor protection circuit breaker MPX3 32S 6-10A 50KA

REF. 417310 EAN. 3414970395238
You can only compare 4 products, you must remove 1 to add this one

Technical characteristics

Overload release current setting 6-10 A
Adjustment range undelayed short-circuit release 130-130 A
With thermal overload protection Yes
Phase failure sensitive No
Switch off technique Thermomagnetic
Rated operating voltage 220-690 V
Rated permanent current Iu 10 A
Rated operation power at AC-3, 230 V 2.2 kW
Rated operation power at AC-3, 400 V 3.7 kW
Type of electrical connection of main circuit Frame clamp
Type of control element Rocker lever
Device construction Built-in device fixed built-in technique
With integrated auxiliary switch Yes
With integrated under voltage release Yes
Number of poles 3
Rated short-circuit breaking capacity lcu at 400 V, AC 50 kA
Degree of protection (IP) IP20
Height 94 mm
Width 45 mm
Depth 75 mm
