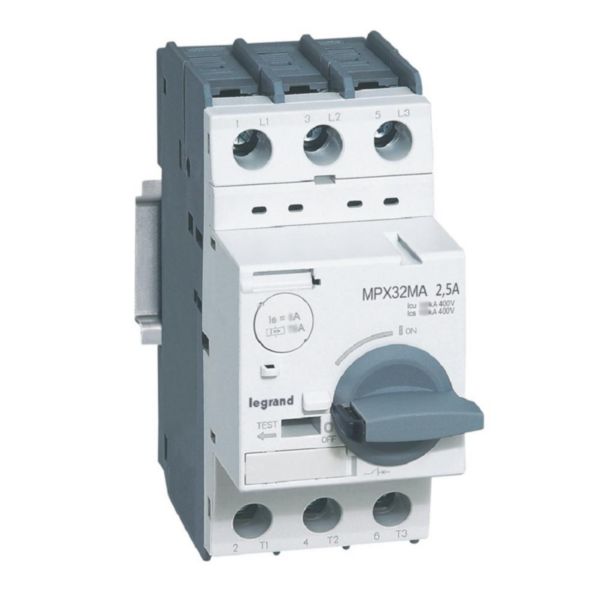

Name: Motor protection circuit breaker MPX3 32MA 2.5A 100KA
SKU: 417346

Motor protection circuit breaker MPX3 32MA 2.5A 100KA

MPX³ LEGRAND

Motor protection circuit breaker MPX3 32MA 2.5A 100KA

REF. 417346 EAN. 3414970395795

Compare You can only compare 4 products, you must remove 1 to add this one

For the protection of 3 - ph motors 0,75kW / 415V
Icu = 100kA / 415V Ics = 100kA / 415V
Screw terminals capacity : 1mm² to 10mm² / 2 x 1mm² to 6mm²
Compatible with MPX3 auxiliaries
The device complies with substance-restriction requirements and has been designed in an environmentally conscious process.

Product specially designed for tertiary and industrial installations. Recommended for the protection of 3-ph motors 0,75kW / 415V. Read the instructions before installing this product. Use only Legrand branded accessories.

Possible fixing on 35 mm "top hat" mounting rail (IEC 60715). Reduced size to optimize the space available in the cabinet.

Adjustment range undelayed short-circuit release	32.5-32.5 A
With thermal overload protection	No
Phase failure sensitive	No
Switch off technique	Magnetic
Rated operating voltage	220-690 V
Rated permanent current Iu	2.5 A
Rated operation power at AC-3, 230 V	0.37 kW
Rated operation power at AC-3, 400 V	0.75 kW
Type of electrical connection of main circuit	Frame clamp
Type of control element	Turn button

Device construction	Built-in device fixed built-in technique
With integrated auxiliary switch	Yes
With integrated under voltage release	Yes
Number of poles	3
Rated short-circuit breaking capacity Icu at 400 V, AC	100 kA
Degree of protection (IP)	IP20
Height	94 mm
Width	45 mm
Depth	99.6 mm
