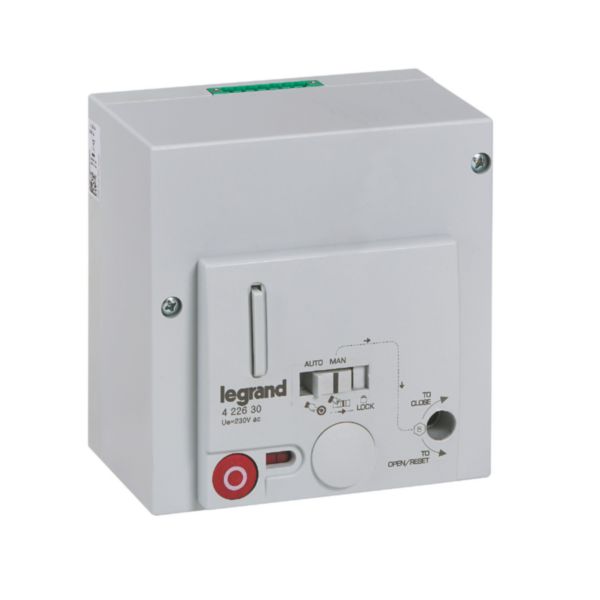

Motor operator for DPX3 630 breakers+customer assembled+direct action type+front installation+230V ac available voltage

Name: Motor operator for DPX3 630 breakers+customer assembled+direct action type+front installation+230V ac available voltage
SKU: 422630

DPX³ 630 LEGRAND

REF. 422630 EAN. 3414971331778

Compare You can only compare 4 products, you must remove 1 to add this one

Motor operator with 230V ac input voltage
Pick - up consumption of 240W for opening and of 200W for closing operation. Hold consumption of 80W for opening and of 120W for closing operation.
Operating time (in electric operation) of 0,45 sec. for opening and for 0,55 sec. for closing operation

Motor opertator for general purpose applications, when no specific need of quickness on closing step is required

Easy to use. Eqipped with manual TRIP/Opening push button. Presence of a mode selector to choose automatic/manual operation and locking position Presence of breaker contact status indicator (RED if closed and GREEN if opened). Presence of a padlock in open position slider Manual Rearm/Opening and Closing

Type of switch drive	Motor drive
Rated control supply voltage AC 50 Hz	195.5-253 V
Rated control supply voltage AC 60 Hz	195.5-253 V
Voltage type for actuating	DC
Width	140 mm
Height	142 mm
Depth	96 mm

Degree of protection (IP)	IP30
Operating / setting temperature	-5-70 °C
Storage temperature	-40-85 °C
Voltage type	AC
Frequency	50-60 Hz
Halogen free	Yes
