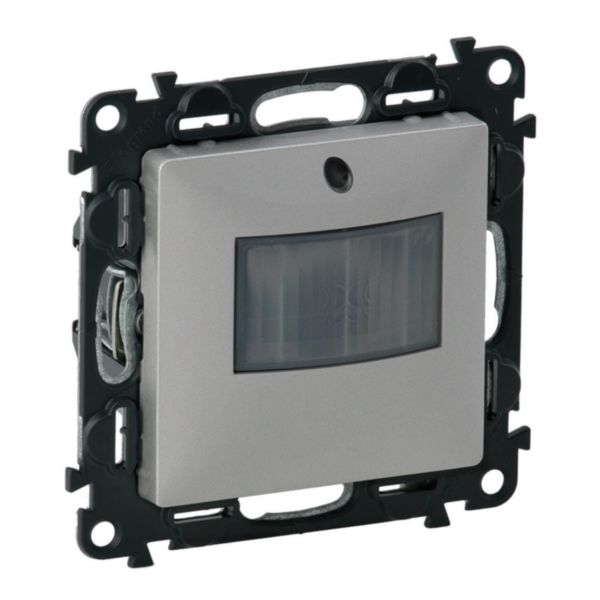

Motion sensor without neutral Valena Life - with cover plate - aluminium

Name: Motion sensor without neutral Valena Life - with cover plate - aluminium
SKU: 752370

Valena Life Legrand

REF. 752370 EAN. 3414970463029

Compare You can only compare 4 products, you must remove 1 to add this one

Model	Movement sensor
Constant light control	Yes
HVAC-control	No
Forced switch off	Yes
Animal zone	No
Creep-under protection	No
Background monitoring	No
Networkable	No
Optimum mounting height	1.2 m
Staircase light controller	Yes
Bridging switch	No
Max. reach sideways	6 m
Max. reach frontally	8 m
Diameter reach on floor	6 m
Suitable for wireless transmission	No
Remote operation	No
Supplied remote control	No
Response value sensitivity adjustable	No
Response value luminosity adjustable	Yes
With signal unit	Yes
Teach-function for response value luminosity	No
Dim function with dimmer basic element	No
Mounting method	Flush-mounted
Connection type	Screwed terminal
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Surface protection	Untreated
Surface finishing	Glossy
Antimicrobial treatment	No
Colour	Aluminium
RAL-number (similar)	7040

Transparent	No
Degree of protection (IP)	IP40
degree of impact strength (IK)	IK04
Voltage type	AC
Frequency (Min-Max)	47-63 Hz
Nominal voltage (Min-Max)	230-230 V
Min. switch-on time	10 s
Max. duty cycle	10 min
Detection angle horizontal (Min-Max)	120-120 °
Response value luminosity (Min-Max)	5-1275 lx
Max. switching power	250 W
Max. starting current	0.4 A
Control current	0.4 mA
Substation input	No
With alarm function	No
With acoustic sensor	No
Ambient temperature (Min-Max)	-5-45 °C
Width	74.7 mm
Height	74.7 mm
Depth	32.1 mm
Built-in depth	32.1 mm
With connection cable	No
Connection cable length	0 mm
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
Operating / setting temperature (Min-Max)	-5-45 °C
Storage temperature (Min-Max)	-20-70 °C
Terminals capacity (Min-Max)	2.5-2.5 mm²
Auto switch	Yes
