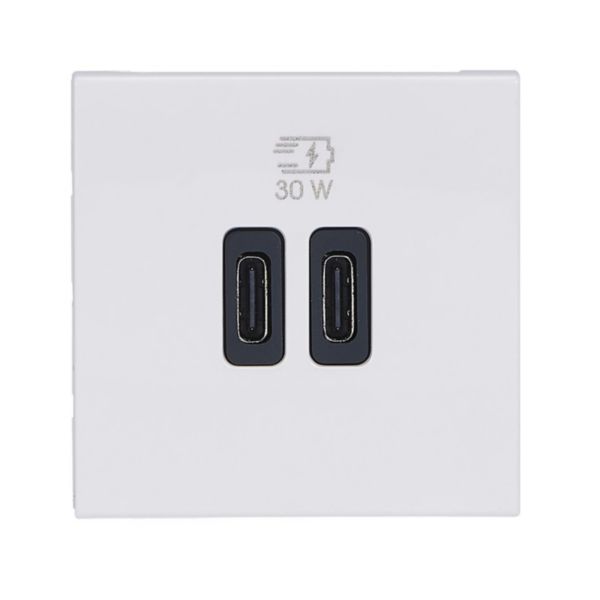

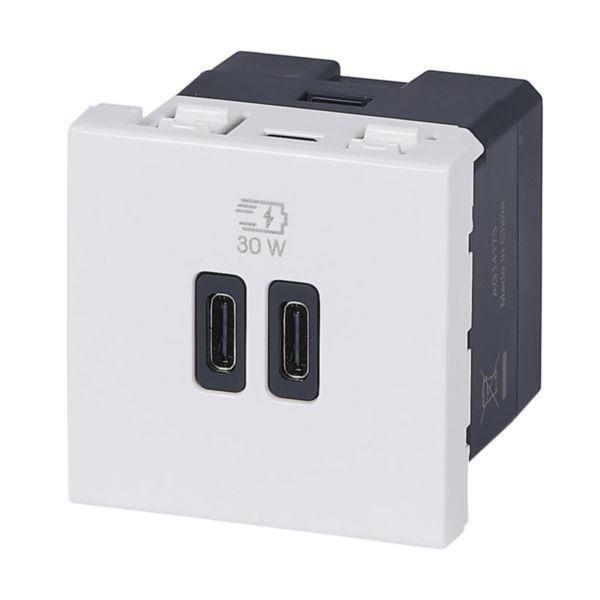

Mosaic™ - USB charger 2mod 30W C+C power delivery white

Name: Mosaic™ - USB charger 2mod 30W C+C power delivery white
SKU: 077631L

Mosaic™ LEGRAND

REF. 077631L EAN. 3414972513463

Compare You can only compare 4 products, you must remove 1 to add this one

Model	Other
Number of ports USB-A	0
Number of ports USB-C	2
Operating voltage	100-240 V
Frequency	50-60 Hz
Max. output current	3000 mA
Output voltage	5-20 V
Power consumption	0.063 W
Connection type	Screwed terminal
Mounting method	Flush-mounted
Colour	White
Device width	45 mm
Device height	45 mm
Device depth	45 mm
Min. depth of built-in installation box	40 mm
Suitable for degree of protection (IP)	IP40
degree of impact strength (IK)	IK04

Antimicrobial treatment	No
Wireless	No
Built-in depth	36.5 mm
Operating / setting temperature	5-40 °C
Storage temperature	-20-70 °C
Voltage type	AC
Power Delivery	Yes
USB Output Power	30
Supply current	1-1 A
Mandatory neutral	Yes
Terminal marking indication	Yes
Stress test conformity (1000V)	No
Halogen free	Yes
Number of terminals	2
Terminals capacity	1.5-2.5 mm²
Cable nature for connection	Flexible or rigid
Cable section	1.5-2.5 mm²
